CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

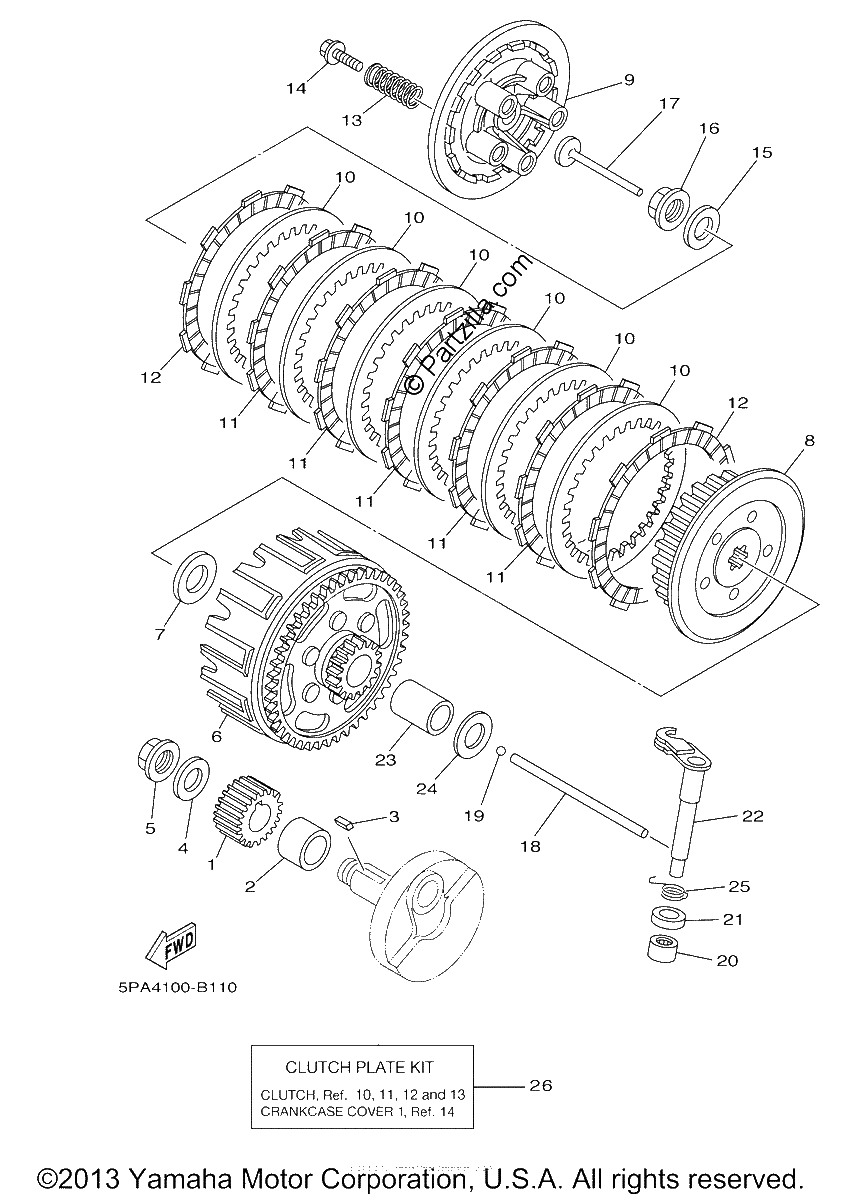

Diagrama de CLUTCH

Repuestos

#1
5PA-16111-00-00
GEAR, PRIMARY DRIVE
$85.44¢42 723
1
#2
90387-20488-00
COLLAR
$23.79¢11 897
1
#3
90282-05001-00
KEY, STRAIGHT (5MMX16MM)
$8.50¢4 249
1
#4
90208-12015-00
WASHER, CONICAL SPRING
$0.71¢357
1
#5
90179-12007-00
NUT
$6.88¢3 439
1
#6
5PA-16150-10-00
PRIMARY DRIVEN GEAR COMP.
$300.50¢150 248
1
#7
90201-17558-00
WASHER, PLATE
$8.43¢4 215
1
#8
5PA-16371-10-00
BOSS, CLUTCH
$98.15¢49 076
1
#9
2TK-16351-00-00
PLATE, PRESSURE 1
$40.01¢20 004
1
#10
131-16324-00-00
PLATE, CLUTCH 1
$20.78¢10 390
1
#11
4ES-16321-00-00
PLATE, FRICTION
$17.39¢8 694
1
#12
3XP-16321-00-00
PLATE, FRICTION
$18.95¢9 476
1
#13
90501-204A0-00
SPRING, COMPRESSION
$6.75¢3 375
1
#14
90119-05001-00
BOLT,WITH WASHER (replaces 90119-05827-00)
$3.05¢1 524
1
#15
90208-12015-00
WASHER, CONICAL SPRING
$0.71¢357
1
#16
90179-12007-00
NUT
$6.88¢3 439
1
#17
4ES-16356-00-00
ROD, PUSH 1
$23.62¢11 811
1
#18
5PA-16357-00-00
ROD, PUSH 2
$29.19¢14 593
1
#19
93503-16003-00
BALL
$2.30¢1 150
1
#20
93315-11206-00
BEARING
$34.79¢17 394
1
#21
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#22
4ES-16381-00-00
PUSH LEVER COMP.
$65.25¢32 625
1
#23
5PA-16181-00-00
SPACER 1
$26.32¢13 162
1
#24
90201-171G6-00
WASHER, PLATE
$8.35¢4 174
1
#25
90508-14016-00
SPRING, TORSION
$3.22¢1 610
1
#26
5PA-W001G-00-00
CLUTCH PLATE KIT
$141.48¢70 742
1
