OIL CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

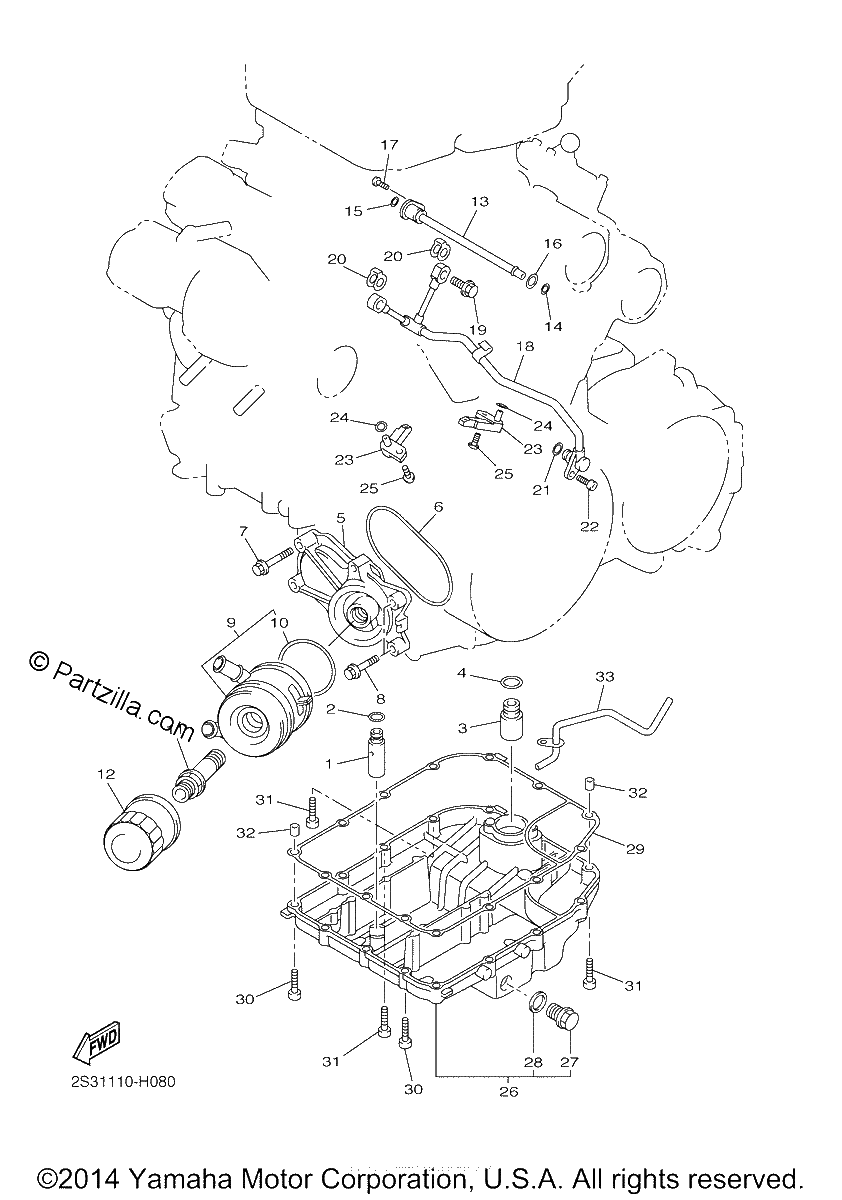

Diagrama de OIL CLEANER

Repuestos

#1
2C0-13490-00-00
RELIEF VALVE ASSY
$117.76¢58 881
1
#2
93210-15566-00
O-RING
$6.88¢3 438
1
#3
2S3-15189-00-00
PLUG
$29.09¢14 544
1
#4
93210-15566-00
O-RING
$6.88¢3 438
1
#5
2S3-13461-00-00
PLATE, ADAPTOR
$143.90¢71 950
1
#6
2S3-13016-00-00
O-Ring
$14.78¢7 388
1
#7
95817-06040-00
BOLT,FLANGE (replaces 95812-06040-00)
$5.41¢2 706
1
#8
95812-06030-00
BOLT, FLANGE
$1.98¢988
1
#9
2S3-13470-00-00
OIL COOLER ASSY
$493.71¢246 856
1
#10
5JW-13473-00-00
O-Ring
$43.34¢21 669
1
#11
90401-20006-00
BOLT, union
$61.63¢30 813
1
#12
5GH-13440-00-00
ELEMENT ASSY, OIL CLEANER
$17.06¢8 531
1
#13
2S3-13171-00-00
PIPE, DELIVERY 2
$64.85¢32 425
1
#14
93210-06667-00
O-RING
$6.91¢3 456
1
#15
93210-09525-00
O-Ring
$5.61¢2 806
1
#16
93210-12010-00
O-Ring
$8.03¢4 013
1
#17
90149-06156-00
SCREW
$7.56¢3 781
1
#18
2S3-13181-00-00
PIPE, DELIVERY 3
$302.82¢151 413
1
#19
90401-10106-00
BOLT,UNION
$2.99¢1 494
1
#20
2S3-13475-00-00
Gasket
$9.30¢4 650
1
#21
93210-10001-00
O-RING
$1.54¢769
1
#22
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#23
2S3-15155-00-00
NOZZLE 3
$59.45¢29 725
1
#24
93210-04001-00
O-Ring
$2.61¢1 306
1
#25
90149-06081-00
SCREW
$7.34¢3 669
1
#26
2S3-13400-00-00
STRAINER COVER ASSY
$329.66¢164 831
1
#27
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#28
214-11198-01-00
GASKET
$3.23¢1 613
1
#29
2S3-13414-00-00
GASKET, STRAINER COV
$35.85¢17 925
1
#30
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
1
#31
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
1
#32
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#33
2S3-13191-00-00
PIPE, DELIVERY 4
$18.30¢9 150
1
