FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

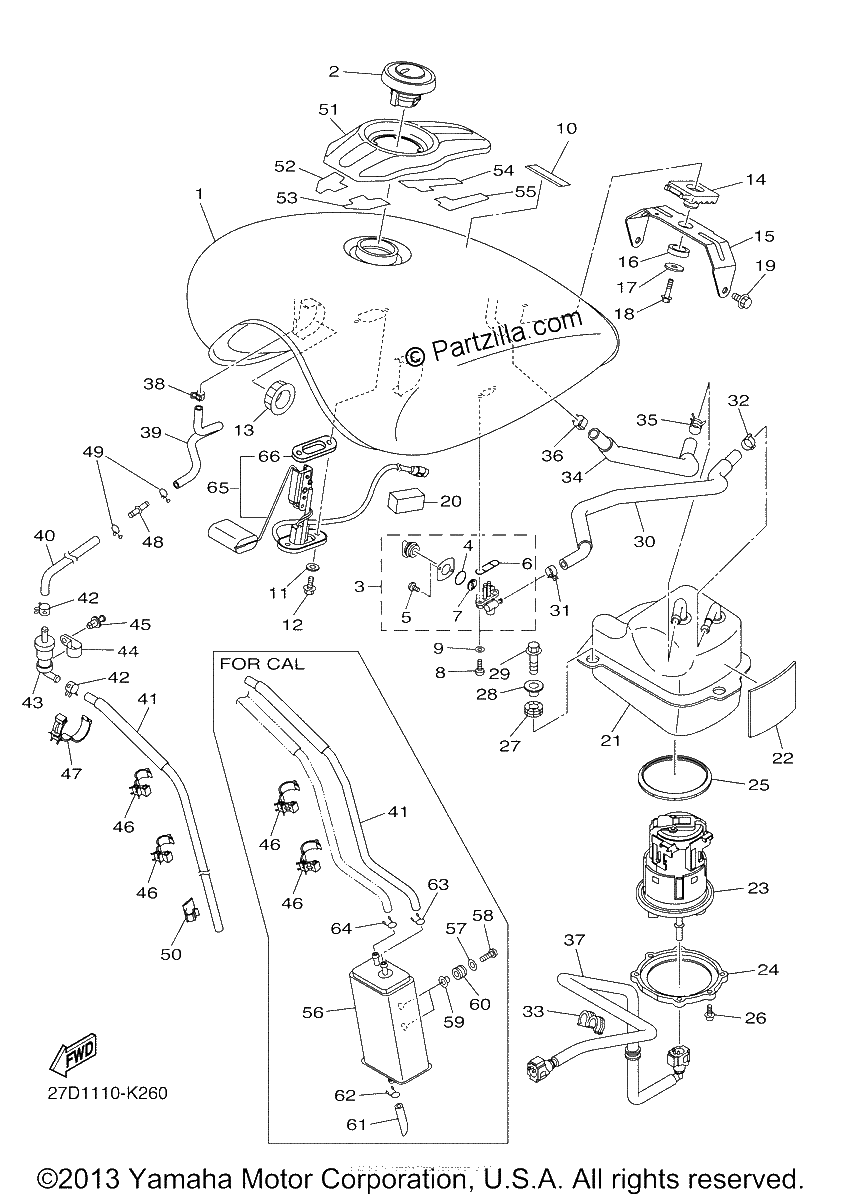

Diagrama de FUEL TANK

Repuestos

#0
27D-2486G-00-00
PIPE 3 | FOR U49
$52.98¢26 488
1
#0
90464-15192-00
CLAMP
$7.34¢3 669
1
#0
27D-Y2410-00-03
FUEL TANK COMP. | UR FOR DYRC4
$1919.93¢959 963
1
#1
27D-Y2410-00-01
FUEL TANK COMP. | UR FOR VPBC5
No Disponible
1
#2
4NK-24602-20-00
CAP ASSY
$136.76¢68 381
1
#3
4JT-24500-20-00
FUEL COCK ASSY 1
$114.45¢57 225
1
#4
3AJ-24534-01-00
SEAL, COCK
$11.10¢5 550
1
#5
98580-03008-00
SCREW, PAN HEAD
$2.73¢1 363
1
#6
4X8-24512-00-00
O-RING
$7.97¢3 988
1
#7
3AC-24523-00-00
VALVE PACKING
$13.81¢6 906
1
#8
90149-06108-00
SCREW
$1.14¢569
1
#9
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#10
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#11
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#12
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#13
4H7-24181-00-00
DAMPER, LOCATING 1
$6.52¢3 262
1
#14
1D7-24182-00-00
DAMPER, LOCATING 2
$20.91¢10 456
1
#15
27D-2413Y-00-00
BRACKET, TANK FITTING
$28.05¢14 025
1
#16
4TR-24183-00-00
DAMPER, LOCATING 3
$7.91¢3 956
1
#17
90387-06177-00
COLLAR
$10.34¢5 169
1
#18
95812-06030-00
BOLT, FLANGE
$1.98¢988
1
#19
95817-08012-00
BOLT, FLANGE
$4.72¢2 363
1
#20
2YK-21747-00-00
DAMPER
$4.11¢2 056
1
#21
3D8-244A0-00-00
PUMP CASE COMP.
$460.63¢230 313
1
#22
3D8-2414J-00-00
DAMPER, PLATE 2
$2.86¢1 431
1
#23
3D8-13907-01-00
FUEL PUMP COMP.
$647.43¢323 713
1
#24
3D8-24491-10-00
BRACKET, FUEL PUMP
$61.50¢30 750
1
#25
19B-24486-01-00
O-RING
$44.47¢22 237
1
#26
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#27
3D8-24185-00-00
DAMPER, LOCATING 5
$3.83¢1 913
1
#28
90387-062U9-00
COLLAR
$3.86¢1 931
1
#29
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#30
27D-24311-00-00
PIPE, FUEL 1
$105.60¢52 800
1
#31
90467-12004-00
CLIP
$7.91¢3 956
1
#32
90467-130A1-00
CLIP
$5.78¢2 888
1
#33
90464-19001-00
CLAMP
$1.96¢981
1
#34
27D-24312-00-00
PIPE 2
$88.38¢44 188
1
#35
90467-160A2-00
CLIP
$5.19¢2 594
1
#36
5PX-2411M-00-00
CLIP
$10.54¢5 269
1
#37
3D8-13971-00-00
PIPE, FUEL 1
$154.77¢77 387
1
#38
90467-090A5-00
CLIP
$1.65¢825
1
#39
27D-24324-00-00
PIPE 13
$31.43¢15 713
1
#39
27D-24329-00-00
SEAL
$13.75¢6 875
1
#40
27D-24325-00-00
PIPE 14
$28.01¢14 006
1
#41
27D-2486A-00-00
PIPE 1 | FOR CALIFORNIA
$43.98¢21 988
1
#42
90467-09001-00
CLIP
$2.16¢1 081
1
#43
5RB-24180-00-00
ROLL OVER VALVE ASSY
$122.94¢61 469
1
#44
90464-15014-00
Clamp
$2.35¢1 175
1
#45
90269-05005-00
RIVET
$3.57¢1 787
1
#46
90464-20191-00
Clamp
$8.76¢4 381
1
#47
90464-30252-00
CLAMP
$3.23¢1 613
1
#48
4XY-14568-00-00
JOINT
$7.08¢3 538
1
#49
90467-090A2-00
Clip
$2.97¢1 487
1
#50
90464-10012-00
CLAMP
No Disponible
1
#51
27D-241B1-00-00
COVER, TANK
$127.88¢63 938
1
#52
27D-241A7-00-00
SEAL 7
$13.35¢6 675
1
#54
27D-241A8-00-00
SEAL 8
$17.50¢8 750
1
#55
27D-2414E-00-00
SEAL 2
$17.57¢8 788
1
#56
5PX-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$353.90¢176 950
1
#57
90201-06023-00
WASHER, PLATE | FOR CALIFORNIA
$4.49¢2 244
1
#58
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$6.47¢3 238
1
#59
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.76¢3 381
1
#60
90480-13163-00
GROMMET | FOR CALIFORNIA
$7.08¢3 538
1
#61
27D-24322-00-00
PIPE 11 | FOR CALIFORNIA
$2.91¢1 456
1
#62
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#63
90467-090A2-00
Clip
$2.97¢1 487
1
#64
90467-090A2-00
Clip
$2.97¢1 487
1
#65
27D-85752-10-00
SENDER UNIT ASSY, FUEL METER
$129.96¢64 981
1
#66
3D8-85753-00-00
GASKET, SENDER UNIT
$32.09¢16 044
1
