REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

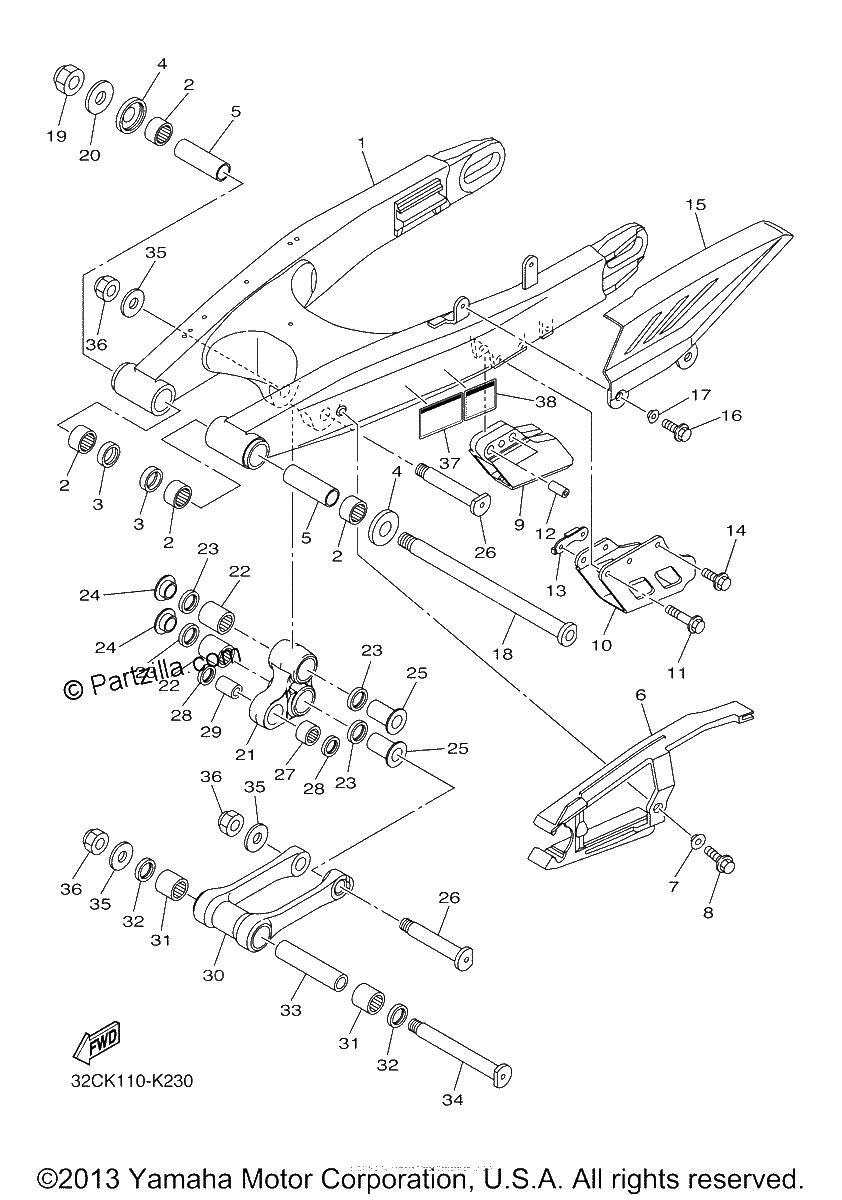

Diagrama de REAR ARM

Repuestos

#1
3D7-22110-00-00
REAR ARM COMP.
$1327.09¢663 544
1
#2
93317-22262-00
BEARING
$37.40¢18 699
1
#3
93106-22019-00
OIL SEAL,DD-TYPE
$10.23¢5 118
1
#4
3D7-22128-00-00
COVER, THRUST 1
$20.77¢10 385
1
#5
90387-18013-00
COLLAR
$23.45¢11 724
1
#6
3D7-22151-00-00
SEAL, GUARD
$88.73¢44 367
1
#7
90387-06500-00
COLLAR
$7.37¢3 686
1
#8
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#9
4RR-22199-00-00
SUPPORT, CHAIN
$33.92¢16 963
1
#10
4RR-22128-01-00
COVER, THRUST 1
$67.47¢33 735
1
#11
90105-06162-00
BOLT, FLANGE
$2.58¢1 288
1
#12
90387-060N3-00
COLLAR
$9.90¢4 951
1
#13
4RR-22143-00-00
NUT
$15.16¢7 578
1
#14
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#15
5XT-22311-00-00
CASE, CHAIN
$22.53¢11 264
1
#16
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#17
90387-06184-00
COLLAR
$4.98¢2 490
1
#18
3D7-22141-00-00
SHAFT, PIVOT
$49.31¢24 656
1
#19
90185-16002-00
NUT, SELF-LOCKING
$16.56¢8 280
1
#20
90201-16018-00
WASHER, plate
$7.35¢3 674
1
#21
3D7-2217A-00-00
ARM, RELAY
$134.18¢67 091
1
#22
93315-32056-00
BEARING
$28.80¢14 398
1
#23
93109-20076-00
OIL SEAL
$14.89¢7 446
1
#24
90387-16005-00
COLLAR
$28.04¢14 018
1
#25
90387-16007-00
COLLAR
$30.67¢15 335
1
#26
1C3-22122-00-00
SHAFT 2
$25.53¢12 765
1
#27
93315-31758-00
BEARING
$38.04¢19 021
1
#28
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#29
90387-1012A-00
COLLAR
$19.48¢9 741
1
#30
3D7-2217F-00-00
ROD, CONNECTING 1
$224.70¢112 349
1
#31
93315-32165-00
BEARING
$34.79¢17 394
1
#32
93109-21001-00
O-Ring
$10.48¢5 238
1
#33
90387-14012-00
COLLAR
$28.89¢14 444
1
#34
3D7-22121-00-00
SHAFT 1
$31.68¢15 841
1
#35
90201-14020-00
WASHER, plate
$5.84¢2 921
1
#36
90185-14010-00
NUT, SELF-LOCKING
$12.94¢6 469
1
#37
32C-21668-00-00
LABEL, TIRE
$6.52¢3 260
1
#38
32C-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$8.35¢4 174
1
