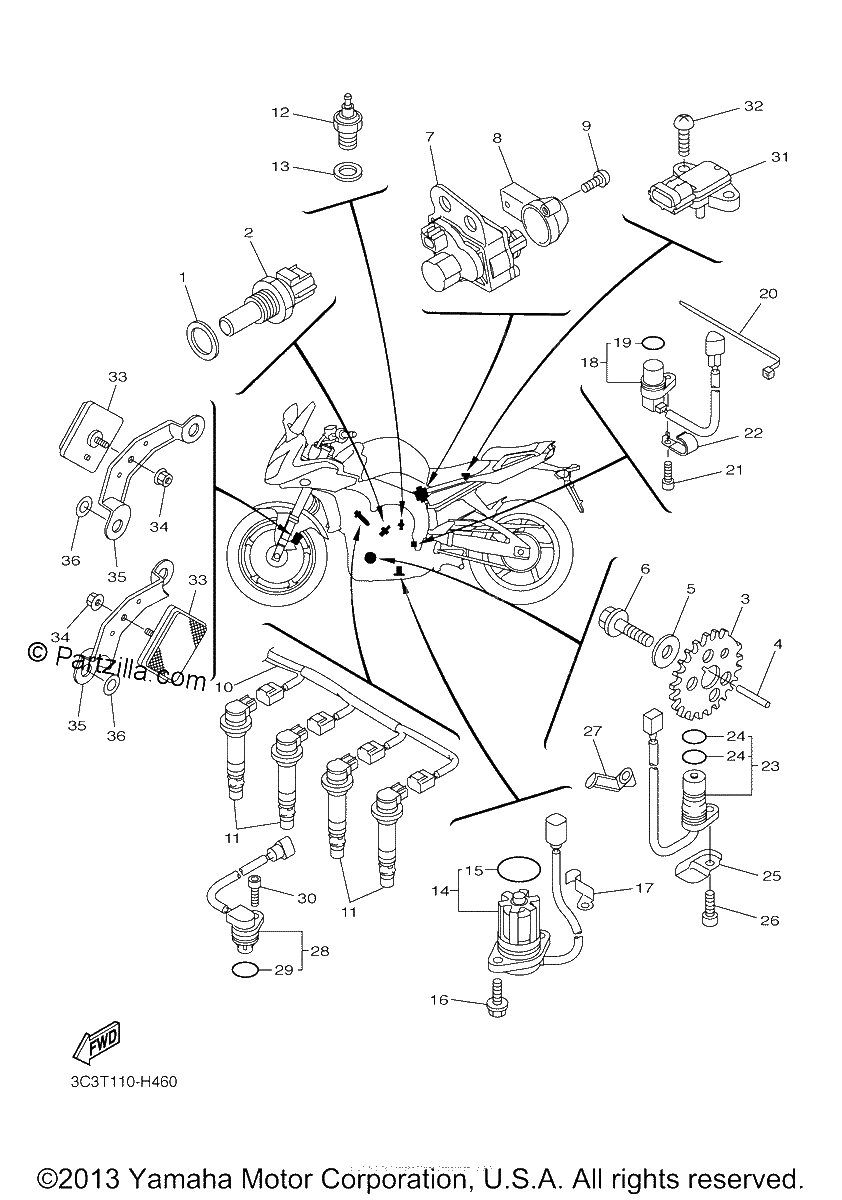

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WASHER, PLATE
$8.16¢4 081
#2
THERMOSENSOR ASSY
$106.45¢53 225
#3
ROTOR
$63.92¢31 963
#4
KEY, STRAIGHT
$11.94¢5 969
#5
WASHER, PLATE
$7.90¢3 950
#6
BOLT, FLANGE
$11.95¢5 975
#7
SERVO MOTOR ASSY
$368.61¢184 306
#8
COVER, SERVO MOTOR
$12.09¢6 044
#9
SCREW,TAPPING (replaces 97702-50514-00)
$4.56¢2 281
#10
WIRE, SUB LEAD
$156.48¢78 238
#11
IGNITION COIL ASSY
$178.74¢89 369
#12
NEUTRAL SWITCH ASSY
$62.85¢31 425
#13
Gasket
$5.66¢2 831
#14
OIL LEVEL GAUGE ASSY
$174.95¢87 475
#15
O-RING
$13.04¢6 519
#16
BOLT, FLANGE
$3.96¢1 981
#17
CLAMP
$6.04¢3 019
#18
SENSOR, SPEED
$170.10¢85 050
#19
O-RING
$5.15¢2 575
#20
CLAMP
$19.68¢9 838
#21
BOLT
$1.46¢731
#22
CLAMP
$7.06¢3 531
#23
PICK-UP ASSY
$157.75¢78 875
#24
O-RING 1
$7.08¢3 538
#25
PLATE
$5.88¢2 938
#26
BOLT
$1.46¢731
#27
CLAMP
$6.40¢3 200
#28
SENSOR, CAM POSITION
$151.31¢75 656
#29
O-RING
$5.15¢2 575
#30
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#31
SENSOR, PRESSURE
$203.69¢101 844
#32
SCREW, TAPPING
$7.94¢3 969
#33
FRT.REFLECTOR ASSY (replaces 20G-85110-00-00)
$25.65¢12 825
#34
NUT, FLANGE
$7.35¢3 675
#35
BRACKET, REFLECTOR 1
$46.06¢23 031
#36
WASHER, PLATE
$2.99¢1 494
