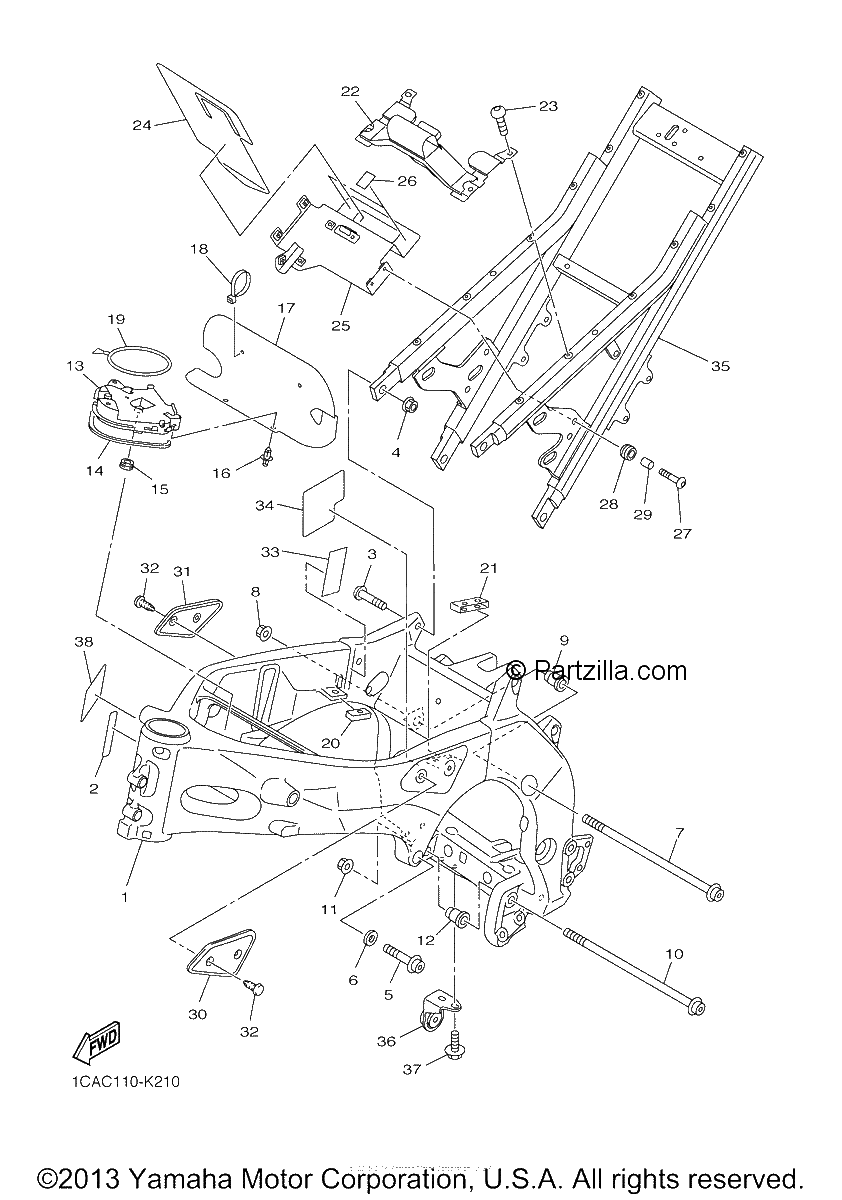

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FRAME COMP. | MBL2 FOR CAL
$2972.49¢1 486 244
#1
FRAME COMP. | MBL2 FOR U49
$2649.99¢1 324 994
#2
PROTECTOR, FRAME FR
$15.66¢7 831
#3
SCREW, PAN HEAD
$5.06¢2 531
#4
NUT,SELF-LOCKING (replaces 95604-10200-00)
$9.51¢4 756
#5
BOLT, FLANGE (SMALL HEAD)
$4.04¢2 019
#6
WASHER, PLATE
$9.39¢4 694
#7
BOLT, HEXAGON SOCKET HEAD
$22.19¢11 094
#8
NUT
$5.84¢2 919
#9
BOLT, ENGINE ADJUSTING
$22.63¢11 313
#10
BOLT, HEXAGON SOCKET HEAD
$22.19¢11 094
#11
NUT
$5.84¢2 919
#12
BOLT, ENGINE ADJUSTING
$22.63¢11 313
#13
COVER 3
$34.47¢17 237
#14
DAMPER
$1.95¢975
#15
GROMMET
No Disponible
#16
RIVET
$6.45¢3 225
#17
PROTECTOR
No Disponible
#18
BAND
$4.91¢2 456
#19
BAND, TOOL
$17.21¢8 606
#20
DAMPER, LOCATING 4
$4.60¢2 300
#21
DAMPER, LOCATING 5
$4.59¢2 294
#22
BRACKET, TANK FITTING
$128.30¢64 150
#23
SCREW
$2.91¢1 456
#24
DAMPER, LOCATING 3
$31.84¢15 919
#25
BRACKET, REGULATOR
$69.78¢34 888
#26
DAMPER 2
$3.79¢1 894
#27
BOLT, BUTTON HEAD
$7.48¢3 738
#28
GROMMET
$4.35¢2 175
#29
COLLAR
$8.24¢4 119
#30
COVER, SIDE 1
$20.56¢10 281
#31
COVER, SIDE 2
$36.59¢18 294
#32
RIVET
$7.61¢3 806
#33
DAMPER
$3.79¢1 894
#34
SEAL 1
$3.01¢1 506
#35
REAR FRAME COMP. | MBL2
$794.99¢397 494
#36
BRACKET, FOOTREST 2
No Disponible
#37
BOLT, FLANGE
$4.91¢2 456
#38
PLATE, ROUTING 2 | FOR CALIFORNIA
$5.06¢2 531
