TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

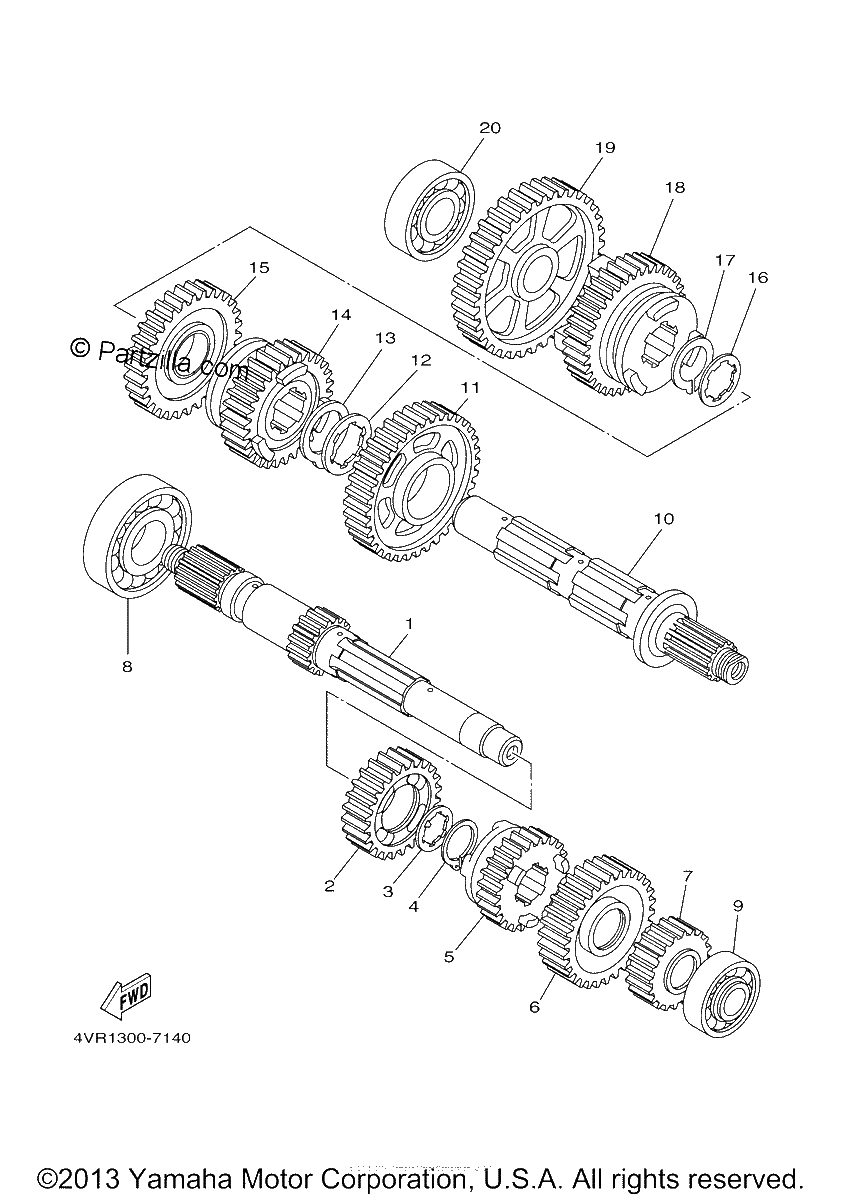

Diagrama de TRANSMISSION

Repuestos

#1
4VR-17411-00-00
AXLE, MAIN (14T)
$157.62¢78 810
1
#2
22U-17141-00-00
GEAR, 4TH PINION (24T)
$75.12¢37 559
1
#3
90209-22191-00
WASHER
$6.36¢3 180
1
#4
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#5
4VR-17131-00-00
GEAR, 3RD PINION (24T)
$101.91¢50 957
1
#6
4VR-17151-01-00
GEAR, 5TH PINION (30T)
$107.09¢53 544
1
#7
4KU-17121-00-00
GEAR, 2ND PINION (20T)
$61.21¢30 607
1
#8
93306-30525-00
BEARING
$59.40¢29 699
1
#9
93306-00426-00
BEARING
$40.11¢20 056
1
#10
22U-17402-00-00
DRIVE AXLE ASSY
$86.08¢43 039
1
#11
4KU-17221-00-00
GEAR, 2ND WHEEL (38T)
$93.63¢46 817
1
#12
90209-27192-00
WASHER
$7.68¢3 841
1
#13
93440-30077-00
CIRCLIP
$10.80¢5 399
1
#14
4VR-17251-01-00
GEAR, 5TH WHEEL (29T)
$86.11¢43 056
1
#15
4VR-17231-00-00
GEAR, 3RD WHEEL (35T)
$152.88¢76 440
1
#16
90209-22191-00
WASHER
$6.36¢3 180
1
#17
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#18
4TR-17241-00-00
GEAR, 4TH WHEEL (28T)
$77.82¢38 910
1
#19
22U-17211-00-00
GEAR, 1ST WHEEL (38T)
$111.35¢55 677
1
#20
93306-00427-00
BEARING
No Disponible
1
