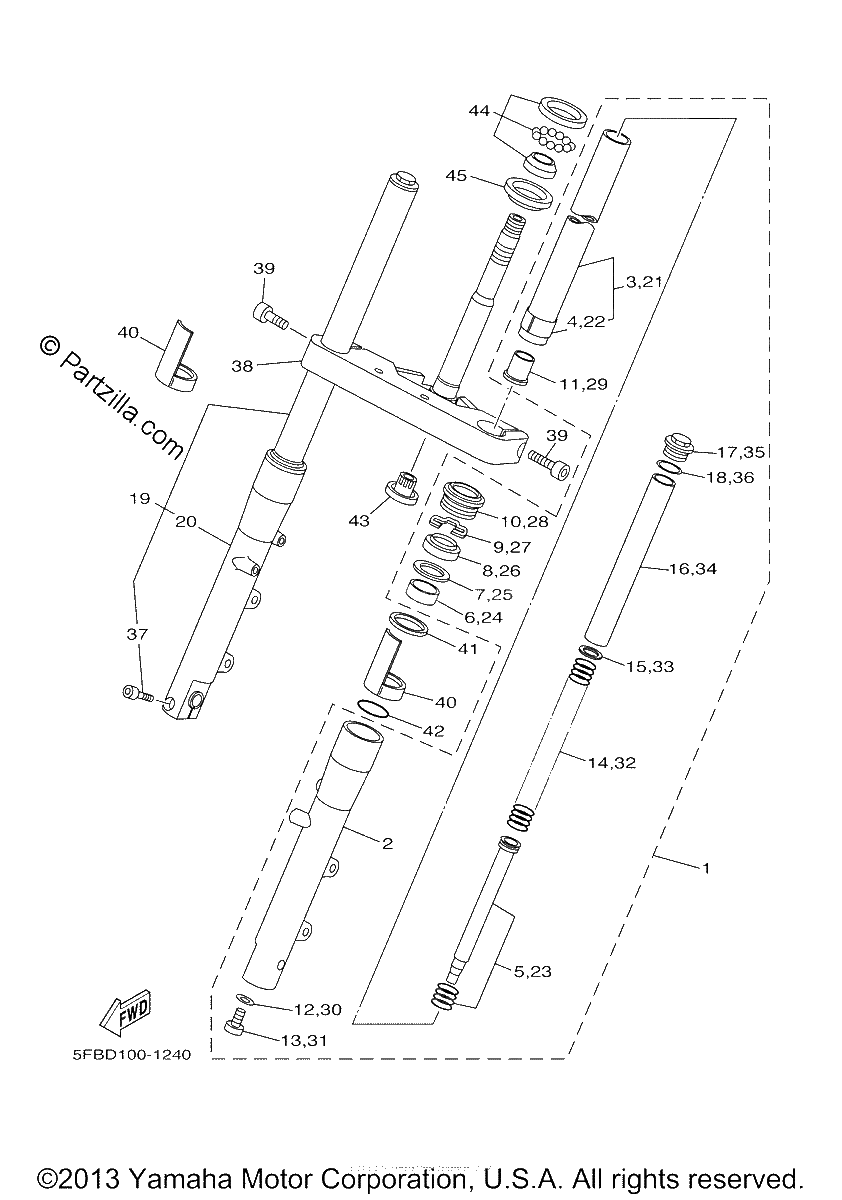

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$426.57¢213 288
#2
TUBE, OUTER (L.H)
$334.30¢167 150
#3
INNER TUBE COMP. 1
$224.07¢112 038
#4
PISTON,FRONT FORK
$23.21¢11 606
#5
CYLINDER COMP., FRONT FORK
$121.00¢60 500
#6
METAL,SLIDE 1
$34.88¢17 438
#7
WASHER, OIL SEAL
$26.29¢13 144
#8
OIL SEAL
$28.90¢14 450
#9
RING, SNAP
$7.88¢3 938
#10
SEAL, DUST
$23.21¢11 606
#11
SPINDLE, TAPER
$39.31¢19 656
#12
GASKET | (KYB)
$17.09¢8 544
#13
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#14
SPRING, FRONT FORK
$48.22¢24 112
#15
WASHER, SPRING UPPER
$7.91¢3 956
#16
SPACER
$16.99¢8 494
#17
BOLT, cap
$51.06¢25 531
#18
O-Ring
$7.65¢3 825
#19
FRONT FORK ASSY (R.H)
$535.95¢267 975
#20
TUBE, OUTER (R.H)
$335.93¢167 963
#21
INNER TUBE COMP. 1
$224.07¢112 038
#22
PISTON,FRONT FORK
$23.21¢11 606
#23
CYLINDER COMP., FRONT FORK
$121.00¢60 500
#24
METAL,SLIDE 1
$34.88¢17 438
#25
WASHER, OIL SEAL
$26.29¢13 144
#26
OIL SEAL
$28.90¢14 450
#27
RING, SNAP
$7.88¢3 938
#28
SEAL, DUST
$23.21¢11 606
#29
SPINDLE, TAPER
$39.31¢19 656
#30
GASKET | (KYB)
$17.09¢8 544
#31
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#32
SPRING, FRONT FORK
$48.22¢24 112
#33
WASHER, SPRING UPPER
$7.91¢3 956
#34
SPACER
$16.99¢8 494
#35
BOLT, cap
$51.06¢25 531
#36
O-Ring
$7.65¢3 825
#37
BOLT (3JP)
$6.25¢3 125
#38
UNDER BRACKET COMP.
$492.05¢246 025
#39
BOLT, HEXAGON SOCKET HEAD
$5.44¢2 719
#40
COVER
$101.85¢50 925
#41
STOPPER
$11.34¢5 669
#42
O-RING
$8.03¢4 013
#43
COVER, UNDER 1
$14.65¢7 325
#44
BEARING
$66.19¢33 094
#45
SEAL, STEERING
$25.53¢12 763
