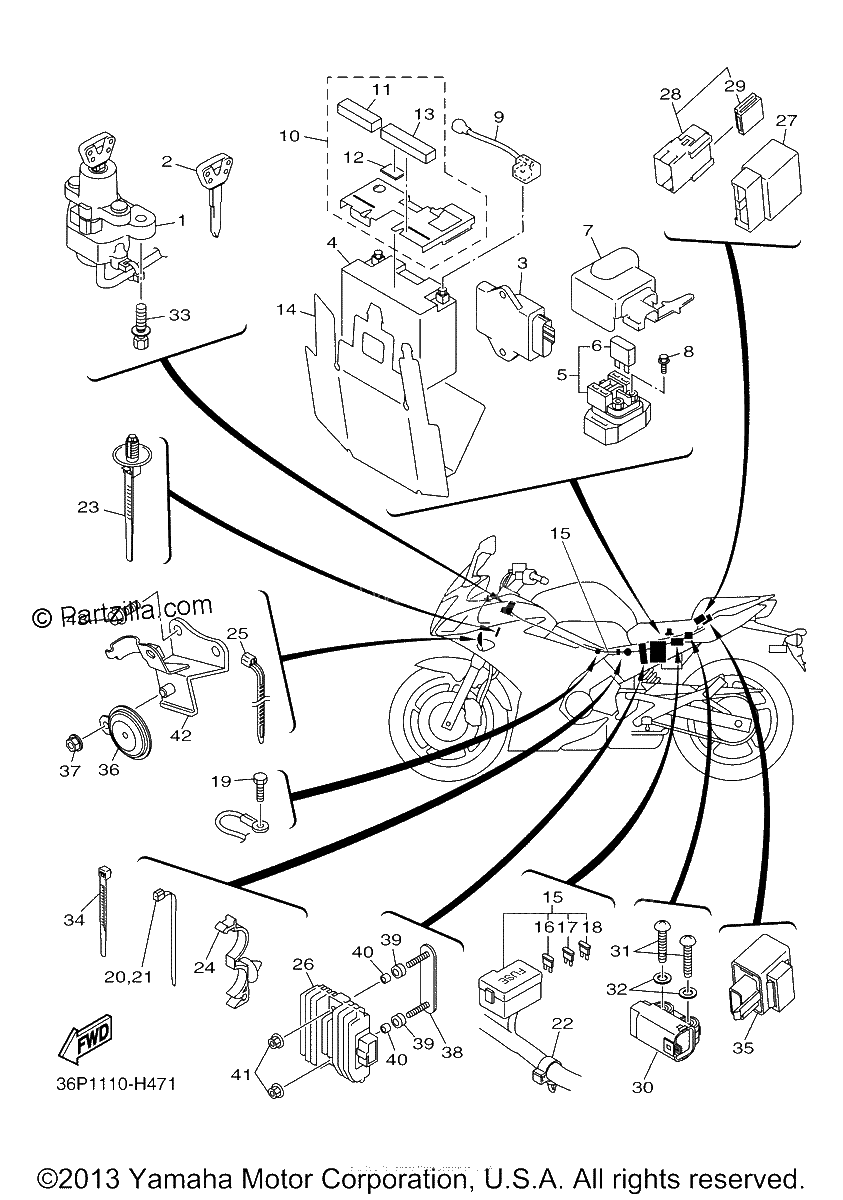

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAIN SWITCH STEERING LOCK
$203.90¢101 948
#2
BLANK KEY | AP
$26.78¢13 392
#3
ENGINE CONTROL UNIT ASSY
$738.29¢369 144
#4
GT12B4 GS BATTERY -
$110.42¢55 211
#5
STARTER RELAY ASSY
$119.57¢59 783
#6
FUSE (30A-BL)
$6.82¢3 410
#7
COVER, LEAD WIRE
$11.76¢5 882
#8
BOLT, FLANGE
$6.87¢3 433
#9
WIRE, PLUS LEAD
$18.03¢9 016
#10
BATTERY COVER ASSY
$28.23¢14 116
#11
DAMPER
$0.89¢443
#12
DAMPER
$1.28¢638
#13
DAMPER, PLATE
$2.44¢1 219
#14
SEAT, BATTERY
$60.88¢30 440
#15
WIRE HARNESS ASSY
$627.89¢313 944
#16
FUSE (15A)
$4.08¢2 041
#17
FUSE (20A-BL)
$7.01¢3 507
#18
FUSE (10A)
$7.13¢3 565
#19
BOLT
$2.05¢1 023
#20
CLAMP
$7.30¢3 651
#21
CLAMP
$7.30¢3 651
#22
CLAMP
$2.37¢1 185
#23
CLAMP
$3.90¢1 949
#24
CLAMP
$2.37¢1 185
#25
CLAMP
$3.04¢1 518
#26
RECTIFIER REGULATOR ASSY
$220.12¢110 061
#27
RELAY ASSY (5VK-40)
$65.04¢32 522
#28
RELAY ASSY (5JJ-20)
$54.10¢27 048
#29
HOLDER, RELAY
$8.71¢4 353
#30
SENSOR, LEAN ANGLE
$87.63¢43 815
#31
SCREW, ROUND TAPPING
$5.89¢2 944
#32
WASHER, PLATE
$1.66¢828
#33
BOLT
$6.76¢3 381
#34
Clamp
$2.14¢1 070
#35
FLASHER RELAY ASSY
$86.93¢43 464
#36
HORN
$58.98¢29 492
#37
NUT, FLANGE
$0.91¢454
#38
BRACKET, REAR STAY 2
$10.65¢5 325
#39
GROMMET
$5.23¢2 616
#40
COLLAR (J45)
$5.45¢2 726
#41
NUT, FLANGE
$2.24¢1 121
#42
BRACKET, HORN
$24.69¢12 345
#43
BOLT, FLANGE
$1.64¢822
