SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

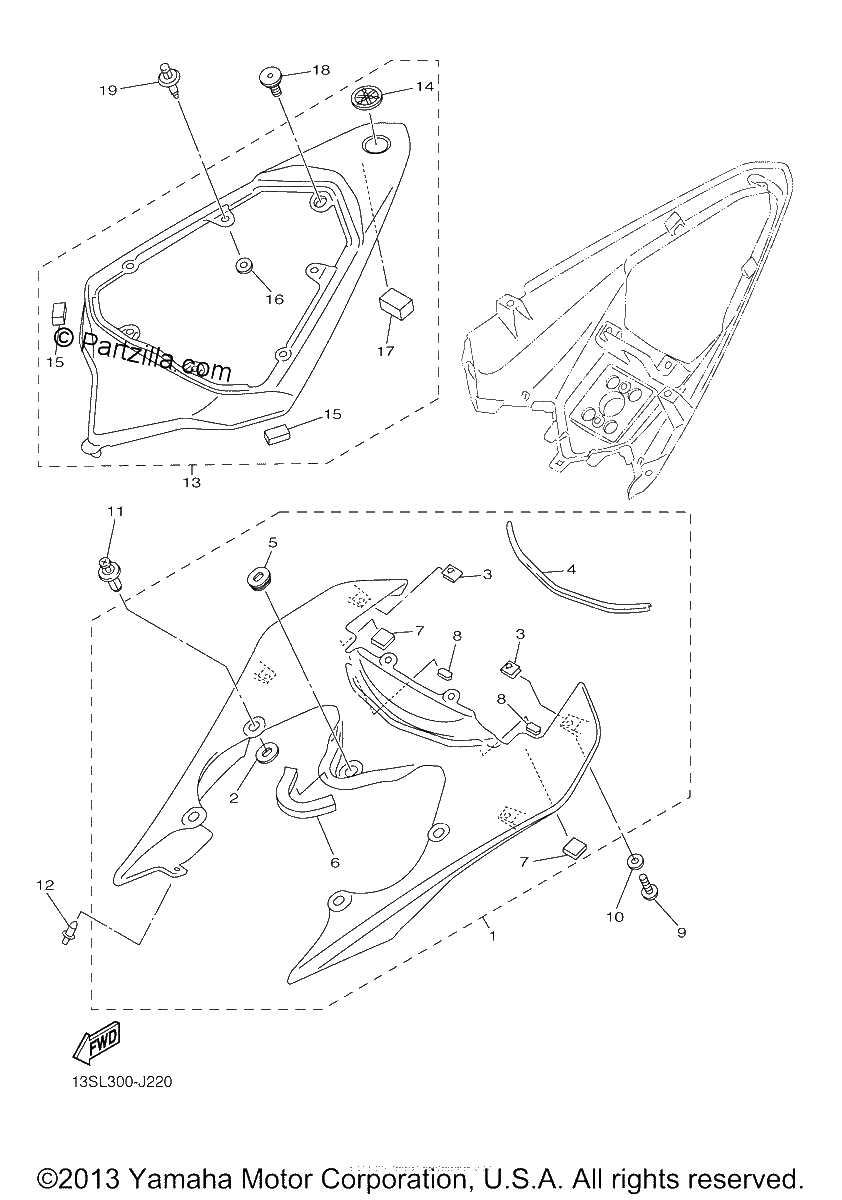

Diagrama de SIDE COVER

Repuestos

#1
13S-21710-00-P7
SIDE COVER ASSY 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$390.41¢195 206
1
#2
5PW-2174X-00-00
DAMPER
$7.08¢3 538
1
#3
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#4
13S-2171L-00-00
MOLE, SIDE COVER 1
$7.65¢3 825
1
#5
90480-01558-00
Grommet
$4.69¢2 344
1
#6
2C0-28237-00-00
DAMPER 3
$7.95¢3 975
1
#7
1UF-15379-00-00
SEAL
$7.72¢3 863
1
#8
5SL-28416-00-00
DAMPER 2
$7.95¢3 975
1
#9
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#10
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#11
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#12
90269-06008-00
RIVET
$8.80¢4 400
1
#13
13S-21720-00-P6
SIDE COVER ASSY 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$188.09¢94 044
1
#14
4KN-2836B-10-00
TUNING FORK MARK
$18.90¢9 450
1
#15
13S-21639-00-00
DAMPER 2
$7.95¢3 975
1
#16
5SL-84753-00-00
DAMPER
$6.45¢3 225
1
#17
1WG-2143A-00-00
CAP
$8.06¢4 031
1
#18
90109-06248-00
BOLT
$18.43¢9 213
1
#19
90269-06001-00
RIVET
$6.45¢3 225
1
