ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

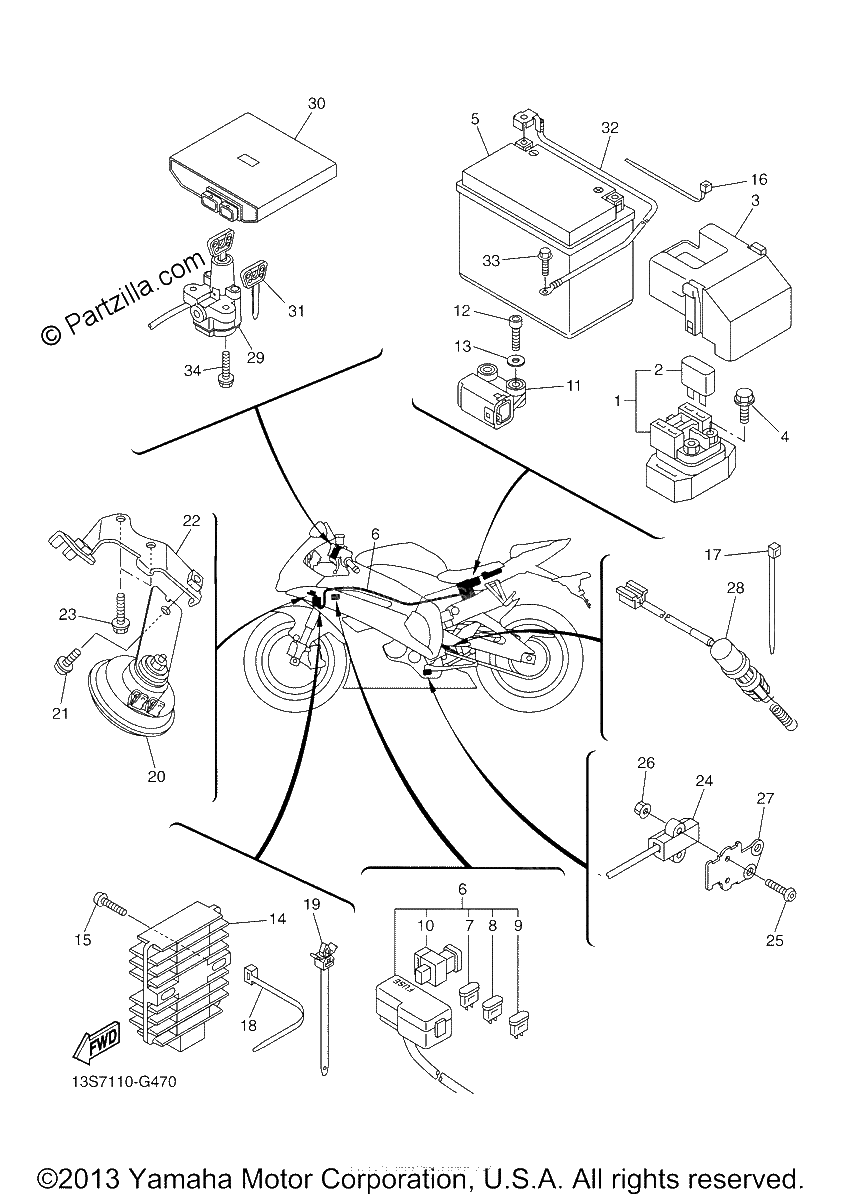

Diagrama de ELECTRICAL 2

Repuestos

#1
2C0-81940-00-00
STARTER RELAY ASSY
$147.04¢73 520
1
#2
36Y-82151-00-00
Fuse (15 Amp)
$4.45¢2 225
1
#3
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#4
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#5
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#6
13S-82590-10-00
WIRE HARNESS ASSY
$1011.99¢505 994
1
#7
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#8
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#9
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#10
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#11
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#12
91317-04025-00
bolt
$1.69¢845
1
#13
90201-042E0-00
WASHER,PLATE
$7.23¢3 617
1
#14
4XY-81960-00-00
RECTIFIER REGULATOR ASSY
$169.66¢84 830
1
#15
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#16
90465-15011-00
Clamp
$2.14¢1 070
1
#17
1UA-82591-00-00
BAND
$4.52¢2 260
1
#18
1UA-82591-00-00
BAND
$4.52¢2 260
1
#19
90464-10112-00
CLAMP
$6.76¢3 381
1
#20
4TH-83371-00-00
HORN
$46.98¢23 489
1
#21
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#22
13S-23377-00-00
BRACKET, HORN
$29.42¢14 708
1
#23
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#24
13S-82566-70-00
SWITCH, SIDE STAND
$120.81¢60 404
1
#25
92012-05025-00
BOLT, BUTTON HEAD
$3.68¢1 840
1
#26
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#27
2C0-27961-00-00
BRACKET, SENSOR 1
$33.56¢16 778
1
#28
13S-82530-00-00
STOP SWITCH ASSY
$45.70¢22 851
1
#29
2C0-82501-10-00
MAIN SWITCH STEERING
$195.76¢97 882
1
#30
13S-8591A-H0-00
ENGINE CONTROL UNIT
$2248.24¢1 124 119
1
#31
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#32
2C0-82116-00-00
WIRE, MINUS LEAD
$19.83¢9 913
1
#33
91380-06012-00
BOLT
$2.05¢1 023
1
#34
90109-08196-00
BOLT
$6.76¢3 381
1
