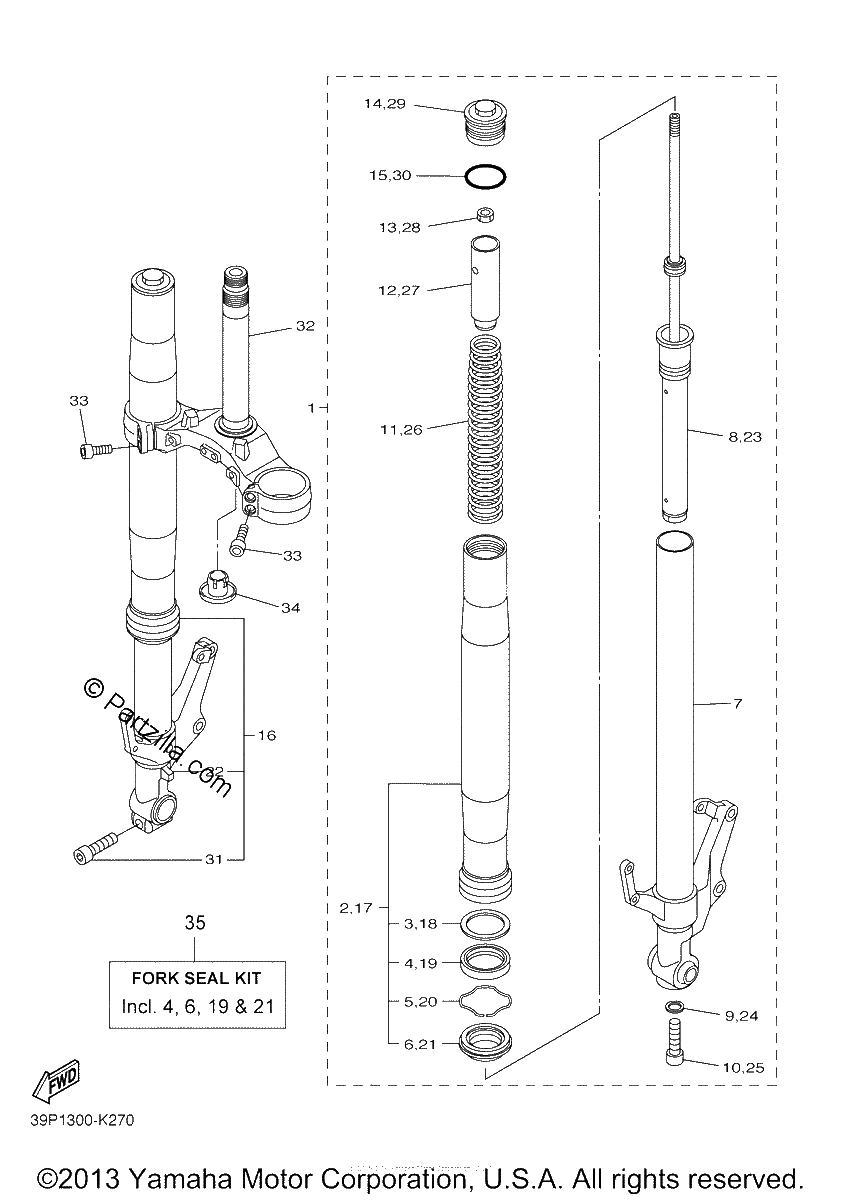

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1082.14¢541 069
#2
TUBE, OUTER
$692.29¢346 144
#3
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#4
OIL SEAL
$22.99¢11 494
#5
RING, SNAP | (KYB)
$9.49¢4 744
#6
SEAL, DUST
$22.10¢11 051
#7
INNER TUBE COMP.1
$434.79¢217 396
#8
CYLINDER COMP, FRONT FORK
$515.19¢257 594
#9
GASKET | (KYB)
$15.72¢7 860
#10
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#11
SPRING, FRONT FORK
$88.96¢44 482
#12
SPACER
$59.66¢29 831
#13
NUT
$7.28¢3 640
#14
BOLT, CAP
$259.50¢129 749
#15
O-RING
$7.56¢3 778
#16
FRONT FORK ASSY (R.H
$1074.09¢537 044
#17
TUBE, OUTER
$692.29¢346 144
#18
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#19
OIL SEAL
$22.99¢11 494
#20
RING, SNAP | (KYB)
$9.49¢4 744
#21
SEAL, DUST
$22.10¢11 051
#22
INNER TUBE COMP.2
$434.79¢217 396
#23
CYLINDER COMP, FRONT FORK
$526.16¢263 080
#24
GASKET | (KYB)
$15.72¢7 860
#25
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#26
SPRING, FRONT FORK
$88.96¢44 482
#27
SPACER
$59.66¢29 831
#28
NUT
$7.28¢3 640
#29
BOLT, CAP
$259.50¢129 749
#30
O-RING
$7.56¢3 778
#31
BOLT (3JP)
$5.75¢2 875
#32
UNDER BRACKET COMP.
$656.74¢328 371
#33
BOLT
$6.75¢3 375
#34
COVER, UNDER 1
$13.48¢6 739
#35
FORK SEAL KIT
$41.76¢20 878
