FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

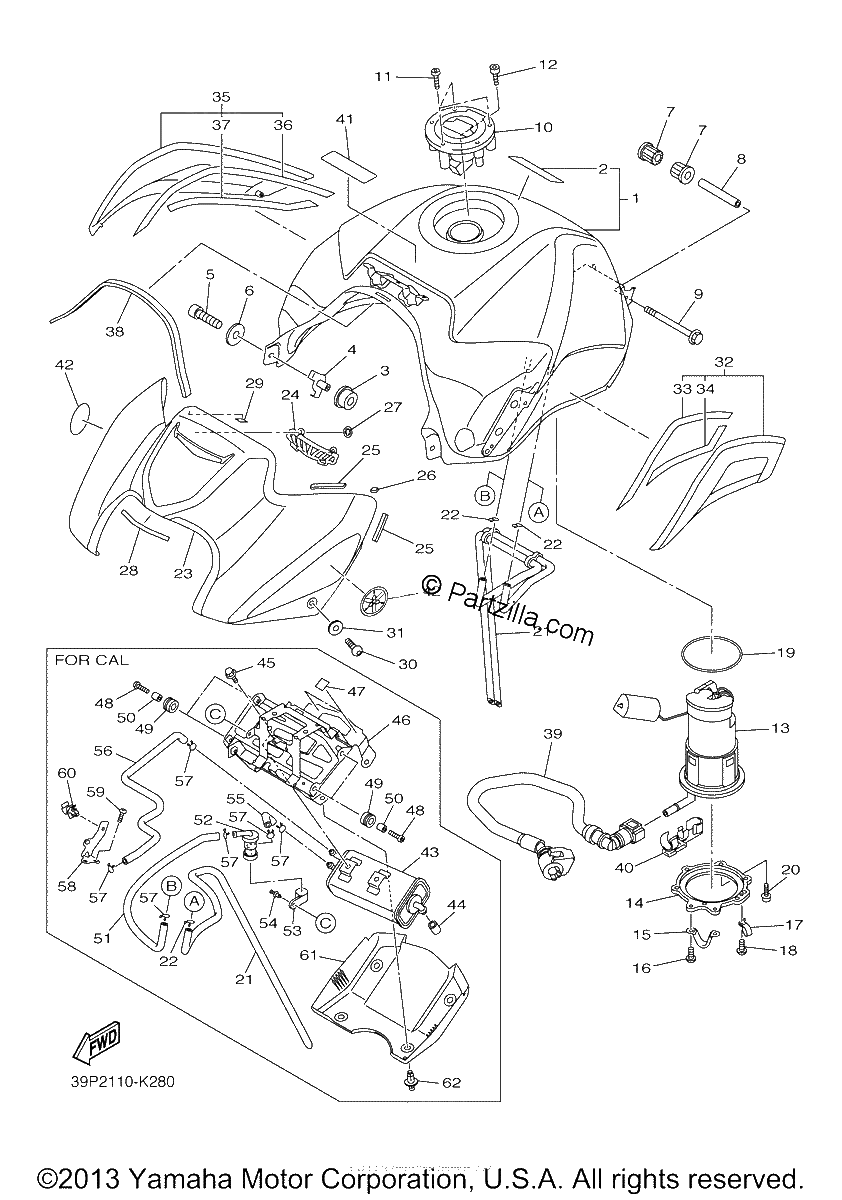

Diagrama de FUEL TANK

Repuestos

#0
39P-24315-00-00
PIPE 5 | FOR CALIFORNIA
$23.20¢11 598
1
#1
39P-Y2410-00-01
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
No Disponible
1
#2
39P-24161-00-00
EMBLEM 1
$16.50¢8 251
1
#3
5VY-24181-00-00
DAMPER, LOCATING 1
$7.04¢3 519
1
#4
2D1-2412G-00-00
COLLAR
$25.36¢12 679
1
#5
91312-06016-00
BOLT
$5.37¢2 685
1
#6
90201-06086-00
WASHER, PLATE
$6.43¢3 214
1
#7
5SL-24183-00-00
DAMPER, LOCATING 3
$7.04¢3 519
1
#8
90387-06055-00
COLLAR
$4.77¢2 386
1
#9
95022-06090-00
BOLT, FLANGE
$1.89¢943
1
#10
39P-24602-00-00
CAP ASSY
$248.96¢124 482
1
#11
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#12
91312-05010-00
BOLT
$5.39¢2 697
1
#13
39P-13907-00-00
FUEL PUMP COMP.
$519.43¢259 716
1
#14
39P-24491-00-00
BRACKET, FUEL PUMP
$51.07¢25 536
1
#15
2D1-24192-00-00
BRACKET, FUEL TANK 2
$12.45¢6 227
1
#16
98902-05008-00
SCREW, BIND
$1.35¢673
1
#17
90461-10010-00
CLAMP
$5.05¢2 524
1
#18
98902-05008-00
SCREW, BIND
$1.35¢673
1
#19
19B-24486-01-00
O-RING
$40.92¢20 458
1
#20
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#21
39P-24317-00-00
PIPE 7
$60.06¢30 032
1
#22
90467-090A2-00
Clip
$2.74¢1 368
1
#23
99999-04001-00
COVER, TOP SET | Use for Color Black Metallic X ( SMX / 0903 )
$357.96¢178 980
1
#24
39P-241B1-00-00
COVER, TANK
$8.35¢4 174
1
#25
4XV-2834E-00-00
DAMPER 3
$2.97¢1 483
1
#26
14B-24181-00-00
DAMPER, LOCATING 1
$7.31¢3 657
1
#27
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#28
39P-28307-00-00
SEAL
$5.07¢2 536
1
#29
1D7-15379-00-00
SEAL
$3.90¢1 949
1
#30
90111-05019-00
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
1
#31
90202-05224-00
WASHER, PLATE
$6.83¢3 415
1
#32
39P-24106-00-00
TANK SIDE COVER ASSY 1
$27.54¢13 771
1
#33
39P-241A3-00-00
SEAL 3
$16.33¢8 165
1
#34
39P-241A5-00-00
SEAL 5
$16.03¢8 015
1
#35
39P-24108-00-00
TANK SIDE COVER ASSY 2
$27.54¢13 771
1
#36
39P-241A4-00-00
SEAL 4
$11.97¢5 986
1
#37
39P-241A6-00-00
SEAL 6
$11.71¢5 853
1
#38
2D1-2414P-00-00
DAMPER, PLATE 5
$9.48¢4 738
1
#39
39P-13971-00-00
PIPE, FUEL 1
$97.37¢48 685
1
#39
90464-15014-00
Clamp
$2.16¢1 081
1
#40
90464-16005-00
CLAMP
$11.73¢5 865
1
#41
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#42
5SL-2413B-00-00
EMBLEM
$24.39¢12 196
1
#43
39P-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$324.37¢162 185
1
#44
90445-112E0-00
HOSE (L70)
$6.38¢3 191
1
#45
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#46
39P-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$878.59¢439 294
1
#47
5YU-21639-00-00
DAMPER 2
$3.48¢1 742
1
#48
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#49
90480-14030-00
GROMMET
$3.21¢1 604
1
#50
90387-06026-00
COLLAR
$7.58¢3 789
1
#51
39P-24313-00-00
PIPE 3 | FOR CALIFORNIA
$43.03¢21 517
1
#52
2C0-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
1
#54
90269-05005-00
RIVET
$3.29¢1 644
1
#55
39P-24314-00-00
PIPE 4 | FOR CALIFORNIA
$13.06¢6 532
1
#56
39P-1444J-00-00
PIPE | FOR CALIFORNIA
$44.07¢22 034
1
#57
90467-090A2-00
Clip
$2.74¢1 368
1
#58
39P-24216-00-00
STAY | FOR CALIFORNIA
$33.59¢16 796
1
#59
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#60
90464-10125-00
CLAMP | FOR CALIFORNIA
$4.88¢2 438
1
#61
5D0-2172W-00-00
COVER | FOR CALIFORNIA
$53.91¢26 956
1
#62
90269-07077-00
RIVET
$7.59¢3 795
1
