STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

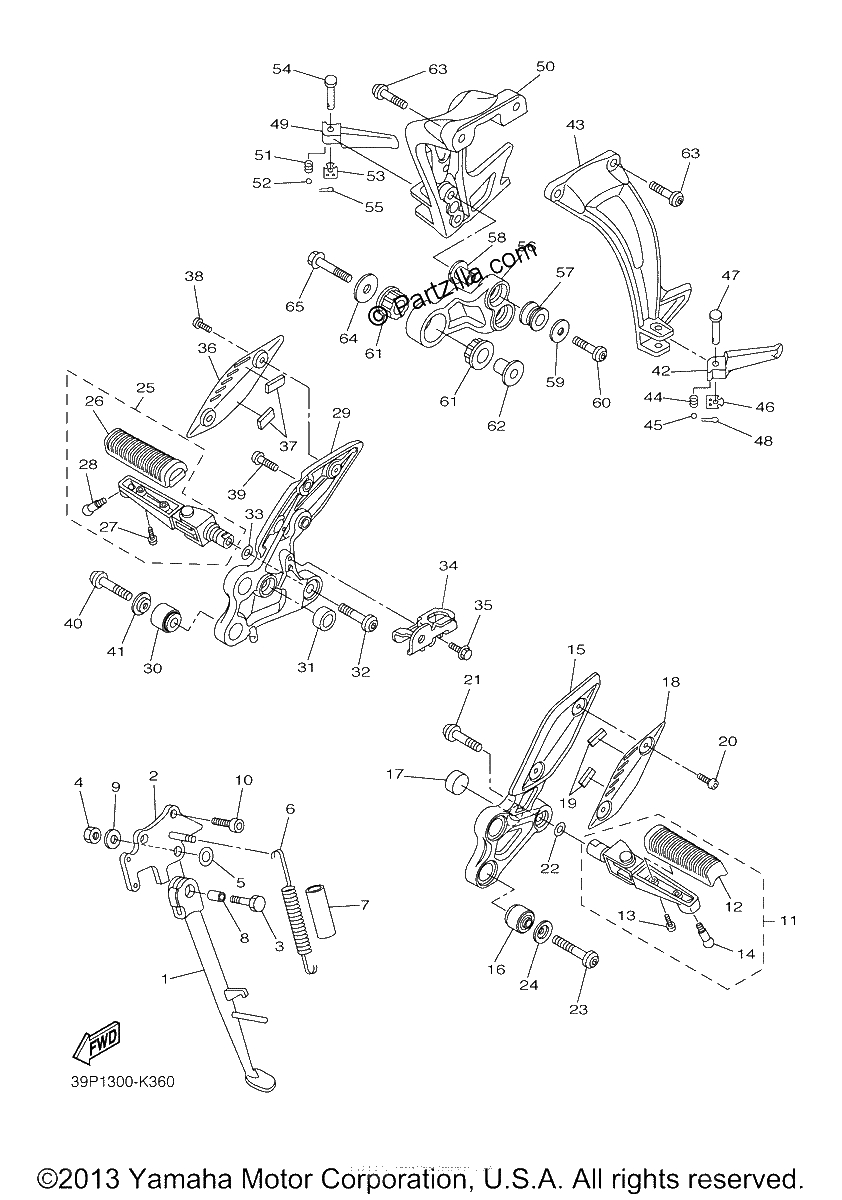

Diagrama de STAND FOOTREST

Repuestos

#1
39P-27311-00-00
STAND, SIDE
$179.60¢89 800
1
#2
2D1-27321-00-00
BRACKET, SIDE STAND
$90.17¢45 088
1
#3
90101-10025-00
bolt
$9.24¢4 619
1
#4
90185-10023-00
NUT, SELF-LOCKING
$6.70¢3 350
1
#5
90201-16027-00
WASHER, PLATE
$8.73¢4 363
1
#6
90506-18020-00
SPRING, TENSION
$14.15¢7 075
1
#7
90445-19002-00
HOSE (L60)
$6.10¢3 050
1
#8
90387-10050-00
COLLAR
$24.00¢12 000
1
#9
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#10
91312-10030-00
BOLT
$3.38¢1 688
1
#11
39P-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$78.49¢39 244
1
#12
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#13
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#14
90109-08204-00
BOLT
$6.60¢3 300
1
#15
39P-27442-00-00
BRACKET 2
$247.14¢123 569
1
#16
1NL-27424-00-00
DAMPER, FOOTREST 2
$36.88¢18 438
1
#17
5VX-27114-00-00
STOPPER, MAIN STAND
$7.86¢3 931
1
#18
39P-27486-00-00
COVER 1
$17.06¢8 531
1
#19
1HX-27415-00-00
PLATE, DAMPER
$7.86¢3 931
1
#20
92014-05008-00
BOLT, BUTTON HEAD
$4.16¢2 081
1
#21
90111-10040-00
BOLT,HEX. SOCKET BUT
$3.55¢1 775
1
#22
90206-17084-00
WASHER, WAVE
$11.19¢5 594
1
#23
90110-08071-00
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
1
#24
90209-08295-00
WASHER
$7.94¢3 969
1
#25
39P-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$96.40¢48 200
1
#26
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#27
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#28
90109-08204-00
BOLT
$6.60¢3 300
1
#29
39P-27443-00-00
BRACKET 3
$209.13¢104 563
1
#30
1NL-27424-00-00
DAMPER, FOOTREST 2
$36.88¢18 438
1
#31
5VX-27114-00-00
STOPPER, MAIN STAND
$7.86¢3 931
1
#32
90111-10040-00
BOLT,HEX. SOCKET BUT
$3.55¢1 775
1
#33
90206-17084-00
WASHER, WAVE
$11.19¢5 594
1
#34
39P-2144G-00-00
STAY, STOP SWITCH
$12.86¢6 431
1
#35
95817-06008-00
BOLT, FLANGE
$5.76¢2 881
1
#36
39P-27487-00-00
COVER 2
$28.42¢14 212
1
#37
1HX-27415-00-00
PLATE, DAMPER
$7.86¢3 931
1
#38
92014-05008-00
BOLT, BUTTON HEAD
$4.16¢2 081
1
#39
92017-08020-00
BOLT, BUTTON HEAD
$6.99¢3 494
1
#39
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#40
90110-08071-00
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
1
#41
90209-08295-00
WASHER
$7.94¢3 969
1
#42
3VR-27431-02-00
FOOTREST, REAR 1
$29.59¢14 794
1
#43
2D1-2741L-10-00
BRACKET 4
$292.79¢146 394
1
#44
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#45
93501-04011-00
BALL
$7.46¢3 731
1
#46
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#47
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#48
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#49
3VR-27441-02-00
FOOTREST, REAR 2
$29.66¢14 831
1
#50
39P-2742L-00-00
BRACKET 5
$128.60¢64 300
1
#51
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#52
93501-04011-00
BALL
$7.46¢3 731
1
#54
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#55
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#56
39P-21436-00-00
BRACKET, MUFFLER 2
$64.78¢32 388
1
#57
5BE-14747-00-00
DAMPER, MUFFLER
$9.10¢4 550
1
#58
90387-08021-00
COLLAR
$10.14¢5 069
1
#59
90201-08054-00
WASHER, plate
$7.48¢3 738
1
#60
92012-08035-00
BOLT, BUTTON HEAD
$4.49¢2 244
1
#61
39P-27424-00-00
DAMPER, FOOTREST 2
$11.81¢5 906
1
#62
90387-10097-00
COLLAR
$19.66¢9 831
1
#63
90109-085G6-00
BOLT
$2.26¢1 131
1
#64
90201-10068-00
WASHER, PLATE
No Disponible
1
#65
95814-10045-00
BOLT, FLANGE
$4.16¢2 081
1
