SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

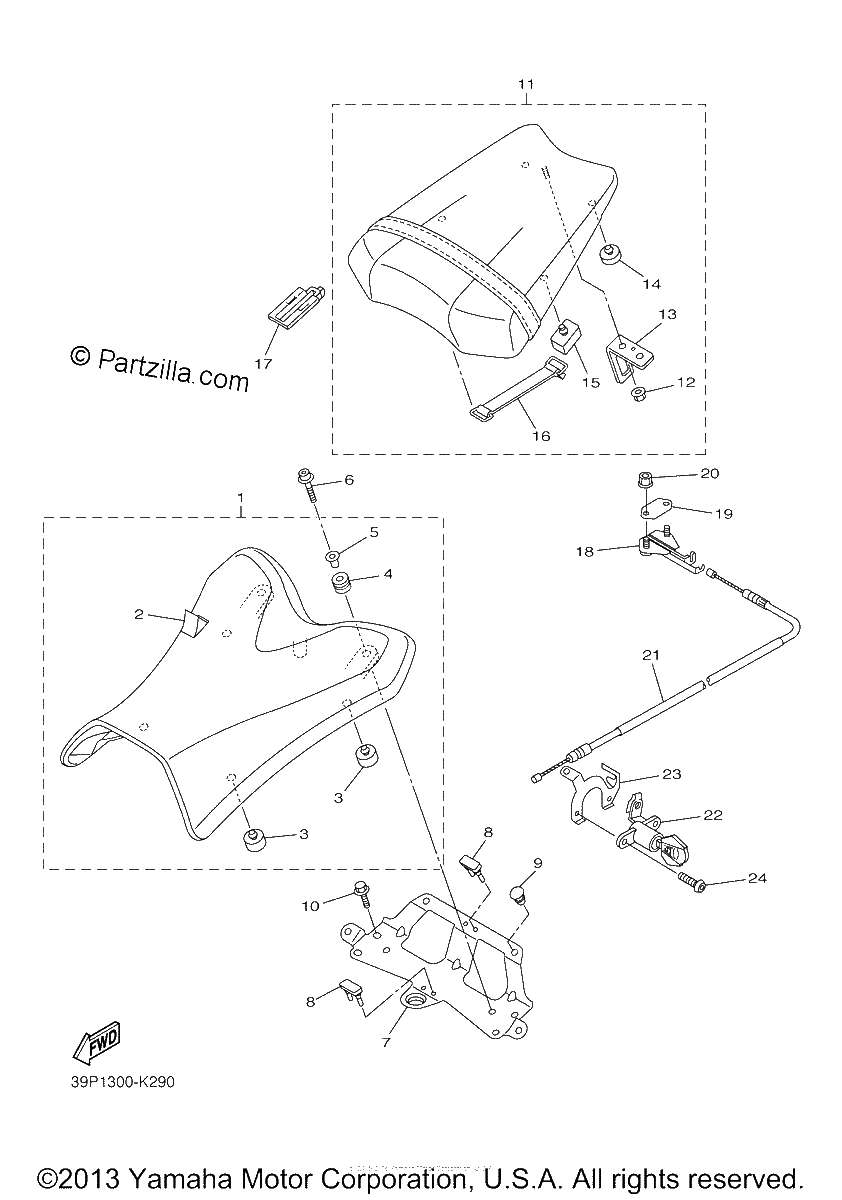

Diagrama de SEAT

Repuestos

#1
39P-24710-00-00
SINGLE SEAT ASSY
$137.56¢68 782
1
#2
39P-2470F-00-00
SEAT COVER COMP.
No Disponible
1
#3
278-27114-00-00
STOPPER, MAIN STAND
$9.28¢4 640
1
#4
90480-14604-00
GROMMET
$8.13¢4 065
1
#5
90387-07391-00
COLLAR
$8.49¢4 244
1
#6
90110-06232-00
BOLT, HEXAGON SOCKET HEAD
$5.76¢2 881
1
#7
39P-21349-00-00
BRACKET, SEAT
$62.54¢31 269
1
#8
682-44532-00-00
STOPPER, UPPER MOUNT
$2.78¢1 392
1
#9
90338-07043-00
PLUG
$6.03¢3 013
1
#10
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#11
39P-24750-00-00
TANDEM SEAT ASSY
$168.81¢84 404
1
#12
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#13
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#14
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#15
39P-24741-00-00
PAD, SEAT
$6.81¢3 404
1
#16
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
1
#17
39P-24768-00-00
STOPPER
$6.15¢3 076
1
#18
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#19
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#20
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#21
2D1-2478E-00-00
CABLE, SEAT LOCK
$22.15¢11 075
1
#22
3CK-W2470-00-00
SEAT LOCK ASSY
$81.60¢40 802
1
#23
4XV-2117K-00-00
STAY, LOCK
$18.64¢9 321
1
#24
90149-06135-00
SCREW
$2.02¢1 012
1
