STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

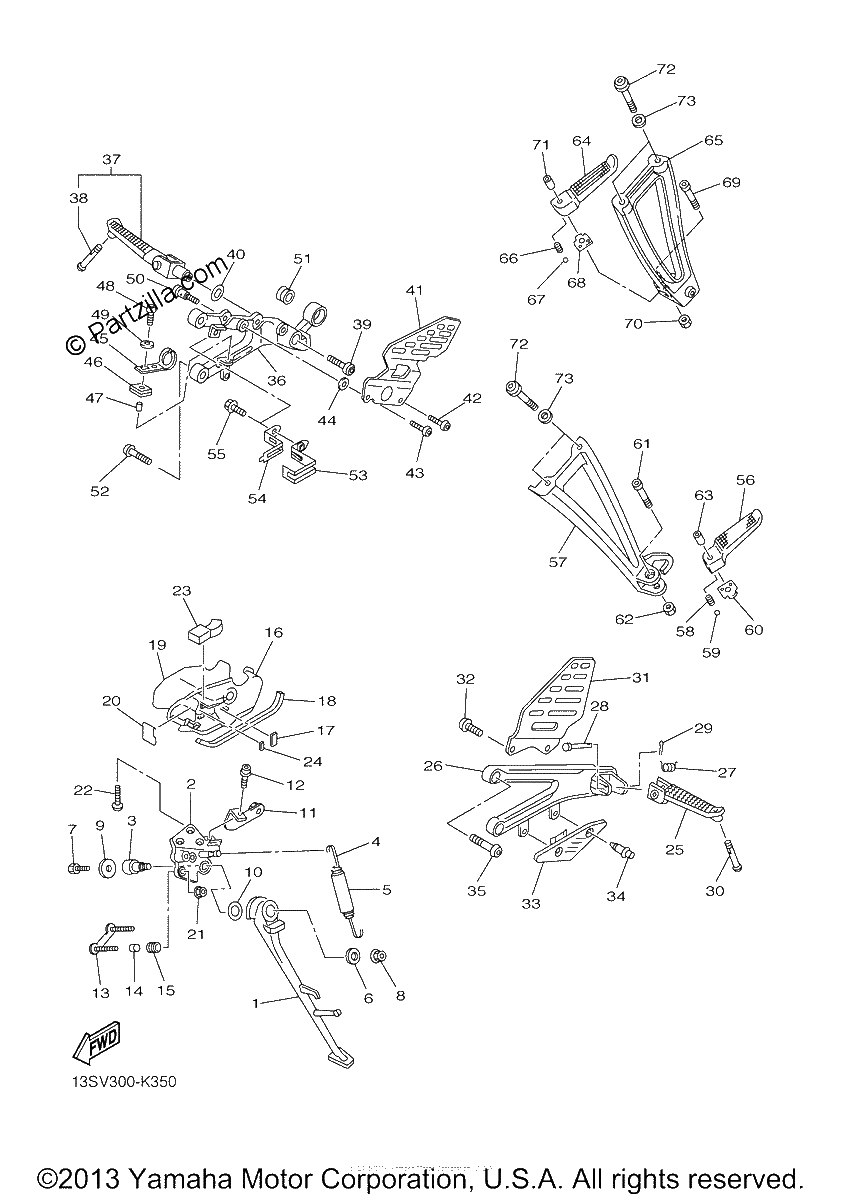

Diagrama de STAND FOOTREST

Repuestos

#0
2C0-2741L-11-00
BRACKET 4
$119.09¢59 544
1
#0
2C0-2742L-11-00
BRACKET 5
$132.24¢66 119
1
#1
2C0-27311-10-00
STAND, SIDE
$360.45¢180 225
1
#2
2C0-27321-10-00
BRACKET, SIDE STAND
$316.65¢158 325
1
#3
2C0-27351-00-00
GUIDE, SIDE STAND
$66.19¢33 094
1
#4
90506-18008-00
SPRING, TENSION
$15.79¢7 894
1
#5
90445-19002-00
HOSE (L60)
$6.10¢3 050
1
#6
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#7
97017-08020-00
BOLT
$7.60¢3 800
1
#8
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#9
90201-08050-00
WASHER, PLATE
$5.84¢2 919
1
#10
90201-146F9-00
WASHER, PLATE
$5.95¢2 975
1
#11
13S-2836F-00-00
BRACKET 3
$25.63¢12 813
1
#12
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#13
2C0-27263-00-00
BRACKET 1
$14.66¢7 331
1
#14
90387-05025-00
COLLAR
$6.15¢3 075
1
#15
90480-11006-00
GROMMET
$3.50¢1 750
1
#16
2C0-27453-00-00
COVER 1
$20.21¢10 106
1
#17
2C0-27414-00-00
DAMPER, FOOTREST
$7.86¢3 931
1
#18
2C0-27415-00-00
PLATE, FOOTREST
$7.95¢3 975
1
#19
2C0-28428-00-00
SEAL 1
$42.39¢21 194
1
#20
2C0-28429-00-00
SEAL 2
$10.06¢5 031
1
#21
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#22
92012-08030-00
BOLT, BUTTON HEAD
$6.74¢3 369
1
#23
2C0-28425-00-00
DAMPER 3
$6.15¢3 075
1
#24
2C0-21485-00-00
DAMPER, RUBBER 1
$7.60¢3 800
1
#25
2C0-27451-00-00
FOOTREST
$58.72¢29 362
1
#26
2C0-27442-00-00
BRACKET 2
$120.74¢60 369
1
#27
90508-18134-00
SPRING, TORSION
$7.35¢3 675
1
#28
91701-08038-00
PIN
$4.65¢2 325
1
#29
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#30
90109-08225-00
BOLT
$6.14¢3 069
1
#31
2C0-27445-00-00
PLATE 1
$67.72¢33 863
1
#32
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#33
2C0-27491-00-00
PROTECTOR
$7.97¢3 988
1
#34
90269-06008-00
RIVET
$8.80¢4 400
1
#35
90109-085G6-00
BOLT
$2.26¢1 131
1
#36
2C0-27443-00-00
BRACKET 3
$166.63¢83 313
1
#37
2C0-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$96.45¢48 225
1
#38
90109-08225-00
BOLT
$6.14¢3 069
1
#39
90111-10017-00
BOLT,HEX. SOCKET BUT
$8.24¢4 119
1
#39
2C0-2116K-00-00
BRACKET 8
$8.77¢4 387
1
#40
90214-13002-00
WASHER, CLAW
$7.48¢3 738
1
#41
13S-27446-00-00
PLATE 2
$89.56¢44 781
1
#42
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#43
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$6.47¢3 238
1
#44
90387-06215-00
COLLAR
$4.97¢2 488
1
#45
13S-2144G-00-00
STAY, STOP SWITCH
$5.72¢2 863
1
#46
90480-12607-00
GROMMET
$10.18¢5 088
1
#47
90387-06023-00
COLLAR
$9.13¢4 563
1
#48
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#49
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#50
90109-066F0-00
BOLT
$7.60¢3 800
1
#51
2C0-14747-00-00
DAMPER, MUFFLER
$8.35¢4 175
1
#52
90109-085G6-00
BOLT
$2.26¢1 131
1
#54
2C0-2116L-00-00
BRACKET 9
$4.60¢2 300
1
#55
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#56
5JJ-27431-10-00
FOOTREST, REAR 1
$85.08¢42 538
1
#57
2C0-2741L-00-00
BRACKET 4 | UR FOR DPBMC
$82.65¢41 325
1
#58
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#59
93501-04011-00
BALL
$7.46¢3 731
1
#60
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#61
91317-06035-00
BOLT
$4.17¢2 088
1
#62
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#63
90387-06697-00
Collar
$15.88¢7 938
1
#64
5JJ-27441-10-00
FOOTREST, REAR 2
$75.61¢37 806
1
#65
2C0-2742L-00-00
BRACKET 5 | UR FOR DPBMC
$81.69¢40 844
1
#66
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#67
93501-04011-00
BALL
$7.46¢3 731
1
#68
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#69
91317-06035-00
BOLT
$4.17¢2 088
1
#70
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#71
90387-06697-00
Collar
$15.88¢7 938
1
#72
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
1
#73
13S-27417-00-00
WASHER, FOOTREST
$12.14¢6 069
1
