FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

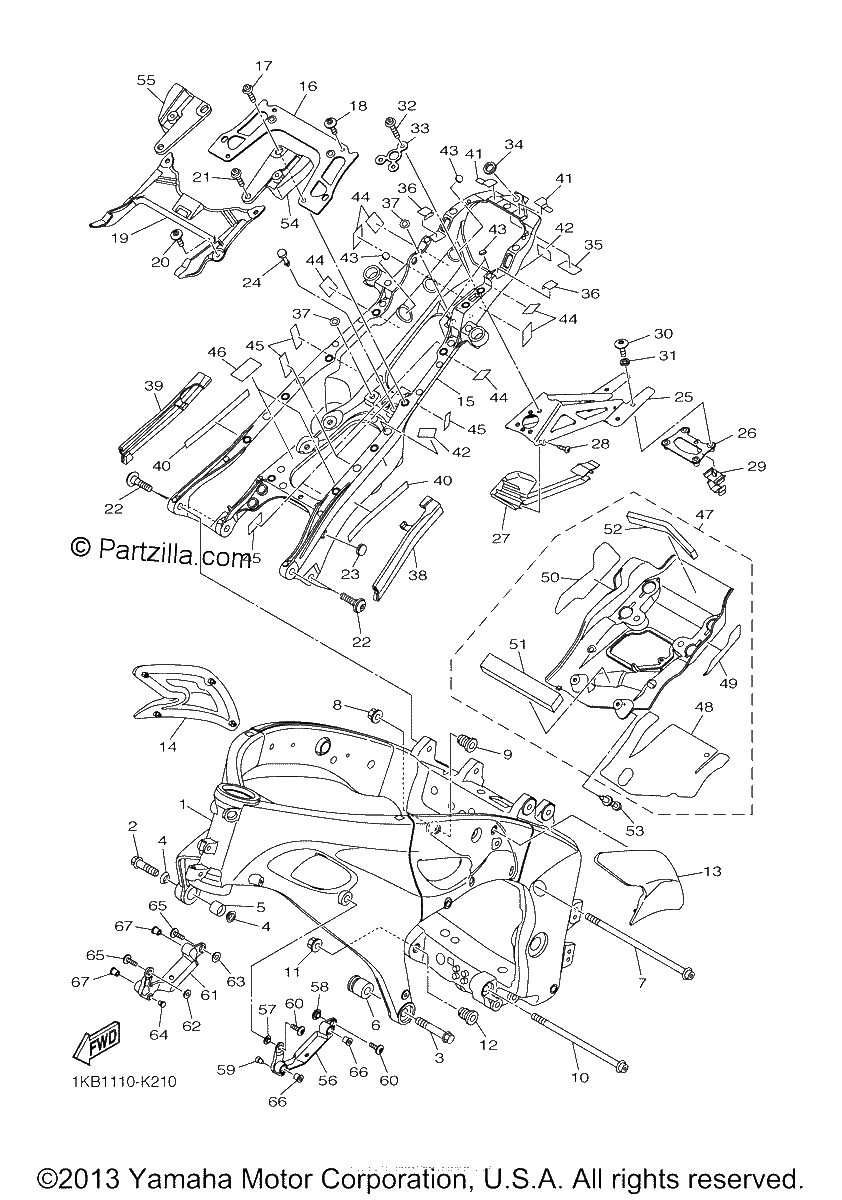

Diagrama de FRAME

Repuestos

#0
14B-21110-20-00
FRAME COMP. | FOR CALIFORNIA
$3194.99¢1 597 494
1
#1
14B-21110-00-00
FRAME COMP. | U49
$3196.24¢1 598 119
1
#2
90105-12062-00
BOLT, FLANGE
$15.58¢7 788
1
#3
95817-12080-00
BOLT, FLANGE
$5.66¢2 831
1
#4
14B-21414-00-00
BOSS, ENGINE MOUNT
$23.06¢11 531
1
#5
14B-21424-00-00
BOSS, ENGINE MOUNT
$32.94¢16 469
1
#6
14B-2141R-00-00
BOSS
$109.04¢54 519
1
#7
90110-10024-00
BOLT, HEXAGON SOCKET HEAD
$22.19¢11 094
1
#8
90179-10028-00
NUT
$6.74¢3 369
1
#9
14B-21495-00-00
BOLT, ENGINE ADJUSTING
$22.97¢11 487
1
#10
90110-10023-00
BOLT, HEXAGON SOCKET HEAD
$45.06¢22 531
1
#11
90179-10028-00
NUT
$6.74¢3 369
1
#12
14B-21495-00-00
BOLT, ENGINE ADJUSTING
$22.97¢11 487
1
#13
14B-24121-00-00
SEAT, KNEE GRIP 1
$77.28¢38 638
1
#14
14B-24122-00-00
SEAT, KNEE GRIP 2
$52.67¢26 338
1
#15
14B-21190-00-00
REAR FRAME COMP.
$1232.05¢616 025
1
#16
14B-21131-00-00
BRACKET
$117.26¢58 631
1
#17
90109-06015-00
BOLT
$4.76¢2 381
1
#18
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#19
14B-21214-00-00
REINF, FRAME RR.
$113.47¢56 738
1
#20
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#21
90109-06015-00
BOLT
$4.76¢2 381
1
#22
14B-2585H-09-00
SCREW, SET
$8.26¢4 131
1
#23
90338-15004-00
PLUG
$7.46¢3 731
1
#24
90269-04025-00
RIVET
$3.16¢1 581
1
#25
14B-21640-00-00
REAR STAY COMP.
$128.16¢64 081
1
#26
14B-21682-00-00
STAY, PLATE
$75.60¢37 800
1
#27
14B-2163A-00-00
COVER, REAR FENDER 1
$9.38¢4 688
1
#28
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#29
90464-14228-00
CLAMP
$5.29¢2 644
1
#30
90111-06129-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#31
90201-06040-00
WASHER, PLATE
$3.60¢1 800
1
#32
90109-06031-00
bolt
$2.29¢1 144
1
#33
14B-21615-00-00
WASHER, SPECIAL 1
$22.56¢11 281
1
#34
13S-21746-00-00
DAMPER
$7.95¢3 975
1
#35
14B-22873-00-00
SEAL 1
$3.16¢1 581
1
#36
14B-22874-00-00
SEAL 2
$2.61¢1 306
1
#37
13S-2173M-00-00
SEAL 3
$7.61¢3 806
1
#38
14B-22876-00-00
SEAL 4
$9.96¢4 981
1
#39
14B-22877-00-00
SEAL, 5
$12.72¢6 363
1
#39
90269-06016-00
RIVET
$4.60¢2 300
1
#40
13S-21567-00-00
TAPE, 2
$16.14¢8 069
1
#41
14B-22879-00-00
SEAL, 7
$3.26¢1 631
1
#42
14B-28425-00-00
DAMPER 3
$3.38¢1 688
1
#43
14B-28217-00-00
DAMPER 1
$0.18¢88
1
#44
14B-28227-00-00
DAMPER 2
$2.48¢1 238
1
#45
14B-28237-00-00
DAMPER 3
$3.73¢1 863
1
#46
14B-28435-00-00
DAMPER 4
$3.02¢1 513
1
#47
14B-2110N-20-00
COVER ASSY 2
$180.06¢90 031
1
#48
14B-2112B-00-00
SEAT 1
$23.61¢11 806
1
#49
14B-2113C-00-00
SHEET, 2
$3.79¢1 894
1
#50
14B-2113D-00-00
SHEET, 3
No Disponible
1
#51
90520-15001-00
DAMPER, PLATE
$4.24¢2 119
1
#52
90520-15004-00
DAMPER, PLATE
$1.47¢737
1
#54
14B-2172E-10-00
STAY, SIDE COVER 1
No Disponible
1
#55
14B-2174E-10-00
STAY, SIDE COVER 2
$27.84¢13 919
1
#56
14B-2836F-00-00
BRACKET 3
$8.03¢4 013
1
#57
90387-06217-00
COLLAR
$19.85¢9 925
1
#58
90387-08079-00
COLLAR
$8.92¢4 462
1
#59
90338-07180-00
PLUG
$6.76¢3 381
1
#60
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#61
14B-2836G-00-00
BRACKET 4
$8.03¢4 013
1
#62
90387-06217-00
COLLAR
$19.85¢9 925
1
#63
90387-08079-00
COLLAR
$8.92¢4 462
1
#64
90338-07180-00
PLUG
$6.76¢3 381
1
#65
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#66
90179-05523-00
NUT
$6.78¢3 388
1
#67
90179-05523-00
NUT
$6.78¢3 388
1
