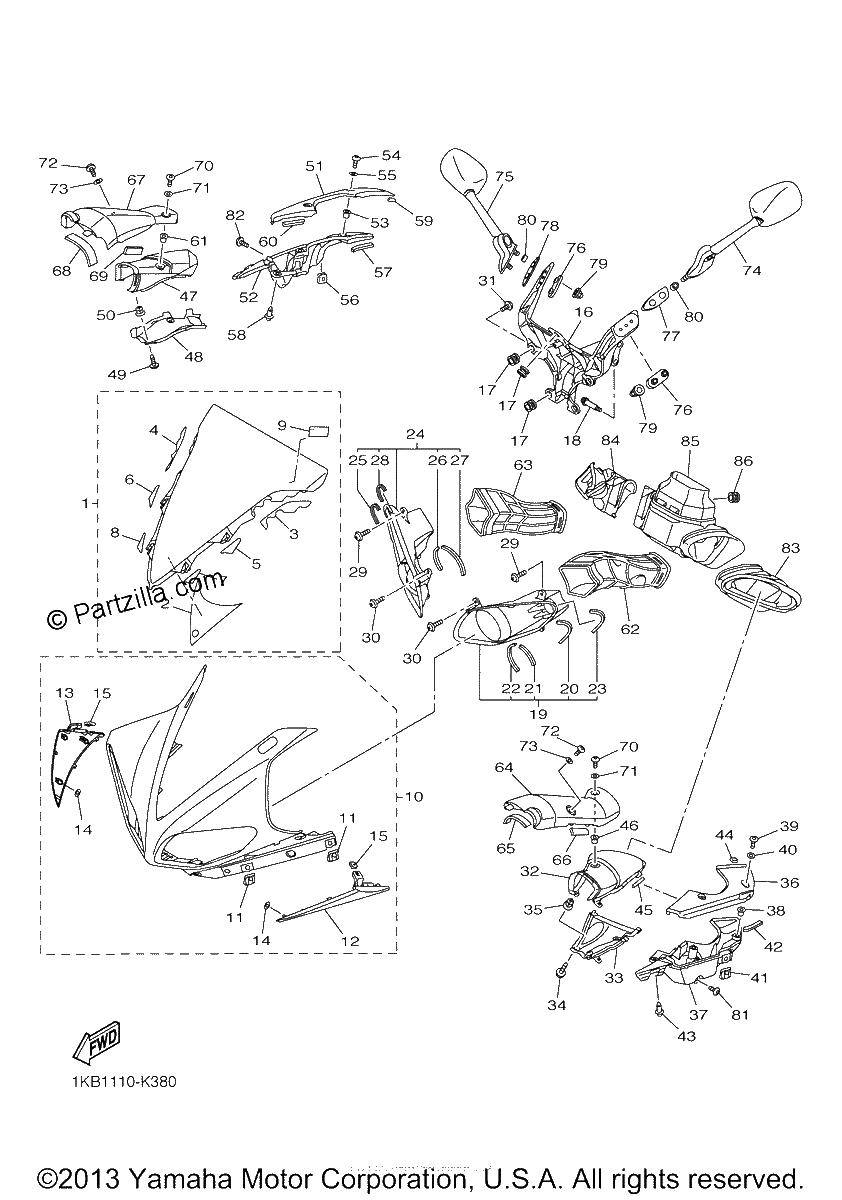

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SCREEN
$245.87¢122 935
#2
GRAPHIC, 18
No Disponible
#3
SEAL 1
$11.63¢5 813
#4
SEAL 2
No Disponible
#5
SEAL 3
$5.69¢2 846
#6
SEAL 4
$5.65¢2 823
#7
SEAL 5
$5.28¢2 639
#8
SEAL 6
$5.28¢2 639
#9
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
#10
BODY, FRONT UPPER 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$1058.28¢529 138
#11
PLATE, SPRING
$6.82¢3 410
#12
COVER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$101.61¢50 807
#13
COVER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$106.17¢53 084
#14
NUT, SPRING
$0.46¢230
#15
NUT, SPRING
$2.60¢1 299
#16
STAY 1
$238.39¢119 197
#17
DAMPER
$7.01¢3 507
#18
BOLT, FLANGE
$6.92¢3 461
#19
GRILL ASSY
$48.09¢24 047
#20
DAMPER
$0.89¢443
#21
SEAL 4
$8.83¢4 416
#22
DAMPER, PLATE
$0.89¢443
#23
DAMPER 5
$3.58¢1 788
#24
GRILL ASSY
$48.09¢24 047
#25
DAMPER
$0.89¢443
#26
SEAL 4
$8.83¢4 416
#27
DAMPER, PLATE
$0.89¢443
#28
DAMPER 5
$3.58¢1 788
#29
SCREW, TAPPING (replaces 97702-50020-00)
$5.76¢2 881
#30
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#31
SCREW, ROUND TAPPING
$6.83¢3 415
#32
DUCT 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$121.74¢60 869
#33
DUCT 3
$13.48¢6 739
#34
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#35
GROMMET
$6.88¢3 439
#36
LID 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$75.60¢37 800
#37
BOX 3
$23.41¢11 707
#38
NUT
$6.23¢3 117
#39
NUT
$6.23¢3 117
#39
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#40
WASHER, PLATE
$7.05¢3 525
#41
PLATE, SPRING
$6.82¢3 410
#42
SEAL 4
$8.83¢4 416
#43
RIVET
$7.59¢3 795
#44
DAMPER, PLATE
$7.10¢3 548
#45
DAMPER, PLATE
$7.16¢3 582
#46
NUT
$6.23¢3 117
#47
DUCT 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$111.95¢55 976
#48
DUCT 4
$13.48¢6 739
#49
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#50
GROMMET
$6.88¢3 439
#51
LID 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#52
BOX 4
$13.48¢6 739
#54
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#55
WASHER, PLATE
$7.05¢3 525
#56
PLATE, SPRING
$6.82¢3 410
#57
SEAL 4
$8.83¢4 416
#58
RIVET
$7.59¢3 795
#59
DAMPER, PLATE
$7.10¢3 548
#60
DAMPER, PLATE
$7.16¢3 582
#61
NUT
$6.23¢3 117
#62
DUCT 5
$33.92¢16 963
#63
DUCT 6
$31.65¢15 824
#64
PANEL, CONSOLE 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$98.97¢49 485
#65
DAMPER, 3
$7.31¢3 657
#66
SEAL 1
$9.67¢4 836
#67
PANEL, CONSOLE 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#68
DAMPER, 3
$7.31¢3 657
#69
SEAL 1
$9.67¢4 836
#70
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#71
WASHER, PLATE
$7.05¢3 525
#72
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#73
WASHER, PLATE
$7.05¢3 525
#74
REAR VIEW MIRROR ASSY (LEFT)
$143.20¢71 599
#75
REAR VIEW MIRROR ASSY (RIGHT)
$143.20¢71 599
#76
PLATE, MIRROR FITTING 1
$7.04¢3 519
#77
BASE, MIRROR (LEFT)
$5.21¢2 605
#78
BASE, MIRROR (RIGHT)
$5.21¢2 605
#79
NUT, CROWN
$4.38¢2 191
#80
COLLAR (J45)
$5.45¢2 726
#81
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#82
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#83
BOX, SIDE 1
$42.03¢21 016
#84
BOX, SIDE 2
$53.70¢26 853
#85
BOX, FRONT
$102.61¢51 307
#86
GROMMET
$4.25¢2 128
