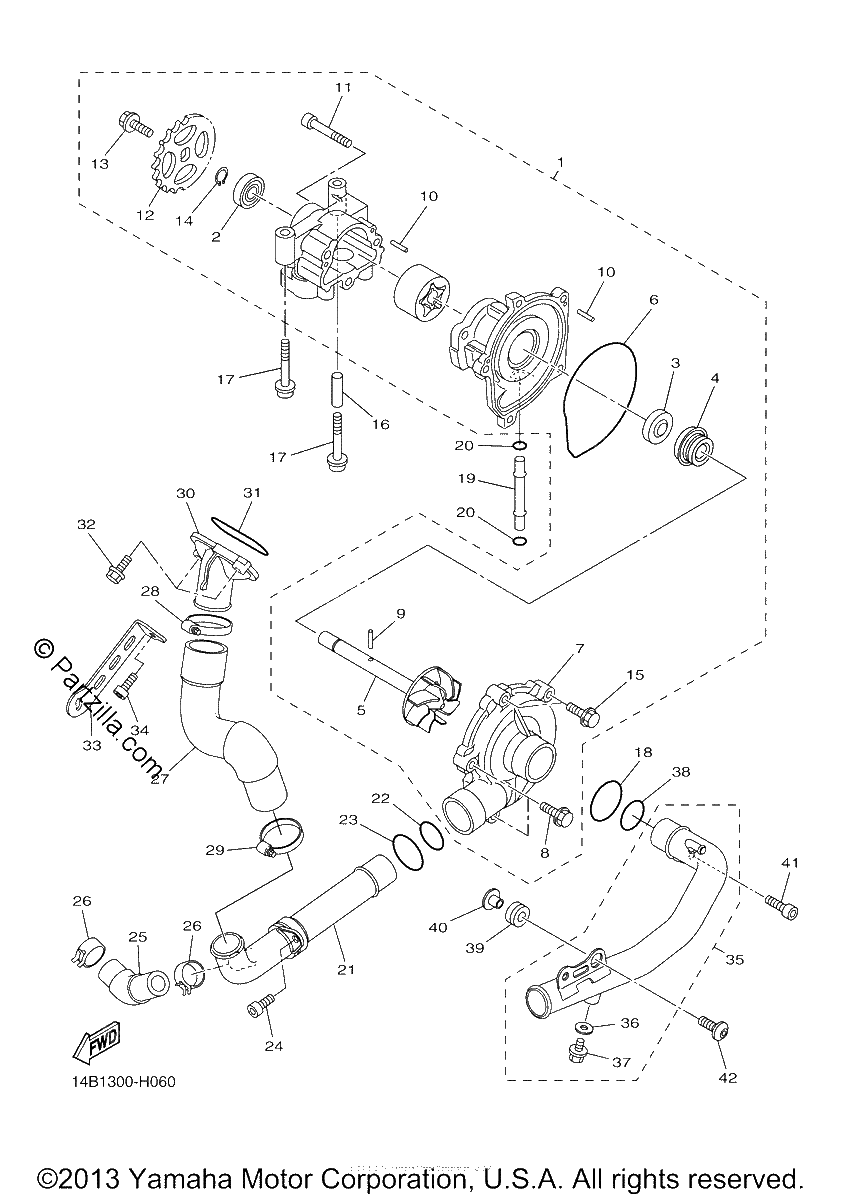

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WATER PUMP ASSY
$611.04¢305 519
#2
BEARING
$30.26¢15 131
#3
SEAL
$23.28¢11 638
#4
SEAL, MECHANICAL
$51.06¢25 531
#5
IMPELLER SHAFT ASSY
$110.55¢55 275
#6
O-RING
$15.43¢7 713
#7
COVER, HOUSING
$100.59¢50 294
#8
BOLT, FLANGE
$1.75¢875
#9
PIN, DOWEL
$3.71¢1 856
#10
PIN, DOWEL
$1.96¢981
#11
BOLT
$4.00¢2 000
#12
SPROCKET, DRIVEN
$28.20¢14 100
#13
BOLT, FLANGE
$7.49¢3 744
#14
CIRCLIP
$3.66¢1 831
#15
BOLT, FLANGE
$3.96¢1 981
#16
PIN, DOWEL
$6.74¢3 369
#17
BOLT, HEXAGON SOCKET HEAD
$4.75¢2 375
#18
O-RING
$11.09¢5 544
#19
PIPE 5
$10.39¢5 194
#20
O-RING
$6.91¢3 456
#21
PIPE 1
$117.61¢58 806
#22
O-RING
$6.85¢3 425
#23
O-RING
$8.21¢4 106
#24
BOLT
$7.34¢3 669
#25
HOSE 5
$15.77¢7 887
#26
CLIP
$9.45¢4 725
#27
HOSE 1
$49.34¢24 669
#28
HOSE CLAMP ASSY
$18.77¢9 388
#29
HOSE CLAMP ASSY
$6.26¢3 131
#30
JOINT 1
$41.69¢20 844
#31
O-RING
$6.99¢3 494
#32
Bolt, Flange
$3.06¢1 531
#33
STAY 1
$14.78¢7 388
#34
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#35
PIPE 4
$183.46¢91 731
#36
GASKET
$8.25¢4 125
#37
SCREW, HEXAGON
$7.49¢3 744
#38
O-RING
$6.85¢3 425
#39
GROMMET
$6.42¢3 213
#40
COLLAR
$7.86¢3 931
#41
BOLT
$7.34¢3 669
#42
SCREW
$5.11¢2 556
