REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

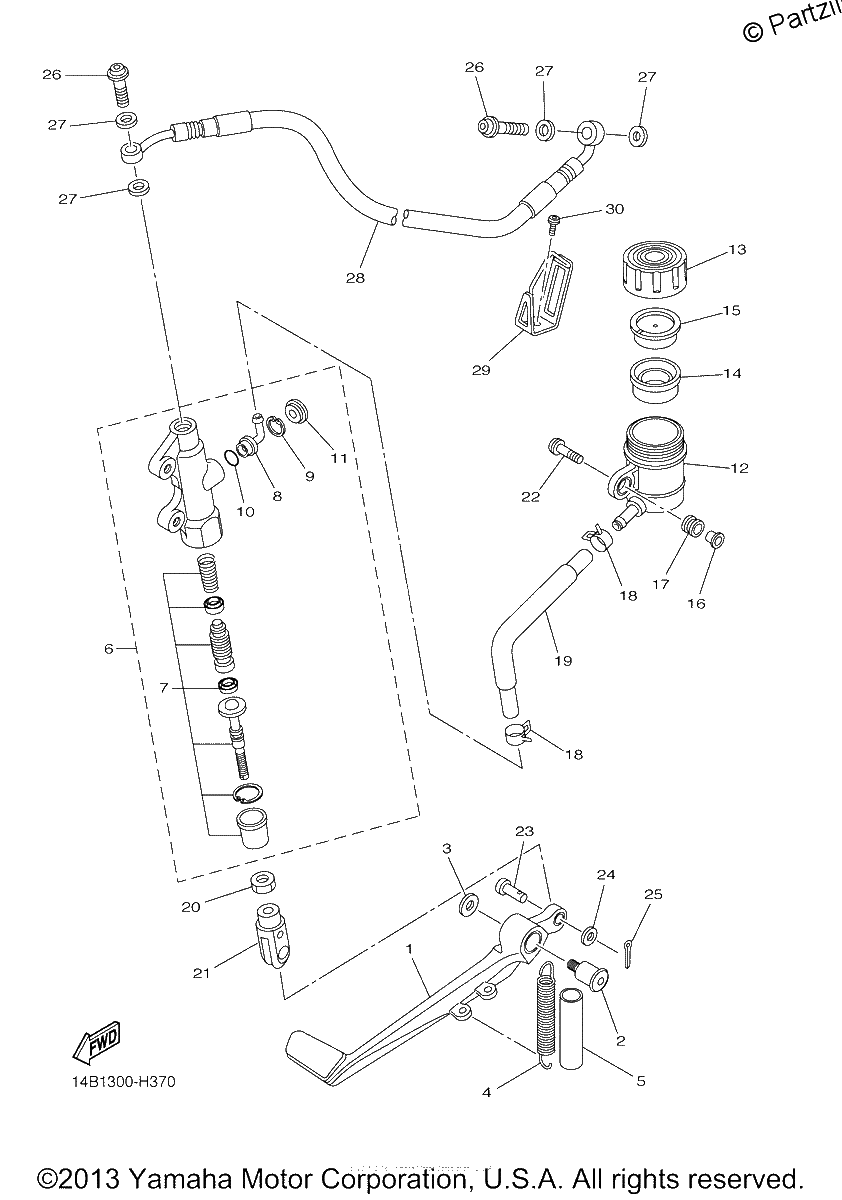

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
14B-27211-00-00
PEDAL, BRAKE
$139.46¢69 730
1
#2
4C8-27434-10-00
BOLT
$21.36¢10 678
1
#3
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#4
90506-18022-00
SPRING, TENSION
$5.61¢2 806
1
#5
90446-15386-00
HOSE
$6.36¢3 180
1
#6
14B-2583V-00-00
REAR MASTER CYLINDER ASSY.
$166.21¢83 105
1
#7
14B-W0042-00-00
CYLINDER KIT, MASTER
No Disponible
1
#8
4ML-2582A-50-00
JOINT
$13.39¢6 693
1
#9
2VN-25866-00-00
CIRCLIP
$6.51¢3 254
1
#10
93210-15566-00
O-RING
$6.32¢3 162
1
#11
3FV-2589A-00-00
COVER, DUST
$19.34¢9 672
1
#12
14B-25894-00-00
TANK, RESERVOIR
$60.89¢30 446
1
#13
2C0-25852-00-00
CAP, RESERVOIR
$6.29¢3 145
1
#14
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$21.50¢10 753
1
#15
2VN-25855-00-00
BUSH,DIAPHRAGM
$10.43¢5 215
1
#16
90387-05028-00
COLLAR
$6.39¢3 197
1
#17
2C0-26326-00-00
GROMMET
$5.91¢2 956
1
#18
90467-12085-00
CLIP
$7.99¢3 996
1
#19
14B-25895-00-00
HOSE, RESERVOIR
$29.96¢14 979
1
#20
95317-08700-00
NUT
$7.72¢3 858
1
#21
4XV-27222-01-00
JOINT
$42.70¢21 350
1
#22
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#23
91701-06018-00
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
1
#24
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#25
91402-16012-00
PIN, COTTER
$6.74¢3 370
1
#26
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#27
90430-10005-00
GASKET
$7.72¢3 858
1
#28
14B-25874-00-00
HOSE, BRAKE
$53.51¢26 755
1
#29
14B-2588F-00-00
HOLDER, BRAKE HOSE 5
$30.72¢15 358
1
#30
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
