ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

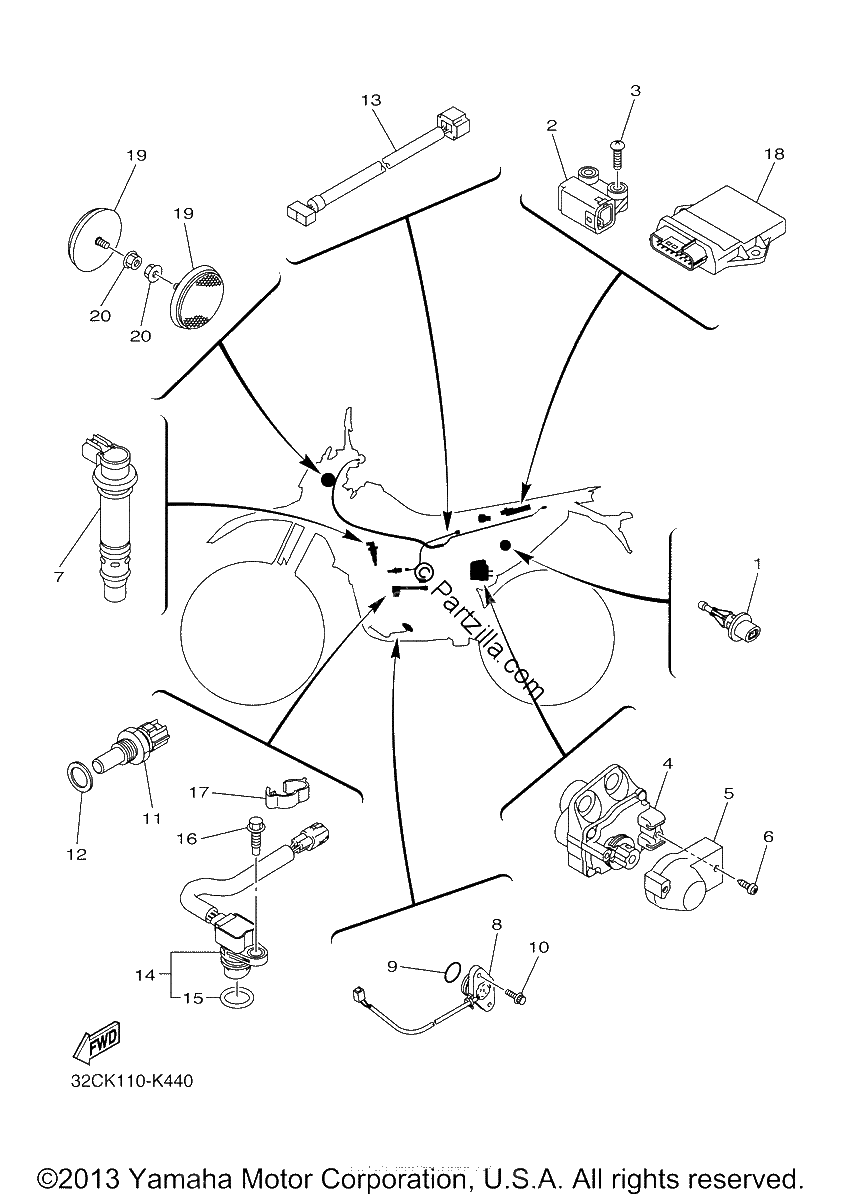

Diagrama de ELECTRICAL 1

Repuestos

#1
5VU-85886-00-00
SENSOR , AIR TEMP
$54.81¢27 404
1
#2
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#3
97702-40030-00
SCREW, TAPPING
$0.24¢121
1
#4
2D1-85820-00-00
SERVO MOTOR ASSY
$339.12¢169 562
1
#5
5VY-85829-00-00
COVER, SERVO MOTOR
$11.12¢5 560
1
#6
97780-50514-00
SCREW,TAPPING (replaces 97702-50514-00)
$4.20¢2 099
1
#7
8ES-82310-00-00
IGNITION COIL ASSY
$150.51¢75 256
1
#8
32D-82540-01-00
NEUTRAL SWITCH ASSY
$95.93¢47 967
1
#9
93210-21001-00
O-RING
$5.23¢2 616
1
#10
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#11
5PS-85790-00-00
THERMOSENSOR ASSY
$80.90¢40 451
1
#12
90430-12202-00
GASKET (2GH)
$7.77¢3 887
1
#13
3D7-82509-00-00
WIRE, SUB LEAD
$32.91¢16 457
1
#14
3D7-83755-00-00
SENSOR, SPEED
$145.10¢72 548
1
#15
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#16
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#17
90464-16003-00
CLAMP
$6.87¢3 433
1
#18
32C-8591A-00-00
ENGINE CONTROL UNIT
$1043.04¢521 519
1
#19
2EK-85111-00-00
REFLECTOR, FRONT 1
$25.67¢12 834
1
#20
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
