FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

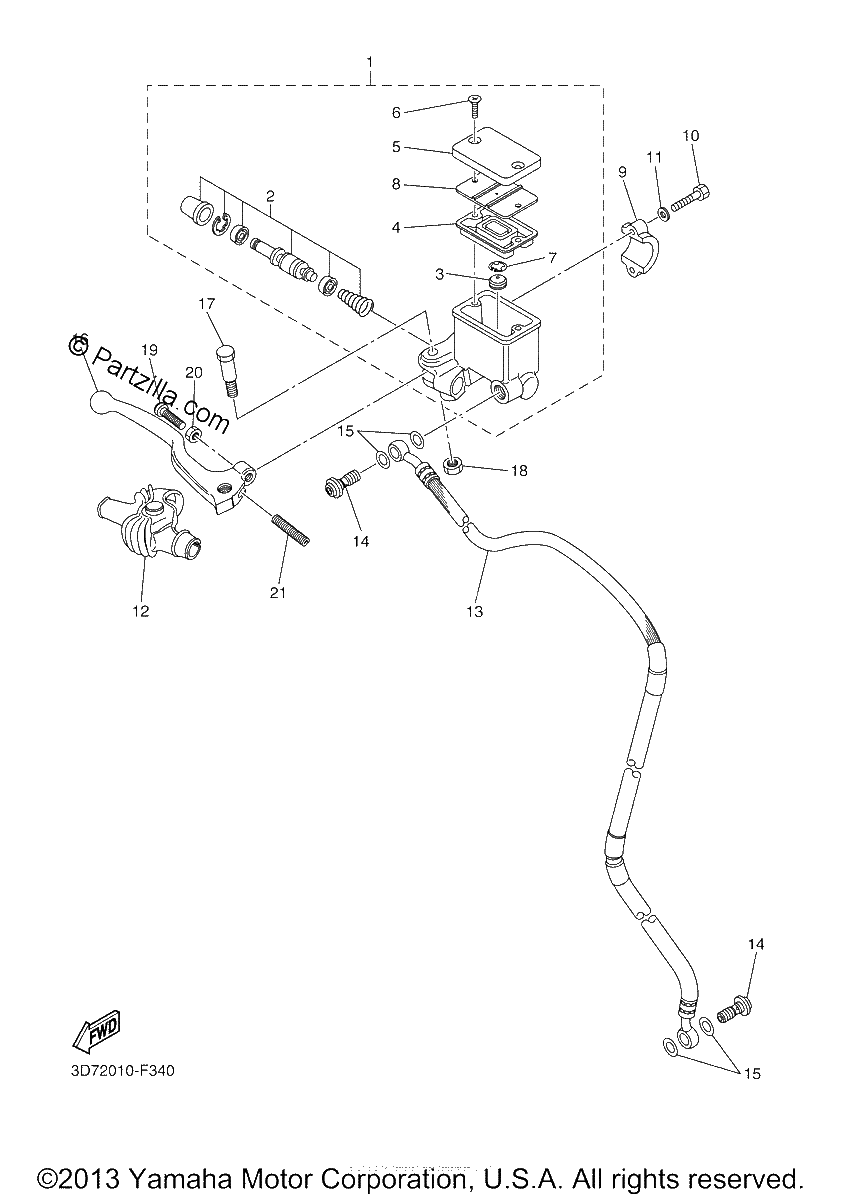

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
3D7-W2587-10-00
MASTER CYLINDER SUB ASSY
$235.29¢117 644
1
#2
5VK-25807-00-00
CYL KIT,MASTER
$80.69¢40 344
1
#3
5CG-25715-00-00
SEPARATOR ASSY
$12.60¢6 300
1
#4
55U-25854-00-00
DIAPHRAGM, RESERVOIR
$25.82¢12 913
1
#5
3GM-25852-22-00
CAP, RESERVOIR
$66.19¢33 094
1
#6
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#7
5CG-2585G-00-00
CIRCLIP
$5.88¢2 938
1
#8
3GM-2585B-20-00
PLATE, DIAPHRAGM
$19.82¢9 913
1
#9
56A-25867-00-00
BRACKET, MASTER CYLINDER
$29.36¢14 681
1
#10
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#11
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#12
1T5-26372-00-00
COVER,HANDLE LEVER
$21.26¢10 631
1
#13
3D7-25872-10-00
HOSE, BRAKE 1
$101.55¢50 775
1
#14
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#15
90430-10005-00
GASKET
$8.39¢4 194
1
#16
55Y-83922-02-00
LEVER 2
$41.28¢20 638
1
#17
90109-06577-00
BOLT
$6.41¢3 206
1
#18
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#19
90149-06131-00
SCREW
$7.34¢3 669
1
#20
90170-06021-00
NUT
$3.49¢1 744
1
#21
90501-10312-00
SPRING,COMPRESSION
$7.34¢3 669
1
