WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

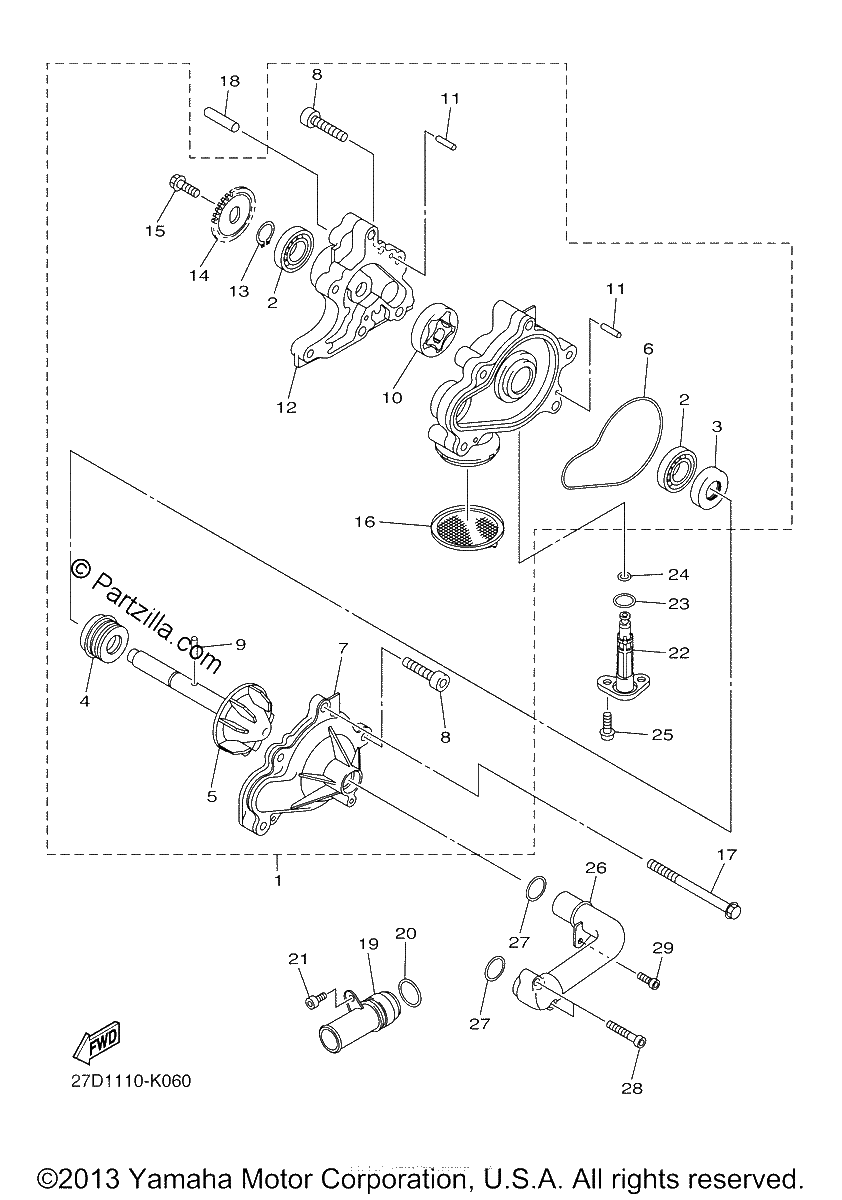

Diagrama de WATER PUMP

Repuestos

#1
3D8-12420-03-00
WATER PUMP ASSY
$458.37¢229 183
1
#2
93306-00105-00
BEARING
$27.84¢13 921
1
#3
93102-12372-00
OIL SEAL
$10.74¢5 371
1
#4
11H-12438-10-00
SEAL, MECHANICAL
$57.33¢28 664
1
#5
3D8-12450-01-00
IMPELLER SHAFT ASSY
$46.74¢23 368
1
#6
3D8-12439-00-00
O-RING
$13.49¢6 745
1
#7
3D8-12422-00-00
COVER, HOUSING
$72.42¢36 208
1
#8
91317-06025-00
BOLT
$2.24¢1 121
1
#9
93603-17070-00
PIN, DOWEL
$3.42¢1 708
1
#10
3D8-13310-00-00
ROTOR ASSY 1
$32.18¢16 089
1
#11
93603-12007-00
PIN, DOWEL
$1.81¢903
1
#12
3D8-13336-00-00
HOUSING, ROTOR
$58.10¢29 049
1
#13
99009-12400-00
CIRCLIP
$3.37¢1 685
1
#14
3D8-13355-00-00
SPROCKET, DRIVEN
$21.21¢10 603
1
#15
90105-06066-00
BOLT, FLANGE
$6.89¢3 444
1
#16
3D8-13411-00-00
STRAINER, OIL
$14.13¢7 067
1
#17
90110-08049-00
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
1
#18
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#19
3D8-1248E-01-00
PIPE 9
$50.62¢25 312
1
#20
93210-27778-00
O-RING
$7.56¢3 778
1
#21
91317-06012-00
BOLT
$6.75¢3 375
1
#22
27D-12562-00-00
BODY, DRAIN COCK
$137.46¢68 730
1
#23
93210-15639-00
O-RING
$5.45¢2 726
1
#24
93210-07540-00
O-RING
$6.32¢3 162
1
#25
90110-06219-00
BOLT, HEXAGON SOCKET HEAD
$5.96¢2 978
1
#26
3D8-12564-00-00
PIPE, WATER
$121.70¢60 852
1
#27
93210-235A1-00
O-RING
$6.30¢3 151
1
#28
90110-06208-00
BOLT, HEXAGON SOCKET HEAD
$3.14¢1 570
1
#29
91317-06016-00
BOLT
$1.35¢673
1
