FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

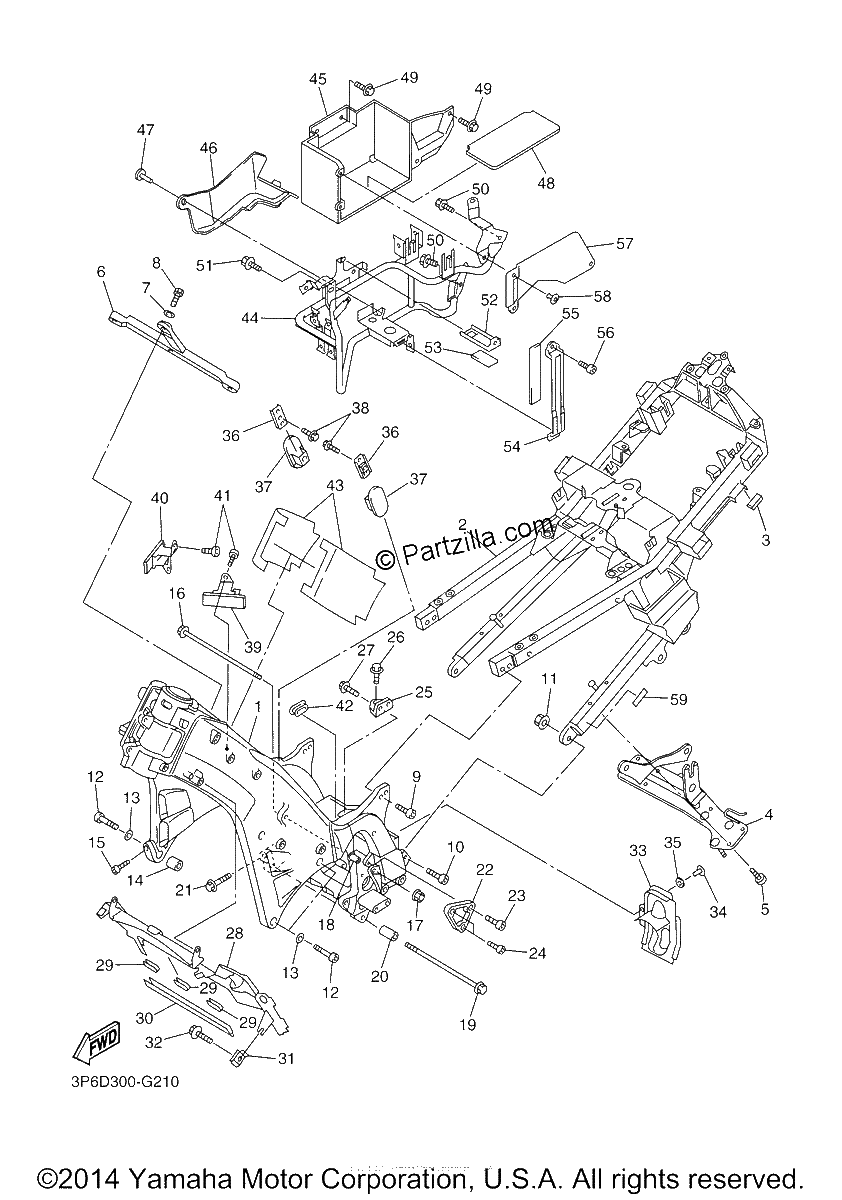

Diagrama de FRAME

Repuestos

#1
3P6-21110-00-00
FRAME COMP.
$3324.99¢1 662 494
1
#2
3P6-21190-01-00
REAR FRAME COMP.
$1590.56¢795 281
1
#3
3P6-21652-00-00
PROTECTOR
$3.73¢1 863
1
#4
3P6-2115A-10-00
MEMBER 1
No Disponible
1
#5
90149-06302-00
SCREW
$5.11¢2 556
1
#6
3P6-21119-00-00
CROSS-TUBE
$361.90¢180 950
1
#7
90201-106F2-00
WASHER, PLATE
$9.13¢4 563
1
#8
95817-10030-00
BOLT,FLANGE (replaces 95827-10030-00)
$7.34¢3 669
1
#9
91317-08025-00
BOLT
$7.43¢3 713
1
#10
91314-10030-00
BOLT, HEXAGON SOCKET HEAD
$5.44¢2 719
1
#11
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#12
91314-12055-00
BOLT, HEXAGON SOCKET HEAD
$9.16¢4 581
1
#13
92907-12600-00
WASHER (replaces 92902-12600-00)
$1.46¢731
1
#14
90387-1312P-00
COLLAR
$20.78¢10 388
1
#15
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
1
#16
95817-10235-00
BOLT, FLANGE
No Disponible
1
#17
90179-10696-00
NUT
$8.16¢4 081
1
#18
4C8-21495-00-00
BOLT, ENGINE ADJUSTING
$22.63¢11 313
1
#19
90105-10781-00
BOLT, FLANGE
$13.83¢6 913
1
#20
90560-10364-00
SPACER
$16.66¢8 331
1
#21
95022-08035-00
Bolt, Flange
$3.88¢1 938
1
#22
3P6-21315-00-00
STAY, ENGINE 1
$13.27¢6 637
1
#23
91314-10020-00
BOLT, HEXAGON SOCKET HEAD
$8.22¢4 113
1
#24
91314-08016-00
BOLT, HEXAGON SOCKET HEAD
$8.45¢4 225
1
#25
5JW-21316-00-00
STAY, ENGINE 2
$78.94¢39 469
1
#26
90101-10M05-00
BOLT (L=25, P=1.25)
$6.29¢3 144
1
#27
90105-08307-00
BOLT, FLANGE
$7.48¢3 738
1
#28
3P6-2137Y-00-00
GUIDE, AIR
$41.97¢20 987
1
#29
3P6-21269-00-00
SEAL
$1.39¢694
1
#30
3P6-21469-00-00
SEAL, AIR
$6.06¢3 031
1
#31
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#32
90119-06172-00
BOLT, WITH WASHER
$7.14¢3 569
1
#33
3P6-2147J-00-00
COVER, SHAFT 1
$4.46¢2 231
1
#34
90269-07008-00
RIVET
$3.02¢1 513
1
#35
90202-06058-00
WASHER, PLATE
$4.16¢2 081
1
#36
5JW-2118U-00-00
BRACKET 3
$13.90¢6 950
1
#37
5JW-2113N-00-00
BRACKET, INNER 1
$34.74¢17 369
1
#38
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#39
5JW-2113R-00-00
BRACKET, INNER 2
$27.44¢13 719
1
#39
5JW-28425-00-00
DAMPER 3
$7.86¢3 931
1
#40
5JW-2113R-10-00
BRACKET, INNER 2
$23.03¢11 513
1
#41
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#42
5JW-2143A-00-00
CAP
$38.46¢19 231
1
#43
5JW-21852-00-00
DAMPER
$10.00¢5 000
1
#44
3P6-28321-00-00
STAY 1
$151.85¢75 925
1
#45
3P6-2177G-00-00
BOX, BATTERY
$31.70¢15 850
1
#46
3P6-2137K-00-00
GUIDE, AIR 3
$32.98¢16 488
1
#47
90269-05074-00
RIVET
$1.90¢950
1
#48
5VX-82122-00-00
SEAT, BATTERY
$3.73¢1 863
1
#49
90119-06209-00
BOLT, WITH WASHER
$6.70¢3 350
1
#50
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#51
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#52
5JW-28357-00-00
STAY 2
$17.56¢8 781
1
#54
5JW-28358-00-00
STAY 3
$19.00¢9 500
1
#55
5JW-28435-00-00
DAMPER 4
$2.14¢1 069
1
#56
91317-06012-00
BOLT
$7.34¢3 669
1
#57
5JW-2172W-00-00
COVER
No Disponible
1
#58
90269-06001-00
RIVET
$6.45¢3 225
1
#59
5JW-2151A-02-00
LABEL 1
$7.86¢3 931
1
