REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

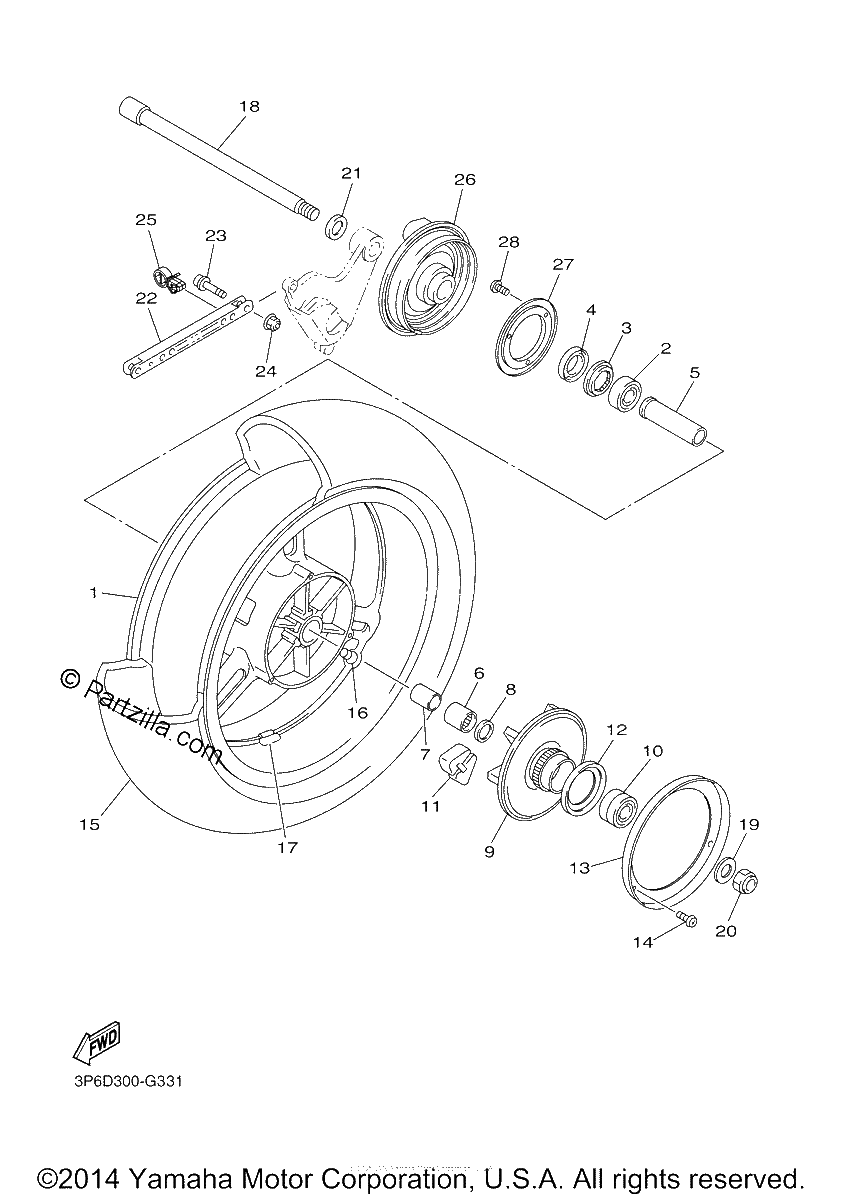

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#0
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#1
3P6-25338-01-P0
CAST WHEEL, REAR | S8
$680.79¢340 394
1
#2
93306-30446-00
BEARING
$69.61¢34 805
1
#3
3P6-2538E-00-00
NUT, ADJUSTING
$69.45¢34 724
1
#4
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#5
3P6-25317-00-00
SPACER, BEARING
$38.94¢19 469
1
#6
93317-42592-00
BEARING
$53.03¢26 513
1
#7
5JW-25383-00-00
COLLAR, WHEEL
$38.67¢19 337
1
#8
93101-25104-00
OIL SEAL
$7.96¢3 979
1
#9
5JW-25366-00-00
CLUTCH, HUB
$216.98¢108 491
1
#10
93306-20480-00
BEARING
$42.62¢21 310
1
#11
5JW-25364-00-00
DAMPER
$25.27¢12 633
1
#12
5JW-25319-00-00
SEAL, HUB DUST
$35.20¢17 601
1
#13
5JW-25327-00-00
COVER, PLATE
$77.02¢38 508
1
#14
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#15
94118-17070-00
TIRE (180/55ZR17M/C 73W) | UR BRIDGESTONE
No Disponible
1
#16
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#17
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#18
5JW-25381-10-00
AXLE, WHEEL
$97.20¢48 599
1
#19
90201-181U5-00
WASHER, PLATE
$22.65¢11 327
1
#20
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#21
92903-20600-00
WASHER
$7.30¢3 651
1
#22
5JW-25371-00-00
BAR, TENSION
$54.02¢27 008
1
#23
90110-08007-00
BOLT, HEXAGON SOCKET HEAD
$6.45¢3 226
1
#24
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#25
90464-23239-00
CLAMP
$1.94¢972
1
#26
3P6-2537A-00-00
HOUSING, SENSOR REAR
$292.50¢146 251
1
#27
3P6-2517G-00-00
ROTOR, SENSOR
$43.49¢21 746
1
#28
90149-05030-00
SCREW
$2.33¢1 167
1
