TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

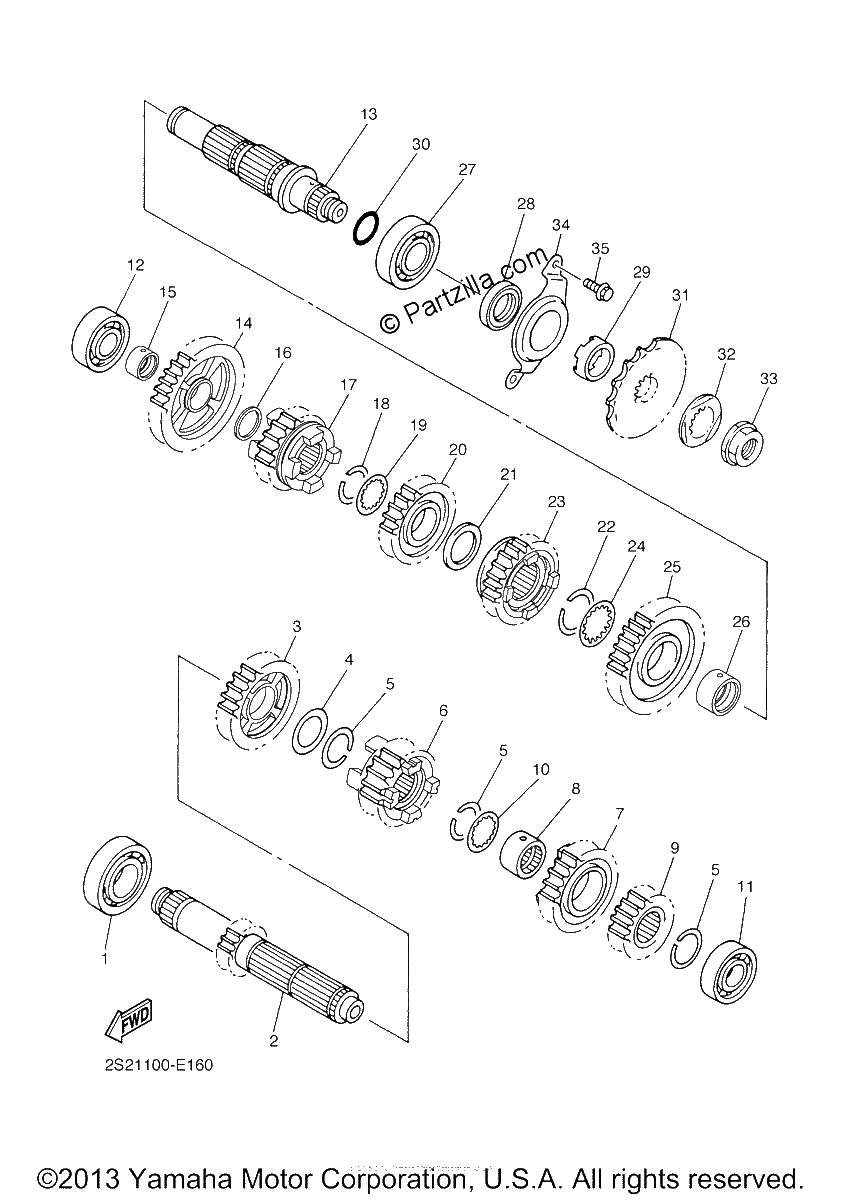

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$68.65¢34 325
1
#2
5TJ-17411-30-00
Axle, Main
$206.10¢103 050
1
#3
5TJ-17151-20-00
GEAR, 5TH PINION (25T)
$65.29¢32 644
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#5
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#6
5TJ-17131-20-00
GEAR, 3RD PINION (16T)
$256.31¢128 156
1
#7
5TJ-17141-20-00
GEAR, 4TH PINION
$91.50¢45 750
1
#8
90387-21005-00
Collar
$29.81¢14 906
1
#9
5TJ-17121-20-00
GEAR, 2ND PINION (15T)
$70.84¢35 419
1
#10
90209-21332-00
WASHER
$8.03¢4 013
1
#11
93306-00431-00
BEARING
$43.49¢21 744
1
#12
93306-00426-00
BEARING
$43.60¢21 800
1
#13
2S2-17402-00-00
DRIVE AXLE ASSY
$270.48¢135 238
1
#14
5TJ-17211-20-00
GEAR, 1ST WHEEL
$120.89¢60 444
1
#15
90387-20028-00
Collar
$24.22¢12 112
1
#16
90201-203E7-00
WASHER,PLATE
$8.60¢4 300
1
#17
5TJ-17251-20-00
GEAR, 5TH WHEEL(21T)
$193.41¢96 706
1
#18
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#19
90209-21332-00
WASHER
$8.03¢4 013
1
#20
5TJ-17231-20-00
GEAR, 3RD WHEEL (21T)
$81.39¢40 694
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#23
5TJ-17241-20-00
GEAR, 4TH WHEEL
$143.69¢71 844
1
#24
90209-26348-00
WASHER
$11.49¢5 744
1
#25
5TJ-17221-20-00
GEAR, 2ND WHEEL (26T)
$86.41¢43 206
1
#26
90387-28012-00
Collar
$32.06¢16 031
1
#27
93306-205A5-00
BEARING
$63.35¢31 675
1
#28
93102-32480-00
Oil Seal
$19.90¢9 950
1
#29
90387-2513F-00
Collar
$40.65¢20 325
1
#30
93210-22298-00
O-RING
$7.81¢3 906
1
#31
5TJ-17460-00-00
SPROCKET DRIVE (13T)
$39.71¢19 856
1
#32
90215-21003-00
Washer, Lock
$6.41¢3 206
1
#33
90179-20001-00
Nut
$16.43¢8 213
1
#34
2S2-17471-00-00
PLATE, COVER
$20.80¢10 400
1
#35
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
