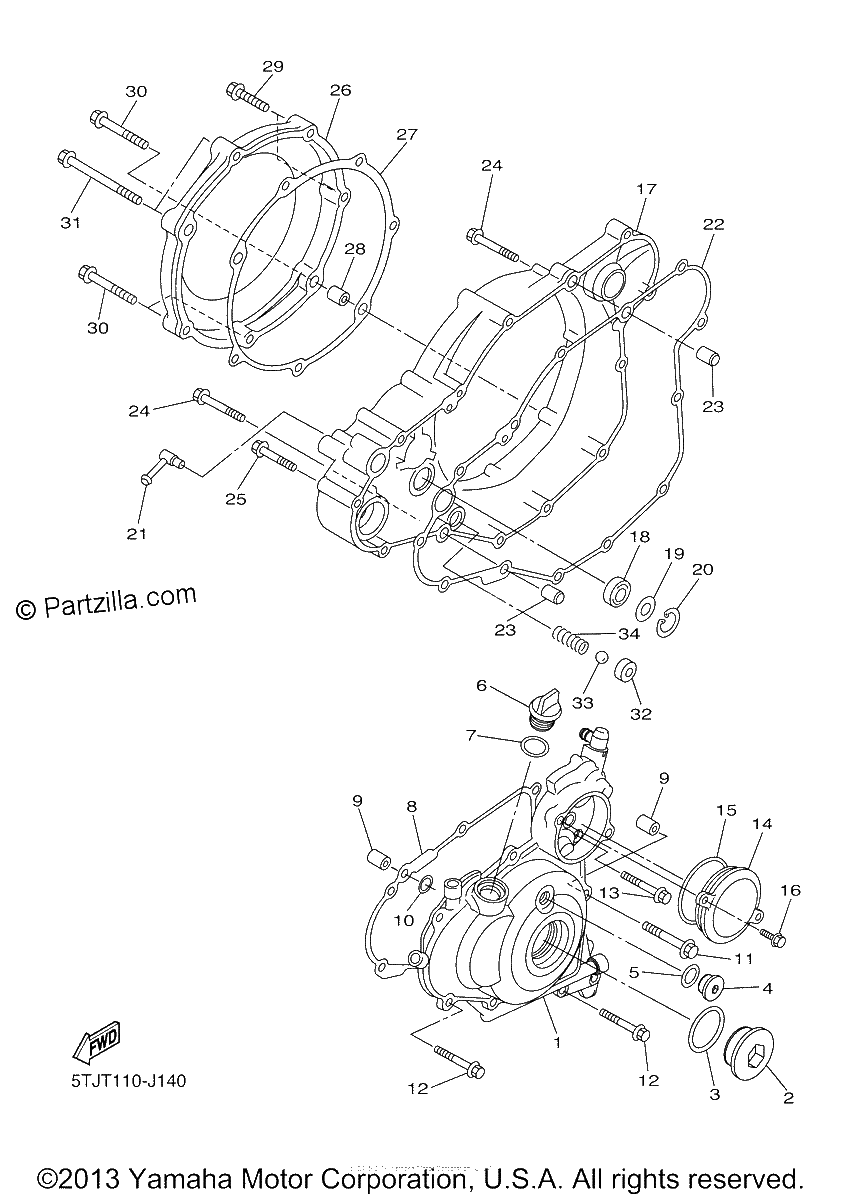

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$283.71¢141 856
#2
PLUG, STRAIGHT SCREW
$34.05¢17 025
#3
O-RING
$8.21¢4 106
#4
PLUG, STRAIGHT SCREW
$32.86¢16 431
#5
O-Ring
$6.91¢3 456
#6
PLUG, OIL
$20.35¢10 175
#7
O-Ring
$8.24¢4 119
#8
GASKET, CRANKCASE COVER 1 | INC. IN BOTTOM END GASKET KIT
$21.56¢10 781
#9
PIN, DOWEL
$6.71¢3 356
#10
O-RING (replaces 93210-08810-00)
$8.16¢4 081
#11
Bolt, Flange
$3.57¢1 787
#12
BOLT, FLANGE
$1.68¢838
#13
BOLT, FLANGE
$3.96¢1 981
#14
COVER ASSY 2
$75.70¢37 850
#15
O-RING
$10.77¢5 387
#16
BOLT, FLANGE
$3.96¢1 981
#17
COVER, CRANKCASE 3
$523.31¢261 656
#18
OIL SEAL
$11.55¢5 775
#19
WASHER, PLATE (T=1.0)
$7.34¢3 669
#20
CIRCLIP
$7.35¢3 675
#21
PIPE, BREATHER
$54.60¢27 300
#22
GASKET, CRANKCASE COVER 3 | INC. IN BOTTOM END GASKET KIT
$31.88¢15 938
#23
PIN, DOWEL
$6.15¢3 075
#24
Bolt, Flange
$3.57¢1 787
#25
BOLT, FLANGE
$1.68¢838
#26
COVER, GENERATOR
$181.02¢90 512
#27
GASKET | INCL. IN CLUTCH PLATE AND GASKET KITS
$23.10¢11 550
#28
PIN, DOWEL
$6.71¢3 356
#29
BOLT, FLANGE
$1.68¢838
#30
Bolt, Flange
$3.57¢1 787
#31
BOLT, FLANGE (replaces 9502L-06080-00)
$4.20¢2 100
#32
SEAT, CHECK BALL
$24.57¢12 288
#33
BALL
$2.88¢1 438
#34
SPRING, COMPRESSION
$4.34¢2 169
