REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

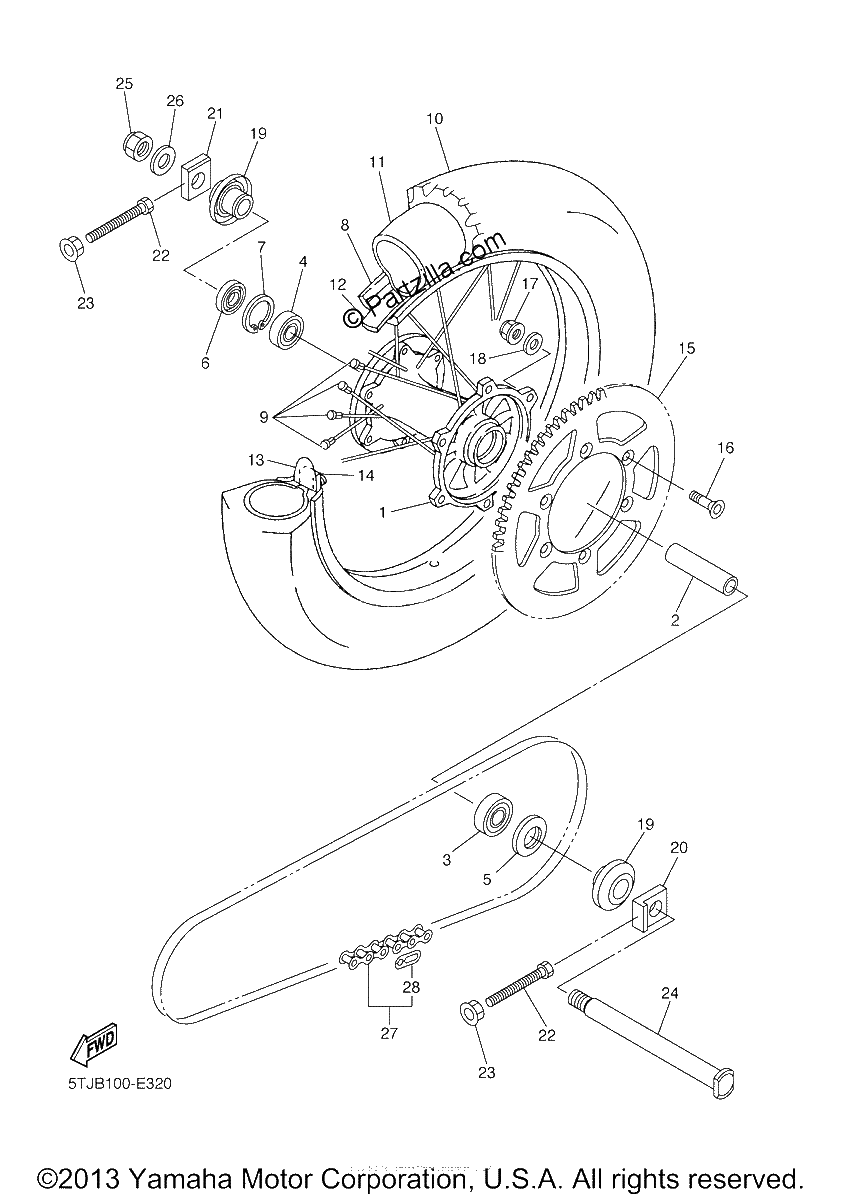

Diagrama de REAR WHEEL

Repuestos

#0
5GS-25448-50-00
SPROCKET, DRIVEN (48T) | AP
$49.19¢24 593
1
#0
5TJ-25450-80-00
SPROCKET, DRIVEN (50T) | STD
$65.64¢32 821
1
#1
5ET-25311-00-00
HUB, REAR
$293.20¢146 602
1
#2
5ET-25317-00-00
SPACER, BEARING
$46.98¢23 489
1
#3
93306-27212-00
BEARING
$72.21¢36 104
1
#4
93306-07202-00
BEARING
$36.97¢18 486
1
#5
93106-30001-00
OIL SEAL
$10.97¢5 485
1
#6
93106-30045-00
OIL SEAL
$8.69¢4 347
1
#7
99009-45500-00
CIRCLIP
$2.74¢1 368
1
#8
94421-18008-00
RIM (2.15-18)
$365.37¢182 683
1
#9
5GS-25304-00-00
SPOKE SET, REAR
$193.40¢96 698
1
#10
94111-18012-00
TIRE (110/100-18 64M D756) | DUNLOP
No Disponible
1
#11
94212-18188-00
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$36.50¢18 251
1
#12
94340-18086-00
BAND, RIM (2.50-18) | BRIDGESTONE
$17.54¢8 769
1
#13
3JE-25394-00-00
SPACER,BEAD
$36.54¢18 268
1
#14
4XM-25364-00-00
Damper
$7.28¢3 640
1
#15
5TJ-25452-80-00
SPROCKET, DRIVEN (52T) | AP
$90.34¢45 172
1
#16
90109-08078-00
bolt
$5.65¢2 823
1
#17
90185-08008-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#18
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
#19
5TJ-2530S-80-00
COLLAR ASSY
$31.98¢15 991
1
#20
1C3-25388-H0-00
PULLER, CHAIN 1
$22.23¢11 115
1
#21
1C3-25389-H0-00
PULLER, CHAIN 2
$27.31¢13 656
1
#22
90101-08006-00
bolt
$7.37¢3 686
1
#23
90179-08019-00
Nut
$5.73¢2 864
1
#24
1C3-25381-90-00
AXLE, WHEEL
$90.13¢45 063
1
#25
90185-20002-00
NUT, SELF-LOCKING
$24.84¢12 420
1
#26
90201-20020-00
WASHER, PLATE
$8.41¢4 203
1
#27
94581-76114-00
CHAIN D.I.D.520VM
No Disponible
1
#28
94681-76021-00
JOINT, CHAIN (DID 520VM-ZJ)
No Disponible
1
