CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

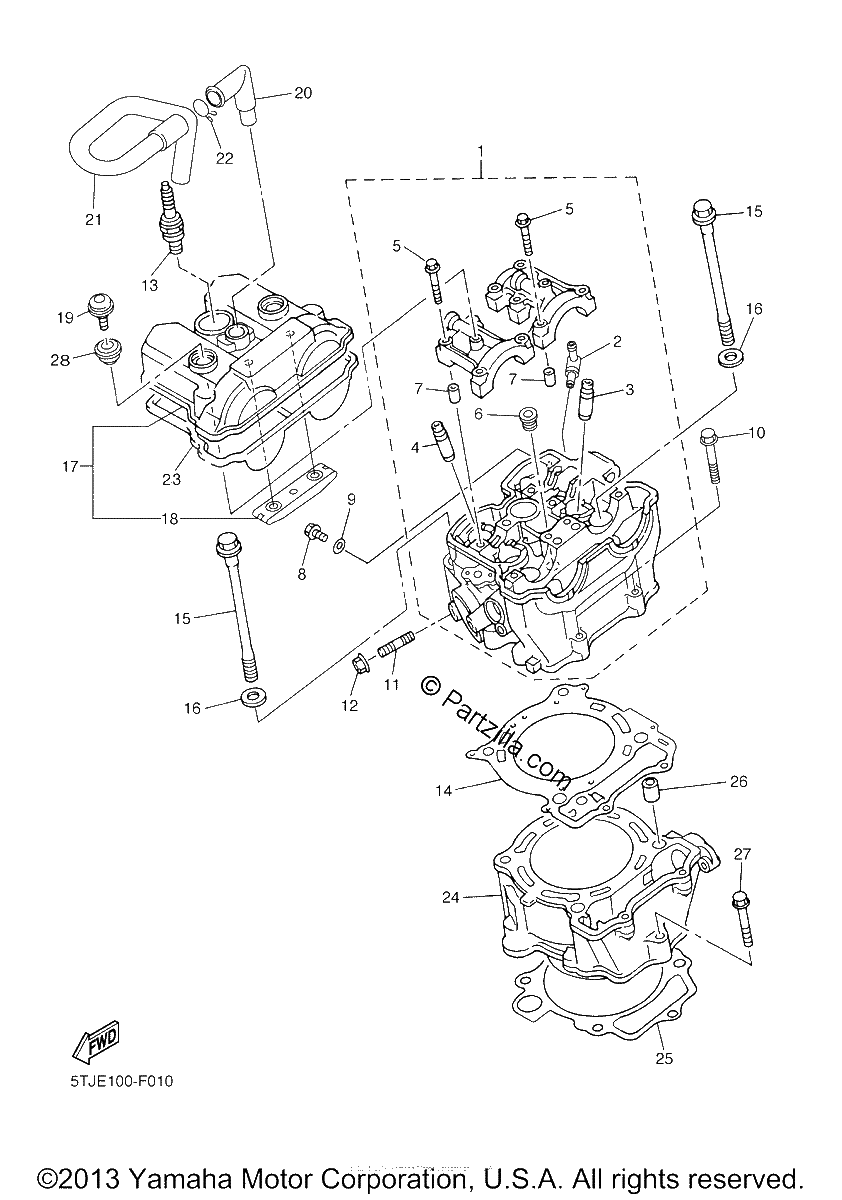

Diagrama de CYLINDER

Repuestos

#1
5TJ-11101-10-00
CYLINDER HEAD ASSY
$1523.71¢761 856
1
#2
353-13115-01-00
CONNECTOR, SUCTION PIPE
$6.26¢3 131
1
#3
5TA-11133-10-00
GUIDE, VALVE 1
$66.19¢33 094
1
#4
5TA-11134-10-00
GUIDE, EXHAUST VALVE
$56.74¢28 369
1
#5
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#6
90340-12007-00
PLUG, STRAIGHT SCREW
$7.43¢3 713
1
#7
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#8
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
#11
90116-08022-00
BOLT, STUD
$6.99¢3 494
1
#12
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#13
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$10.74¢5 369
1
#14
2S2-11181-00-00
GASKET, CYLINDER HEAD 1 | INC. IN TOP END GASKET KIT
$55.79¢27 894
1
#15
90105-10163-00
BOLT, FLANGE
$9.91¢4 956
1
#16
90201-10025-00
WASHER, plate
$7.41¢3 706
1
#17
2S2-11190-20-00
COVER, CYLINDER HEAD 1
$178.46¢89 231
1
#18
5BE-12241-00-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#19
5UM-1119E-00-00
BOLT, COVER HEAD
$13.06¢6 531
1
#20
3P6-11167-00-00
PIPE, BREATHER 2
$25.38¢12 688
1
#21
5TJ-11166-10-00
PIPE, BREATHER 1
$22.01¢11 006
1
#22
90467-160A4-00
CLIP
$7.69¢3 844
1
#23
2S2-11193-00-00
GASKET, HEAD COVER 1 | INC. IN TOP END GASKET KIT
$43.49¢21 744
1
#24
2S2-11311-11-00
CYLINDER 1
$661.70¢330 850
1
#25
2S2-11351-00-00
GASKET, CYLINDER | INC. IN TOP END GASKET KIT
$22.69¢11 344
1
#26
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#27
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
#28
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
