CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

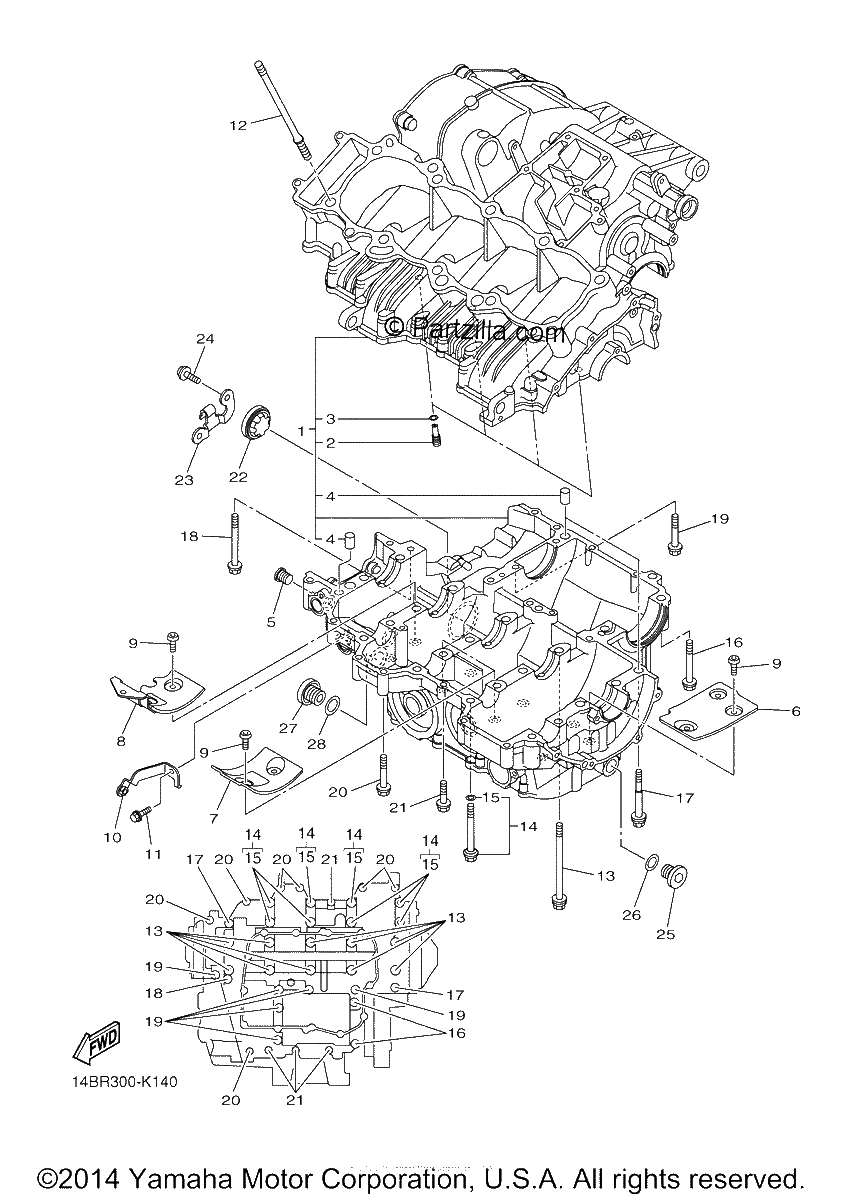

Diagrama de CRANKCASE

Repuestos

#1
14B-15100-08-00
CRANKCASE ASSY
$1368.49¢684 244
1
#2
5EB-15155-00-00
NOZZLE 3
$13.48¢6 739
1
#3
93210-04092-00
O-RING
$3.16¢1 581
1
#4
99510-10114-00
PIN, DOWEL
$2.50¢1 248
1
#5
90340-12112-00
PLUG, STRAIGHT SCREW
$9.19¢4 594
1
#6
14B-15123-00-00
PLATE, BAFFLE 1
$12.45¢6 227
1
#7
14B-15124-00-00
PLATE, BUFFLE 2
$21.87¢10 936
1
#8
14B-15133-00-00
PLATE, BUFFLE 3
$30.82¢15 410
1
#9
90149-06081-00
SCREW
$6.75¢3 375
1
#10
14B-28322-00-00
STAY 2
$30.61¢15 307
1
#11
90105-06181-00
Bolt, Flange
$1.64¢822
1
#12
90116-10051-00
BOLT, STUD
$9.80¢4 899
1
#13
90119-09010-00
BOLT, WITH WASHER
$12.60¢6 302
1
#14
14B-15156-00-00
BOLT, CRANKCASE JOURNAL
$8.26¢4 129
1
#15
93210-07540-00
O-RING
$6.32¢3 162
1
#16
95817-08060-00
BOLT, FLANGE
$3.58¢1 788
1
#17
90109-06100-00
BOLT
$8.34¢4 169
1
#18
95812-06070-00
BOLT, FLANGE
$7.10¢3 548
1
#19
95812-06060-00
Bolt, Flange
$2.93¢1 466
1
#20
95812-06050-00
BOLT, FLANGE
$1.66¢828
1
#21
95812-06040-00
BOLT, FLANGE
$4.98¢2 490
1
#22
5PW-15361-00-00
GAUGE, LEVEL
$37.35¢18 676
1
#23
14B-15441-01-00
HOLDER, CLUTCH CABLE
$27.95¢13 973
1
#24
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#25
36Y-15189-00-00
PLUG
$13.19¢6 595
1
#26
93210-16325-00
O-RING
$6.43¢3 214
1
#27
4H7-15189-00-00
PLUG
$28.30¢14 151
1
#28
93210-207A0-00
O-Ring
$1.06¢529
1
