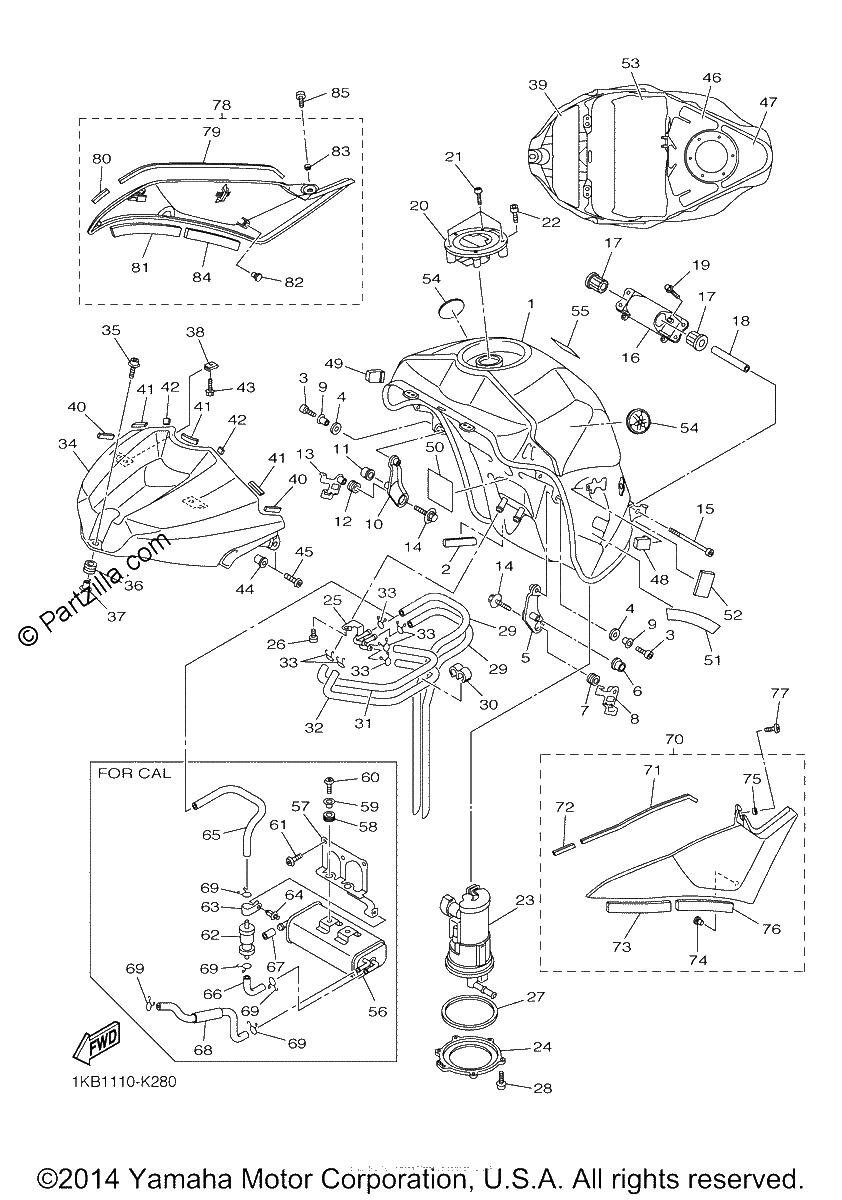

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
COVER, TOP | Use for Color Black Metallic X ( SMX / 0903 )
$252.16¢126 080
#0
PIPE 3 | FOR CALIFORNIA
$29.13¢14 565
#0
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$836.04¢418 019
#1
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$928.04¢464 019
#2
MOLD, FUEL TANK
$19.53¢9 763
#3
BOLT
$5.37¢2 685
#4
DAMPER, LOCATING 3
$7.15¢3 577
#5
BRACKET, FUEL TANK 1
$49.31¢24 656
#6
DAMPER, LOCATING 1
$7.04¢3 519
#7
GROMMET
$10.76¢5 382
#8
HOLDER, CABLE
$14.92¢7 458
#9
COLLAR
$5.97¢2 984
#10
BRACKET, FUEL TANK 2
No Disponible
#11
DAMPER, LOCATING 1
$7.04¢3 519
#12
GROMMET
$10.76¢5 382
#13
HOLDER, CLUTCH CABLE
$14.60¢7 302
#14
BOLT, WITH WASHER
$6.88¢3 439
#15
BOLT, HEXAGON SOCKET HEAD
$5.08¢2 541
#16
BRACKET, TANK FITTING
$58.78¢29 388
#17
DAMPER, LOCATING 3
$7.04¢3 519
#18
COLLAR
$4.77¢2 386
#19
BOLT, HEXAGON SOCKET
$8.39¢4 198
#20
CAP ASSY
$248.96¢124 482
#21
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#22
BOLT
$5.39¢2 697
#23
FUEL PUMP COMP.
$517.70¢258 848
#24
BRACKET, FUEL PUMP
$40.32¢20 160
#25
CLAMP 1
$28.04¢14 018
#26
BOLT
$5.69¢2 846
#27
O-RING
$40.92¢20 458
#28
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#29
PIPE 2 | FOR CALIFORNIA
$49.93¢24 967
#30
CLAMP
$6.77¢3 387
#31
PIPE 3
$11.81¢5 905
#32
PIPE 4
No Disponible
#33
Clip
$2.74¢1 368
#34
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$253.99¢126 995
#35
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#36
GROMMET
$6.83¢3 415
#37
COLLAR
$7.64¢3 818
#38
NUT, SPRING
$8.14¢4 071
#39
DAMPER, PLATE 1
$10.05¢5 026
#39
DAMPER, PLATE
$9.10¢4 548
#40
DAMPER, LOCATING 2
$7.08¢3 542
#41
DAMPER, LOCATING 1
$7.23¢3 617
#42
DAMPER, LOCATING 1
$7.31¢3 657
#43
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
#44
NUT
$6.23¢3 117
#45
SCREW, BIND
$1.32¢661
#46
DAMPER, PLATE 4
$51.66¢25 829
#47
DAMPER, PLATE 5
$39.01¢19 504
#48
DAMPER, SIDE COVER
$7.04¢3 519
#49
DAMPER, SIDE COVER
$7.04¢3 519
#50
DAMPER
$7.31¢3 657
#51
DAMPER, PLATE 3
$3.07¢1 535
#52
SEAL
$9.36¢4 681
#54
EMBLEM
$24.39¢12 196
#55
LABEL, CAUTION
$7.22¢3 611
#56
CANISTER ASSY | FOR CALIFORNIA
$333.30¢166 652
#57
BRACKET, CANISTOR | FOR CALIFORNIA
$56.37¢28 187
#58
GROMMET
$6.83¢3 415
#59
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#60
BOLT, BUTTON HEAD
$6.82¢3 410
#61
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
#62
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
#63
Clamp
$2.16¢1 081
#64
RIVET
$2.50¢1 248
#65
PIPE 5 | FOR CALIFORNIA
$27.44¢13 719
#66
PIPE 6 | FOR CALIFORNIA
$11.87¢5 934
#67
HOSE (L70)
$6.38¢3 191
#68
PIPE | FOR CALIFORNIA
$25.60¢12 800
#69
Clip
$2.74¢1 368
#70
TANK SIDE COVER ASSY 1
$139.08¢69 541
#71
DAMPER, PLATE 1
$7.23¢3 617
#72
DAMPER, PLATE 2
$7.31¢3 657
#73
DAMPER, PLATE 2
$6.03¢3 013
#74
PLUG
$6.22¢3 111
#75
SPACER
$4.22¢2 110
#76
DAMPER, PLATE
$3.58¢1 788
#77
SCREW, BIND
$1.35¢673
#78
TANK SIDE COVER ASSY 2
$99.29¢49 646
#79
DAMPER, PLATE 1
$7.23¢3 617
#80
DAMPER, PLATE 2
$7.31¢3 657
#81
DAMPER, PLATE 2
$6.03¢3 013
#82
PLUG
$6.22¢3 111
#83
SPACER
$4.22¢2 110
#84
DAMPER, PLATE
$3.58¢1 788
#85
SCREW, BIND
$1.35¢673
