TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

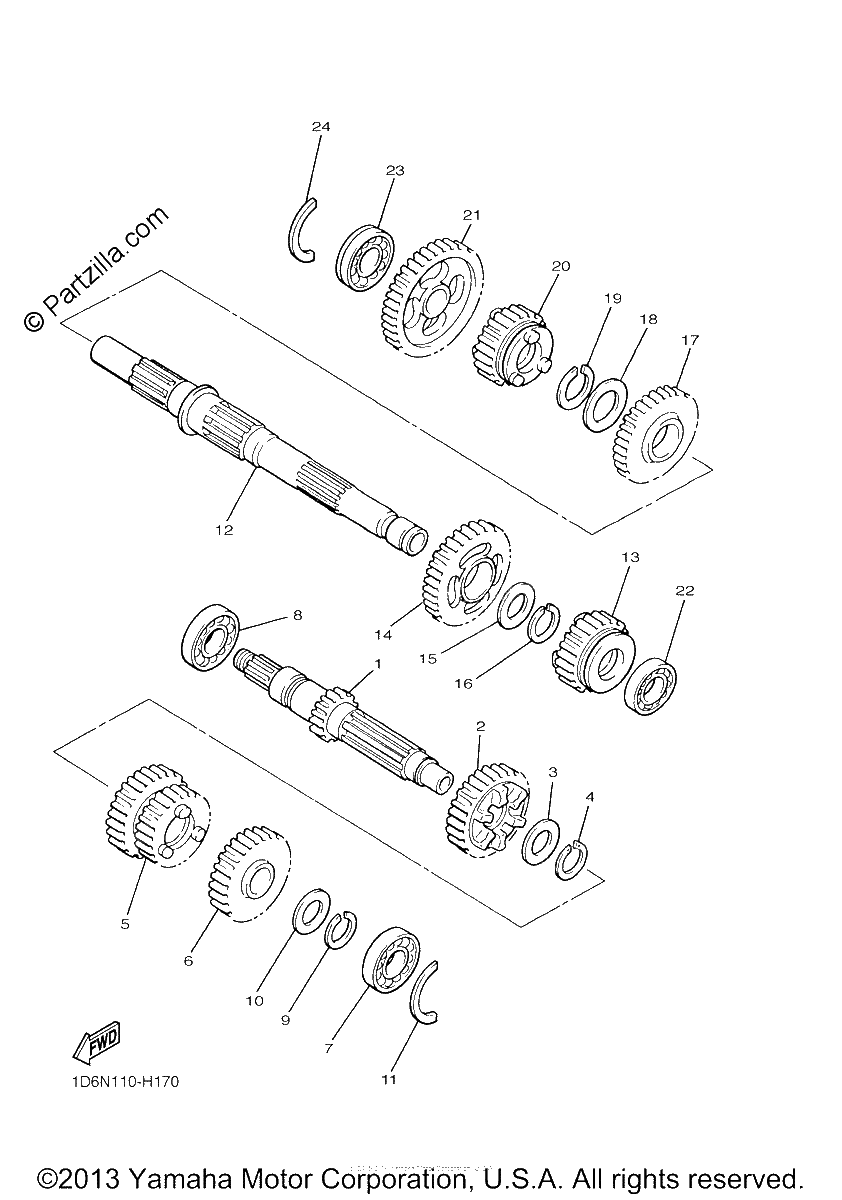

Diagrama de TRANSMISSION

Repuestos

#1
4XY-17411-00-00
AXLE, MAIN (17T)
$232.06¢116 031
1
#2
4XY-17141-00-00
GEAR, 4TH PINION (25T)
$91.35¢45 675
1
#3
90209-25196-00
WASHER
$3.43¢1 713
1
#4
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#5
4XY-17121-00-00
GEAR, 2ND/3RD PINION (19/25T)
$175.69¢87 844
1
#6
4XY-17151-00-00
GEAR, 5TH PINION (28T)
$113.58¢56 788
1
#7
93306-30430-00
BEARING
$55.88¢27 938
1
#8
93306-36401-00
BEARING
$80.85¢40 425
1
#9
93410-23056-00
CIRCLIP
$7.10¢3 550
1
#10
90201-232K5-00
WASHER, PLATE
$7.60¢3 800
1
#11
93440-52118-00
CIRCLIP
$2.56¢1 281
1
#12
4NK-17402-00-00
DRIVE AXLE ASSY
$197.79¢98 894
1
#13
4XY-17251-00-00
GEAR, 5TH WHEEL (22T)
$141.76¢70 881
1
#14
4XY-17221-00-00
GEAR, 2ND WHEEL (31T)
$125.85¢62 925
1
#15
90209-32231-00
WASHER
$11.44¢5 719
1
#16
93440-34025-00
CIRCLIP
$6.99¢3 494
1
#17
4XY-17231-00-00
GEAR, 3RD WHEEL (30T)
$118.69¢59 344
1
#18
90209-27192-00
WASHER
$8.35¢4 175
1
#19
93440-30077-00
CIRCLIP
$11.74¢5 869
1
#20
4XY-17241-00-00
GEAR, 4TH WHEEL (24T)
$126.55¢63 275
1
#21
4XY-17211-00-00
GEAR, 1ST WHEEL (43T)
$146.84¢73 419
1
#22
93306-20645-00
BEARING
$48.03¢24 013
1
#23
93306-20555-00
BEARING
$36.00¢18 000
1
#24
93440-52118-00
CIRCLIP
$2.56¢1 281
1
