SADDLEBAG 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

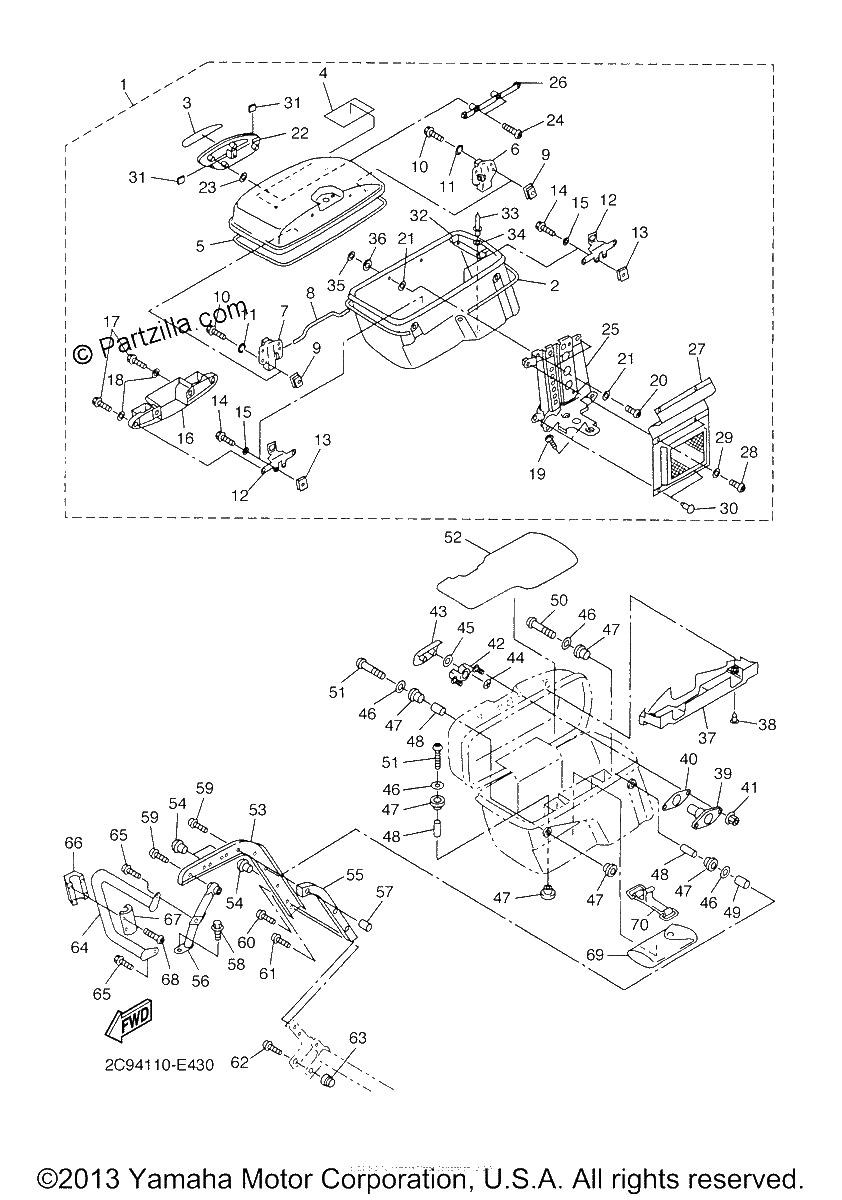

Diagrama de SADDLEBAG 2

Repuestos

#1
4XY-Y2844-4G-7Y
SADDLEBAG COMP, 2 | VPBC5/DPBMX
$2507.49¢1 253 744
1
#2
2C9-2840J-50-00
SADDLEBAG GRAPHIC SET 2
$122.40¢61 200
1
#3
4XY-2847B-50-00
ORNAMENT 2
$52.54¢26 269
1
#4
4XY-28446-02-00
LABEL, CAUTION
$9.64¢4 819
1
#5
4XY-28428-00-00
SEAL 1
$20.88¢10 438
1
#6
4XY-28494-00-00
HOOK 3
$49.81¢24 906
1
#7
4XY-28495-00-00
HOOK 4
$49.81¢24 906
1
#8
4XY-2841A-00-00
LEVER
$42.47¢21 237
1
#9
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#10
97017-05012-00
BOLT
$7.34¢3 669
1
#11
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#12
4XY-28498-00-00
HOOK 2
$24.16¢12 081
1
#13
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#14
97017-05016-00
BOLT
$2.95¢1 475
1
#15
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#16
4XY-2843J-00-00
COVER 3
$28.85¢14 425
1
#17
92017-05008-00
BOLT, BUTTON HEAD
$0.51¢256
1
#18
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#19
90167-05078-00
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
1
#20
92017-05014-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#21
90201-05556-00
WASHER, PLATE
$8.31¢4 156
1
#22
4XY-28454-10-00
HINGE 3
No Disponible
1
#23
90202-10120-00
WASHER,PLATE (replaces 90202-10165-00)
$7.01¢3 506
1
#24
92017-05020-00
BOLT, BUTTON HEAD
$3.06¢1 531
1
#25
4XY-28437-00-00
REINFORCEMENT 2
$101.44¢50 719
1
#26
4XY-2847H-00-00
PLATE 5
$41.81¢20 906
1
#27
4XY-2845M-00-00
STOPPER, OPEN
$208.34¢104 169
1
#28
92017-05014-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#29
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#30
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#31
4XY-28499-00-00
PLATE, RUBBER 4
$4.60¢2 300
1
#32
4XY-2843L-00-00
PLATE
$8.45¢4 225
1
#33
90267-32003-00
RIVET, BLIND
$1.72¢862
1
#34
92907-03600-00
WASHER
$7.95¢3 975
1
#35
90201-08326-00
WASHER, PLATE
$7.34¢3 669
1
#36
4XY-28429-00-00
SEAL 2
$1.90¢950
1
#37
4XY-2849K-00-00
COVER LOCK ASSY 2
$38.56¢19 281
1
#38
90269-06081-00
RIVET
$6.78¢3 388
1
#39
4XY-28474-00-00
FRAME, SADDLEBAG 2
$289.93¢144 963
1
#39
4XY-W2843-00-00
LOCK ASSY 3
$157.01¢78 506
1
#40
4XY-2845J-00-00
PLATE, RUBBER 5
$5.55¢2 775
1
#41
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#42
4XY-2849H-00-00
PLATE 6
$28.10¢14 050
1
#43
4XY-2843C-00-00
COVER 6
$26.55¢13 275
1
#44
90183-04005-00
NUT,SPRING (replaces 90183-04047-00)
$0.91¢456
1
#45
4KJ-28371-00-00
DAMPER
$3.79¢1 894
1
#46
90201-065G8-00
WASHER, PLATE
$7.34¢3 669
1
#47
90480-20447-00
GROMMET
$7.34¢3 669
1
#48
90387-084R5-00
COLLAR
$8.01¢4 006
1
#49
90387-0811N-00
COLLAR
$15.94¢7 969
1
#50
92017-06055-00
BOLT, BUTTON HEAD
$2.99¢1 494
1
#51
92017-06035-00
BOLT, BUTTON HEAD
$2.82¢1 412
1
#52
4XY-2848K-01-00
SEAT 2
$38.73¢19 363
1
#54
90338-07259-00
PLUG
$4.90¢2 450
1
#55
1D6-28416-00-00
DAMPER 2
$17.75¢8 875
1
#56
4YE-28414-02-00
STAY, FRONT GUARD 2
No Disponible
1
#57
90387-0811N-00
COLLAR
$15.94¢7 969
1
#58
95817-08014-00
BOLT, FLANGE
$2.39¢1 194
1
#59
92014-08040-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#60
92014-08016-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#61
92014-08020-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#62
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#63
95307-08800-00
NUT
$6.84¢3 419
1
#64
4XY-2842K-00-00
GUARD, SADDLEBAG 2
$318.78¢159 388
1
#65
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#66
4YE-85131-00-00
REFLECTOR, REAR 1
$59.57¢29 787
1
#67
4YE-85132-00-00
BRACKET, REFLECTOR 1
$34.67¢17 338
1
#68
97707-30514-00
SCREW, TAPPING
$6.91¢3 456
1
#69
4XY-28100-01-00
TOOL KIT
$148.52¢74 262
1
#70
55K-2811G-00-00
BAND
$17.46¢8 731
1
