AUDIO EQUIPMENT 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

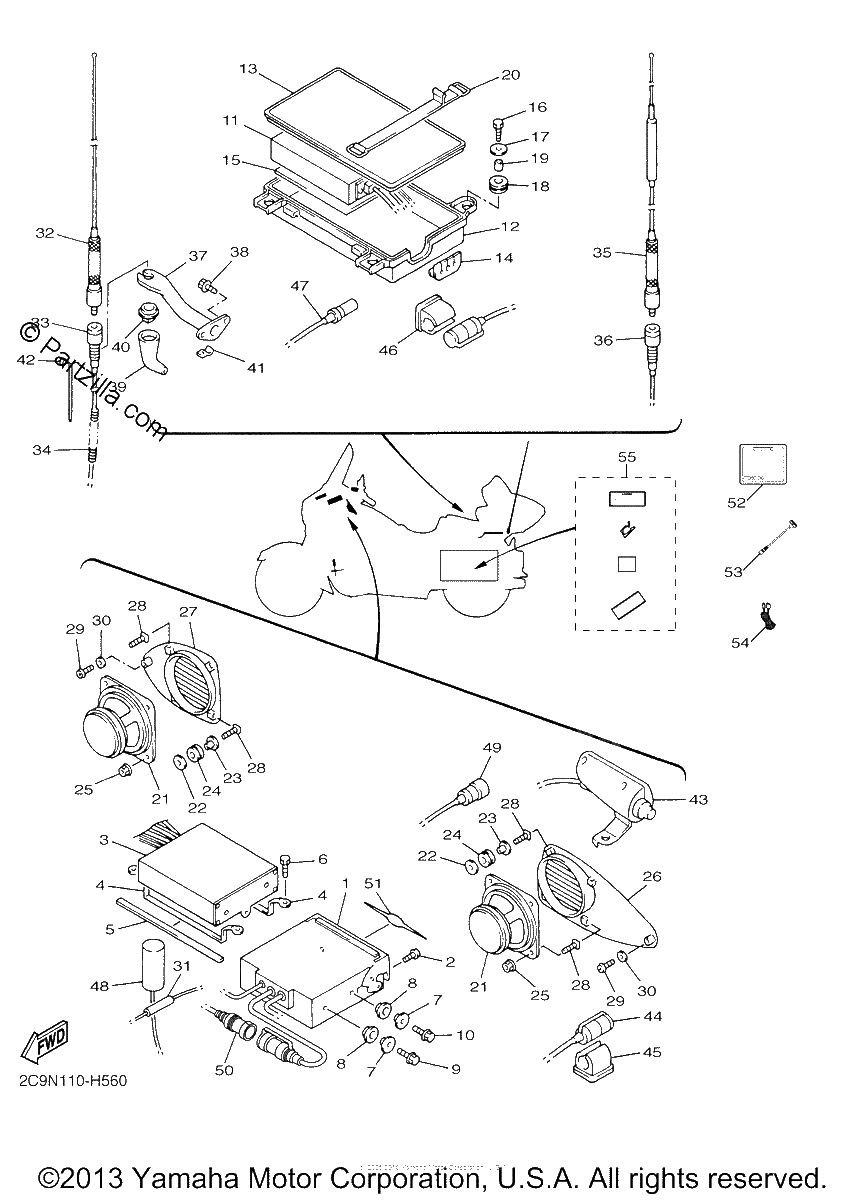

Diagrama de AUDIO EQUIPMENT 1

Repuestos

#1
2C9-88150-50-00
CASSETTE DECK ASSY
$1412.49¢706 244
1
#2
98517-04012-00
SCREW, PAN HEAD
$3.89¢1 944
1
#3
4XY-88132-01-00
AMP. POWER
$2634.99¢1 317 494
1
#4
4XY-88114-00-00
BRACKET, RADIO
$18.98¢9 488
1
#5
4XY-88149-00-00
DAMPER
$2.35¢1 175
1
#6
97027-05010-00
BOLT
$6.91¢3 456
1
#7
90387-06024-00
Collar
$10.84¢5 419
1
#8
90480-14429-00
GROMMET
$6.99¢3 494
1
#9
95027-06014-00
BOLT, FLANGE
$0.91¢456
1
#10
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#11
4XY-88182-10-00
BLACK BOX, CB
$1598.74¢799 369
1
#12
4XY-8818B-00-00
COVER 1
$41.00¢20 500
1
#13
4XY-8818C-00-00
COVER 2
No Disponible
1
#14
4XY-8818E-00-00
GASKET, CB
$13.73¢6 863
1
#15
4XY-8818D-00-00
SEAT 1
$4.75¢2 375
1
#16
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#17
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#18
90480-14450-00
GROMMET
$13.86¢6 931
1
#19
90387-07020-00
COLLAR
$7.34¢3 669
1
#20
4J2-82131-01-00
BAND, BATTERY
$28.76¢14 381
1
#21
4XY-88161-00-00
SPEAKER 1
$160.45¢80 225
1
#22
90201-061A5-00
WASHER, PLATE
$6.99¢3 494
1
#23
90387-06737-00
COLLAR
$7.88¢3 938
1
#24
90480-13163-00
GROMMET | FOR CALIFORNIA
$7.08¢3 538
1
#25
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#26
2C9-88163-50-00
GRILLE, SPEAKER 1
$214.86¢107 431
1
#27
2C9-88173-50-00
GRILLE, SPEAKER 2
$214.86¢107 431
1
#28
4XY-28333-00-00
BOLT
$1.47¢737
1
#29
97707-40012-00
SCREW, TAPPING
$7.95¢3 975
1
#30
92907-04600-00
WASHER
$1.46¢731
1
#31
4XY-88188-00-00
FILTER, NOISE
$87.83¢43 913
1
#32
4XY-88141-10-00
POLE, ANTENNA (AM/FM)
$205.74¢102 869
1
#33
4XY-88146-10-00
CABLE 1
$227.14¢113 569
1
#34
4XY-82139-00-00
TUBE
$9.15¢4 575
1
#35
4XY-88143-10-00
POLE, ANTENNA (CB)
$368.52¢184 263
1
#36
4XY-88147-10-00
CABLE 2
$154.82¢77 413
1
#37
4XY-88144-01-00
BRACKET, ANTENNA
$132.60¢66 300
1
#38
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#39
1BM-H259L-V2-00
WIRE HARNESS ASSY 1 | IPOD
No Disponible
1
#39
4XY-88145-00-00
COVER
$17.95¢8 975
1
#40
4XY-8814A-00-00
SPACER
$11.34¢5 669
1
#41
90464-05188-00
CLAMP
$3.65¢1 825
1
#42
90464-15195-00
CLAMP
$3.30¢1 650
1
#43
4XY-88168-00-00
REMOTE CONTROL 1
$1273.74¢636 869
1
#44
4XY-88196-00-00
CORD, HEAD SET 1
$137.76¢68 881
1
#45
4XY-88195-01-00
HOLDER, CONNECTOR
$13.45¢6 725
1
#46
4XY-88195-01-00
HOLDER, CONNECTOR
$13.45¢6 725
1
#47
4XY-88186-01-00
CORD, CB
$278.50¢139 250
1
#48
1NL-81965-01-00
CONDENSER, SMOOTHING
$122.95¢61 475
1
#49
4XY-88192-01-00
CORD, EXTENSION
$137.76¢68 881
1
#50
STR-CDCHG-11-00
CABLE, INTERFACE
No Disponible
1
#51
4XY-2839B-10-00
EMBLEM 3D
$85.29¢42 644
1
#52
1BM-H81C0-V2-00
AUDIO SET KIT - IPOD | IPOD
No Disponible
1
#54
1BM-H8146-V0-00
CABLE 8-PIN DIN TO 30-PIN CONNE | IPOD
No Disponible
1
#55
1BM-H81E1-V0-00
AUDIO SET HARDWARE KIT | INCL; WARNING LABEL, HOLDER, ALCOHOL PAD AND TAPE
No Disponible
1
