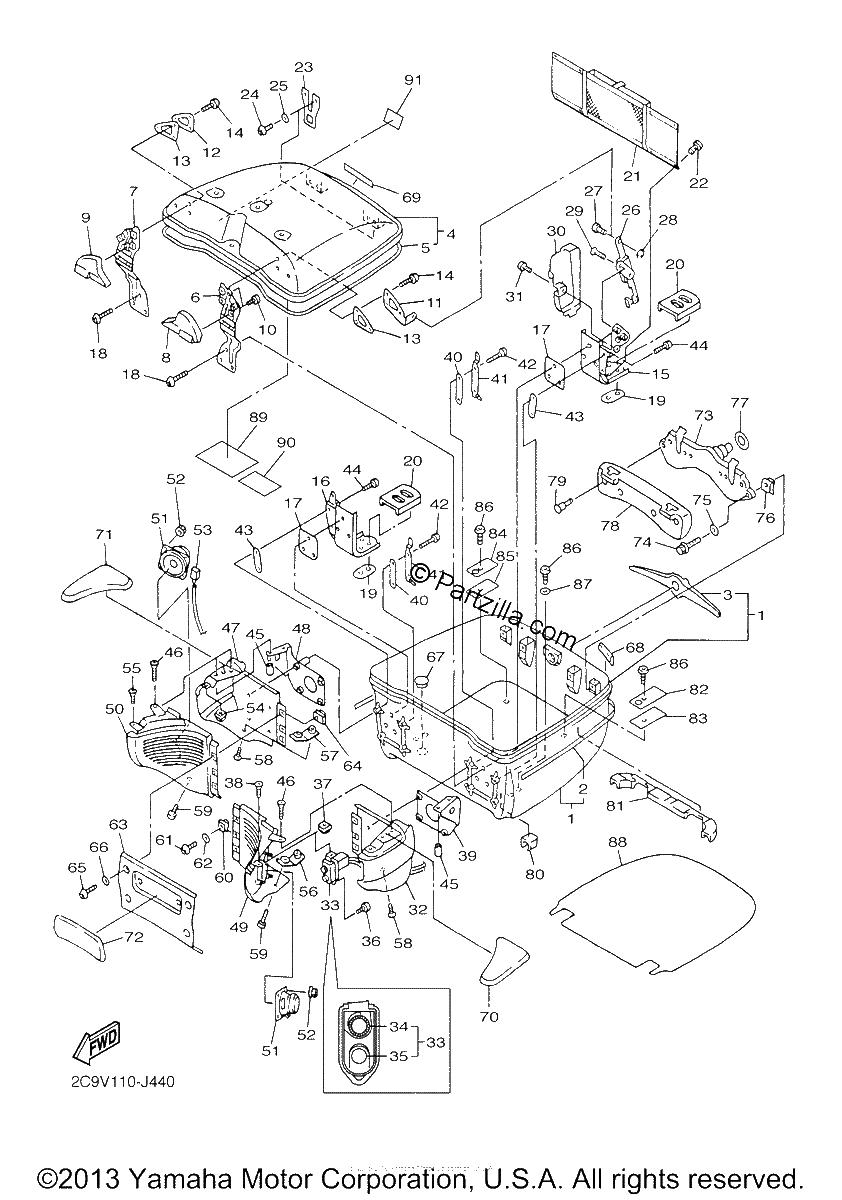

TRAVEL BAG
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TRAVEL TRUNK LOWER SET | VPBC5/DPBMX
$1143.74¢571 869
#2
GRAPHIC SET, TRAVEL TRUNK
No Disponible
#3
EMBLEM
$70.36¢35 181
#4
TRAVEL TRUNK UPPER SET | VPBC5
$698.74¢349 369
#5
SEAL 1
$20.88¢10 438
#6
HINGE 2
$85.81¢42 906
#7
HINGE 4
$85.91¢42 956
#8
COVER, HINGE 1 | VPBC5
$45.38¢22 688
#9
COVER, HINGE 2 | VPBC5
No Disponible
#10
SCREW, TAPPING
$0.45¢225
#11
PLATE 2
$12.58¢6 288
#12
PLATE 3
$6.91¢3 456
#13
PLATE, RUBBER 3
$10.14¢5 069
#14
BOLT, BUTTON HEAD
$3.44¢1 719
#15
BRACKET 5
$90.66¢45 331
#16
BRACKET 6
$69.55¢34 775
#17
PLATE, RUBBER 2
$6.91¢3 456
#18
BOLT, BUTTON HEAD
$3.06¢1 531
#19
PLATE, RUBBER 1
$4.40¢2 200
#20
SEAT 4
$23.81¢11 906
#21
SEAT 3
$323.34¢161 669
#22
RIVET,SPEC'L SHAPE
$8.34¢4 169
#23
HOOK
$34.98¢17 488
#24
BOLT, BUTTON HEAD
$0.51¢256
#25
WASHER, PLATE
$8.09¢4 044
#26
STOPPER, OPEN
$83.09¢41 544
#27
PIN, STOPPER
$3.13¢1 563
#28
CLIP (replaces 93430-04M03-00)
$2.05¢1 025
#29
SCREW, FLAT HEAD
$7.35¢3 675
#30
COVER ASSY
$26.14¢13 069
#31
BOLT, BUTTON HEAD
$7.10¢3 550
#32
BASE, REMOTE CONTROL | VPBC5
$167.43¢83 713
#33
REMOTE CONTROL 1
$796.24¢398 119
#34
KNOB
$28.85¢14 425
#35
BUTTON 1
$28.85¢14 425
#36
SCREW, TAPPING
$0.45¢225
#37
NUT, SPRING
$3.17¢1 588
#38
SCREW, FLAT HEAD
$9.45¢4 725
#39
CORD
$16.91¢8 456
#39
BRACKET 1
$69.59¢34 794
#40
PLATE, RUBBER 8
$5.99¢2 994
#41
PLATE, BOTTOM
$8.60¢4 300
#42
BOLT, BUTTON HEAD
$7.94¢3 969
#43
PLATE, RUBBER 7
$7.72¢3 863
#44
BOLT, BUTTON HEAD
$3.44¢1 719
#45
NUT
$6.78¢3 388
#46
SCREW, FLAT HEAD
$7.03¢3 513
#47
BODY | VPBC5
$167.43¢83 713
#48
BRACKET 2
$67.99¢33 994
#49
GRILLE, SPEAKER 1 | VPBC5
$209.26¢104 631
#50
GRILLE, SPEAKER 2 | VPBC5
$209.26¢104 631
#51
SPEAKER 1
$160.45¢80 225
#52
NUT, FLANGE
$7.35¢3 675
#54
NUT, SPRING
$3.17¢1 588
#55
SCREW, FLAT HEAD
$6.67¢3 338
#56
PLATE,4
$11.69¢5 844
#57
PLATE
$10.65¢5 325
#58
SCREW, COUNTERSUNK
$1.46¢731
#59
SCREW, BIND | FOR CALIFORNIA
$7.35¢3 675
#60
NUT, SPRING
$3.17¢1 588
#61
SCREW, PAN HEAD
$4.65¢2 325
#62
WASHER, PLATE
$0.96¢481
#63
COVER 4 | VPBC5
No Disponible
#64
NUT, SPRING
$3.17¢1 588
#65
BOLT, BUTTON HEAD
$7.94¢3 969
#66
WASHER, PLATE
$7.29¢3 644
#67
PLUG
$4.84¢2 419
#68
SEAL
$7.86¢3 931
#69
EMBLEM, YAMAHA
$5.34¢2 669
#70
SEAT 5
$92.83¢46 413
#71
SEAT 6
$92.91¢46 456
#72
SEAT 7
$39.64¢19 819
#73
LOCK ASSY 1
$394.00¢197 000
#74
BOLT
$2.95¢1 475
#75
WASHER, PLATE
$0.96¢481
#76
NUT, SPRING
$3.17¢1 588
#77
SEAL
$1.84¢919
#78
COVER LOCK ASSY 2
$43.78¢21 888
#79
RIVET
$6.45¢3 225
#80
DAMPER 10
$5.40¢2 700
#81
DAMPER 8
$39.20¢19 600
#82
PLATE 7
$7.55¢3 775
#83
PLATE, RUBBER 9
$4.45¢2 225
#84
PLATE 8
$5.80¢2 900
#85
PLATE, RUBBER 11
$3.57¢1 787
#86
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#87
WASHER, PLATE (6TA)
$0.96¢481
#88
SEAT
$66.11¢33 056
#89
LABEL, CAUTION
$9.64¢4 819
#90
LABEL, TIRE
No Disponible
#91
PLATE, ROUTING 2 | FOR CALIFORNIA
$32.98¢16 488
