MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

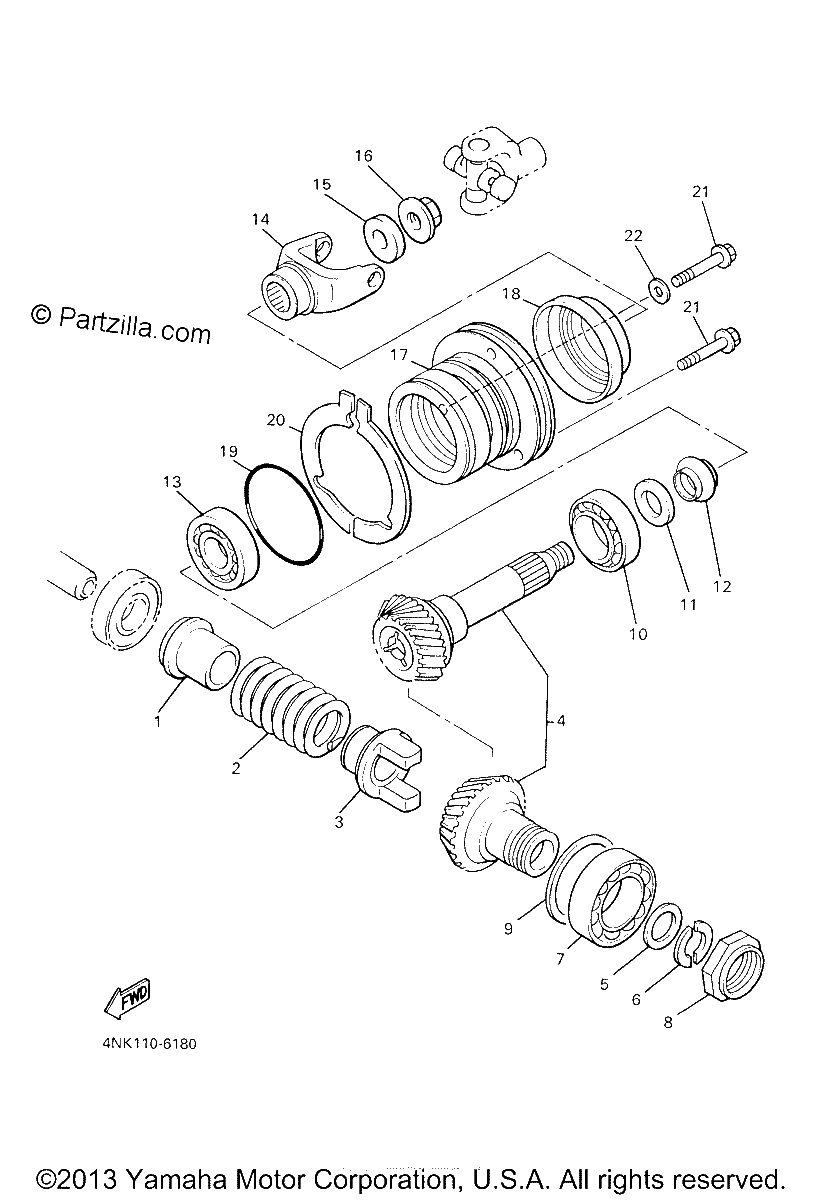

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#0
4X7-17531-00-50
SHIM, PINION (0.50T) | UR
$5.63¢2 813
1
#0
3UF-17531-20-00
SHIM, PINION (0.20T) | UR
$2.86¢1 431
1
#0
4X7-17531-00-40
SHIM, PINION (0.40T) | UR
$5.88¢2 938
1
#0
3UF-17531-50-00
SHIM, PINION (0.50T) | UR
$2.86¢1 431
1
#0
3UF-17531-40-00
SHIM, PINION (0.40T) | UR
$4.60¢2 300
1
#0
3UF-17531-30-00
SHIM, PINION (0.30T) | UR
$5.06¢2 531
1
#0
4X7-17531-00-15
SHIM, PINION (0.15T) | UR
$2.27¢1 138
1
#0
3UF-17531-00-00
SHIM, PINION (0.10T) | UR
$2.86¢1 431
1
#1
2WE-17524-00-00
HOLDER
$27.16¢13 581
1
#2
90501-75638-00
SPRING, COMPRESSION
$36.40¢18 200
1
#3
2WE-17527-00-00
CAM, DRIVEN
$48.06¢24 031
1
#4
26H-W1751-02-00
MIDDLE GEAR COMP.
No Disponible
1
#5
90201-252K4-00
WASHER, PLATE
$27.95¢13 975
1
#6
90209-21281-00
WASHER
$24.93¢12 463
1
#7
93306-20901-00
BEARING
$108.01¢54 006
1
#8
90179-44328-00
NUT
$21.55¢10 775
1
#9
4X7-17531-00-30
SHIM, PINION (0.30T) | UR
$3.77¢1 888
1
#10
93332-00028-00
BEARING
$60.48¢30 238
1
#11
90201-25634-00
WASHER, PLATE
$11.29¢5 644
1
#12
2H7-17571-01-00
SPACER, EXPANSION
$37.99¢18 994
1
#13
93332-00024-00
BEARING
$64.74¢32 369
1
#14
26H-17556-00-00
YOKE, JOINT
$125.36¢62 681
1
#15
90201-166R6-00
WASHER, PLATE
$16.21¢8 106
1
#16
90179-16662-00
NUT
$32.13¢16 063
1
#17
26H-17551-00-00
HOUSING, BEARING
$117.58¢58 788
1
#18
93101-35085-00
OIL SEAL
$27.61¢13 806
1
#19
93210-71360-00
O-RING
$13.70¢6 850
1
#20
3UF-17531-10-00
SHIM, PINION (0.15T) | UR
$4.24¢2 119
1
#21
95817-08030-00
BOLT, FLANGE
$7.34¢3 669
1
#22
90201-08649-00
WASHER,PLATE (replaces 90201-08093-00)
$7.48¢3 738
1
