COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

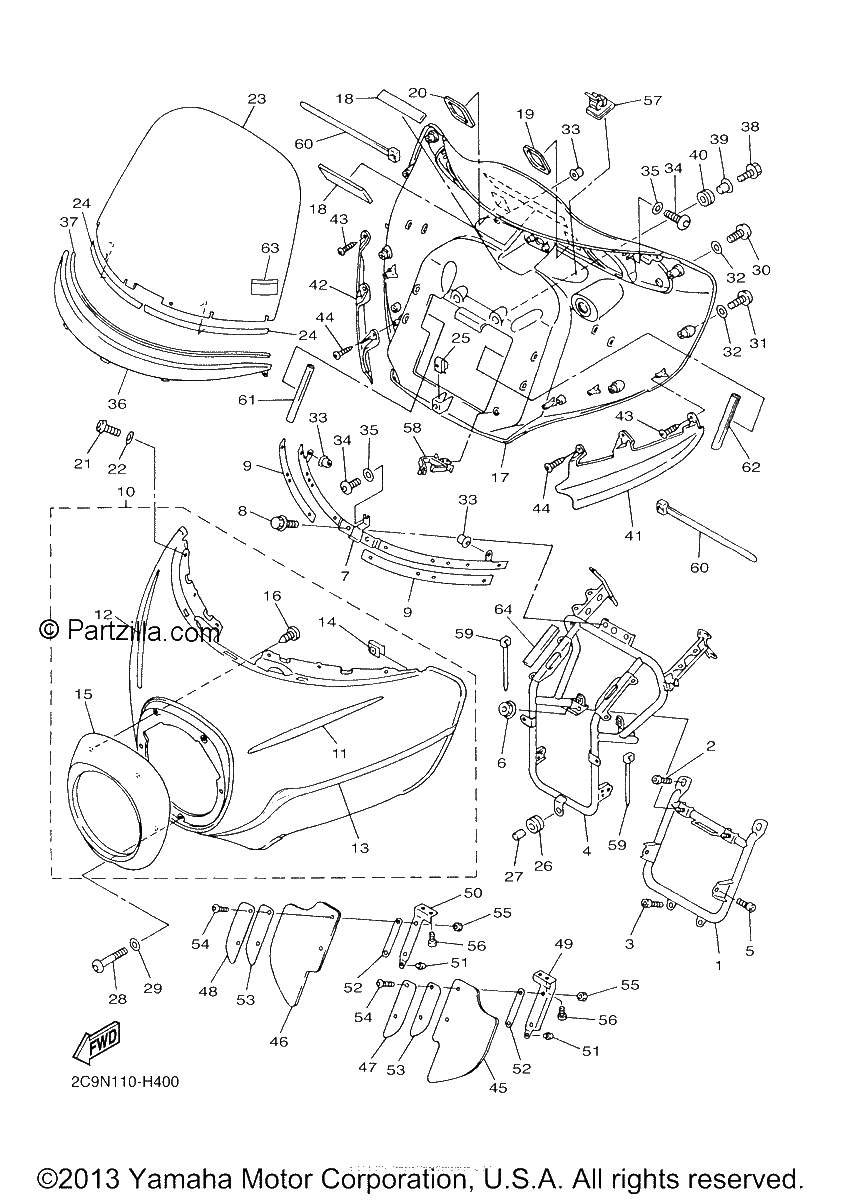

Diagrama de COWLING 1

Repuestos

#1
4XY-2831R-00-00
STAY, MAIN 1
$210.91¢105 456
1
#2
92017-10030-00
BOLT, BUTTON HEAD
$6.00¢3 000
1
#3
91317-08016-00
BOLT (replaces 90110-08053-00)
$7.34¢3 669
1
#4
4XY-28356-00-00
STAY 1
$413.85¢206 925
1
#5
91317-08014-00
BOLT
$6.25¢3 125
1
#6
95707-08500-00
NUT, FLANGE
$1.79¢894
1
#7
4XY-28357-00-00
STAY 2
$160.88¢80 438
1
#8
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#9
4XY-28372-00-00
DAMPER
$8.85¢4 425
1
#10
4XY-Y283G-H0-3Y
BODY, FRONT UPPER 1 | VPBC5/DPBMX
$1712.49¢856 244
1
#11
4XY-2834G-00-00
MOLE 5
$88.05¢44 025
1
#12
4XY-2834H-00-00
MOLE 6
$66.17¢33 088
1
#13
2C9-28390-50-00
GRAPHIC SET, COWLING
$187.53¢93 763
1
#14
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#15
4XY-2835A-00-00
RIM, HEADLIGHT
$298.02¢149 013
1
#16
97707-40014-00
SCREW, TAPPING
$7.39¢3 694
1
#17
2C9-28350-50-00
COWLING ASSY
$988.74¢494 369
1
#18
1AE-2834E-00-00
DAMPER 3
$7.60¢3 800
1
#19
4XY-2834F-00-00
DAMPER
$7.69¢3 844
1
#20
4XY-28267-00-00
DAMPER 5
$6.65¢3 325
1
#21
92017-05018-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#22
90201-057H5-00
WASHER, PLATE
$3.57¢1 787
1
#23
4XY-2837U-01-00
SCREEN
$793.49¢396 744
1
#24
4XY-28307-00-00
SEAL
$41.94¢20 969
1
#25
90183-06023-00
NUT,SPRING
$8.85¢4 425
1
#26
90480-12529-00
GROMMET
$2.09¢1 044
1
#27
90387-067N5-00
COLLAR
$6.15¢3 075
1
#28
92014-06050-00
BOLT, BUTTON HEAD
$2.65¢1 325
1
#29
90202-06007-00
WASHER, PLATE
$2.88¢1 438
1
#30
92014-05035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#31
92014-05025-00
BOLT, BUTTON HEAD
$8.38¢4 188
1
#32
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#33
90179-05523-00
NUT
$6.78¢3 388
1
#34
92017-05012-00
BOLT,BUTTON
$3.19¢1 594
1
#35
90201-057H5-00
WASHER, PLATE
$3.57¢1 787
1
#36
4XY-28345-00-00
MOLE 1
$300.74¢150 369
1
#37
4XY-28371-00-00
DAMPER
$5.10¢2 550
1
#38
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#39
90387-067K8-00
COLLAR
$6.19¢3 094
1
#39
4XY-2837K-00-00
DAMPER 6
$12.10¢6 050
1
#40
90480-16233-00
GROMMET
$8.10¢4 050
1
#41
4XY-2834V-00-00
PROTECTOR 1
$154.51¢77 256
1
#42
4XY-2834W-00-00
PROTECTOR 2
$154.51¢77 256
1
#43
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#44
97707-60016-00
SCREW, TAPPING
$1.25¢625
1
#45
4XY-2835U-00-00
PANEL 1
$73.92¢36 963
1
#46
4XY-2835V-00-00
PANEL 2
$73.92¢36 963
1
#47
4XY-28396-00-00
PLATE 1
$176.42¢88 212
1
#48
4XY-28397-00-00
PLATE 2
$54.55¢27 275
1
#49
4XY-2836A-01-00
BRACKET 1
$24.11¢12 056
1
#50
4XY-2836E-01-00
BRACKET 2
$24.15¢12 075
1
#51
5A8-21639-00-00
DAMPER 2
$9.71¢4 856
1
#52
4XY-2837J-00-00
DAMPER 5
$7.95¢3 975
1
#54
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#55
95380-06700-00
NUT
$7.34¢3 669
1
#56
92014-06010-00
BOLT, BUTTON HEAD
$6.29¢3 144
1
#57
90464-62085-00
CLAMP
$7.16¢3 581
1
#58
90464-16021-00
CLAMP
$13.38¢6 688
1
#59
1UA-82591-00-00
BAND
$4.91¢2 456
1
#60
90464-20258-00
Clamp
$4.95¢2 475
1
#61
4XY-28347-00-00
MOLE 3
$8.30¢4 150
1
#62
1HX-24188-01-00
MOLD, FUEL TANK
$21.23¢10 613
1
#63
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
#64
4XY-88158-00-00
DAMPER
$0.96¢481
1
