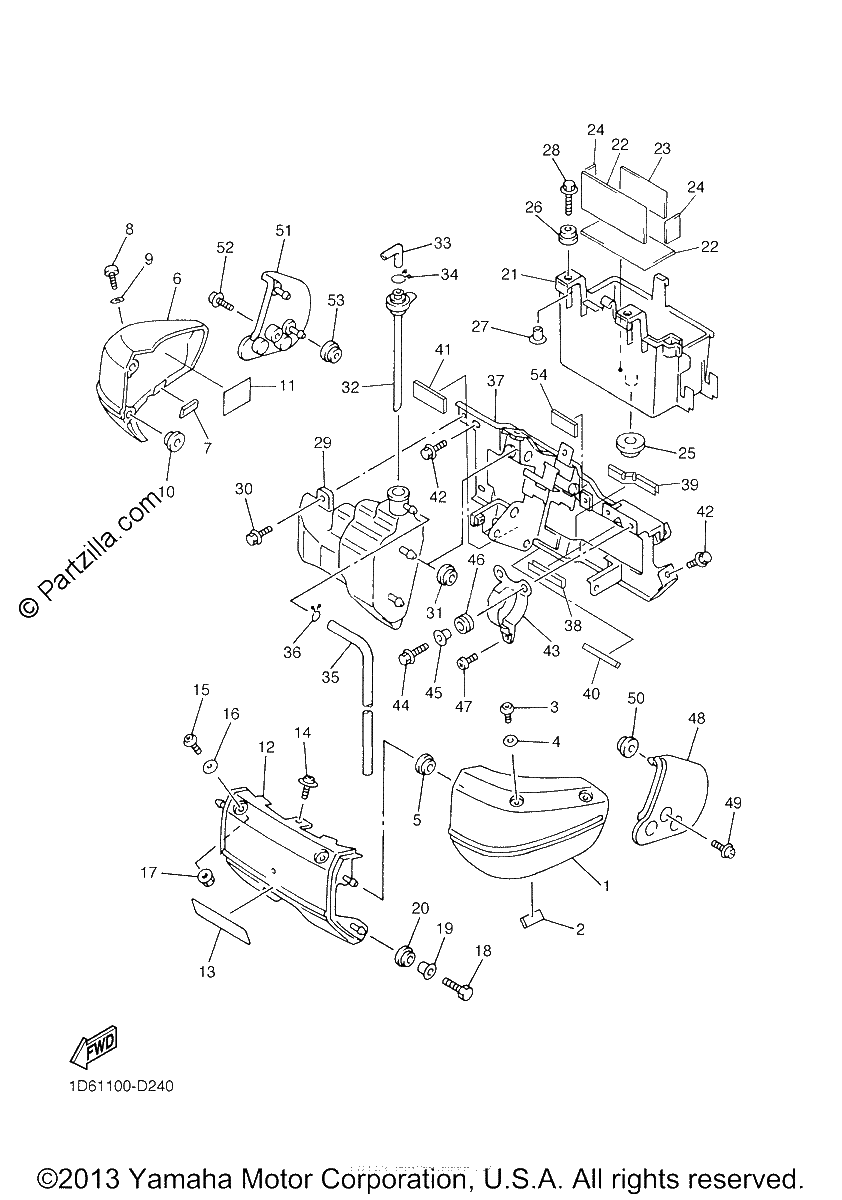

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 | DPBMX
$255.38¢127 688
#2
DAMPER 2
$6.45¢3 225
#3
SCREW,SPEC'L SHAPE
$5.07¢2 537
#4
WASHER, PLATE
$2.20¢1 100
#5
GROMMET
$4.63¢2 313
#6
COVER, SIDE 2 | DPBMX
$255.38¢127 688
#7
DAMPER 2
$6.45¢3 225
#8
SCREW,SPEC'L SHAPE
$5.07¢2 537
#9
WASHER, PLATE
$2.20¢1 100
#10
GROMMET
$4.63¢2 313
#11
SEAL 2
$6.51¢3 256
#12
COVER 9 | DPBMX
No Disponible
#13
PROTECTOR
$7.60¢3 800
#14
SCREW, WITH WASHER
$7.34¢3 669
#15
SCREW,SPEC'L SHAPE
$5.07¢2 537
#16
WASHER, PLATE
$2.20¢1 100
#17
NUT, FLANGE
$0.94¢469
#18
BOLT, HEXAGON (replaces 97027-06020-00)
$3.02¢1 513
#19
COLLAR
$6.15¢3 075
#20
GROMMET
$8.16¢4 081
#21
BOX, BATTERY
$63.24¢31 619
#22
DAMPER
$2.35¢1 175
#23
DAMPER, PLATE 1
$7.86¢3 931
#24
DAMPER
$7.60¢3 800
#25
GROMMET
$5.17¢2 588
#26
GROMMET
$8.16¢4 081
#27
COLLAR
$6.15¢3 075
#28
BOLT,WITH WASHER
$3.67¢1 838
#29
TANK, RECOVERY
$54.83¢27 413
#30
BOLT, WITH WASHER
$6.99¢3 494
#31
GROMMET
$4.63¢2 313
#32
CAP
$21.25¢10 625
#33
ELBOW
$26.14¢13 069
#34
CLIP
$3.13¢1 563
#35
HOSE (L540)
No Disponible
#36
Clip
$2.97¢1 487
#37
PLATE, BRIDGE
$111.15¢55 575
#38
SEAL
$5.29¢2 644
#39
SEAL
No Disponible
#39
GROMMET
$4.63¢2 313
#40
SEAL
$4.55¢2 275
#41
DAMPER
$7.60¢3 800
#42
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
#43
BRACKET, FUEL PUMP
$43.31¢21 656
#44
BOLT, FLANGE
$1.79¢894
#45
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#46
GROMMET | FOR CALIFORNIA
$7.08¢3 538
#47
SCREW, BIND
$7.06¢3 531
#48
COVER, SIDE 3
$9.64¢4 819
#49
SCREW, WITH WASHER
$7.34¢3 669
#50
GROMMET
$4.63¢2 313
#51
COVER, SIDE 4
$21.23¢10 613
#52
SCREW, WITH WASHER
$7.34¢3 669
#54
DAMPER
$7.60¢3 800
