SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

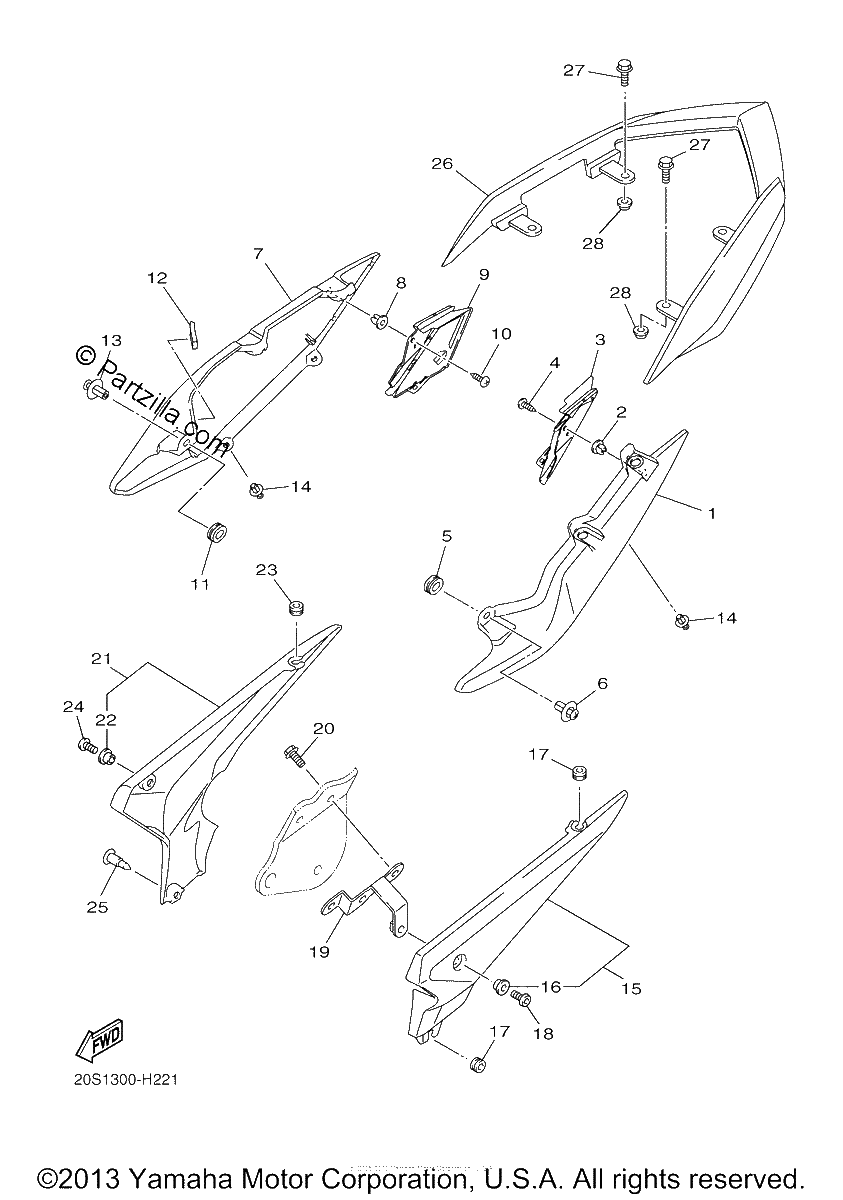

Diagrama de SIDE COVER

Repuestos

#1
20S-21711-00-P3
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$93.56¢46 781
1
#2
90480-08005-00
GROMMET
$7.48¢3 738
1
#3
20S-2163A-00-00
COVER, REAR FENDER 1
$15.40¢7 700
1
#4
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#5
5PW-2174X-00-00
DAMPER
$7.08¢3 538
1
#6
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#7
20S-21721-00-P3
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$108.34¢54 169
1
#8
90480-08005-00
GROMMET
$7.48¢3 738
1
#9
20S-2163E-00-00
COVER, REAR FENDER 2
$13.43¢6 713
1
#10
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#11
5PW-2174X-00-00
DAMPER
$7.08¢3 538
1
#12
4C8-24182-00-00
DAMPER, LOCATING 2
$7.70¢3 850
1
#13
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#14
90269-07077-00
RIVET
$8.25¢4 125
1
#15
20S-21730-00-00
SIDE COVER ASSY 3
$44.63¢22 313
1
#16
90387-06130-00
Collar
$8.63¢4 313
1
#17
90480-10334-00
Grommet
$8.21¢4 106
1
#18
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#19
20S-2172U-00-00
BRKT 7
$17.36¢8 681
1
#20
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#21
20S-21740-00-00
SIDE COVER ASSY 4
$44.63¢22 313
1
#22
90387-06130-00
Collar
$8.63¢4 313
1
#23
90480-10334-00
Grommet
$8.21¢4 106
1
#24
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#25
90269-07008-00
RIVET
$3.02¢1 513
1
#26
20S-24773-00-00
HANDLE, SEAT
$299.66¢149 831
1
#27
92012-08020-00
BOLT, BUTTON HEAD
$2.65¢1 325
1
#28
90387-08089-00
COLLAR
$8.03¢4 013
1
