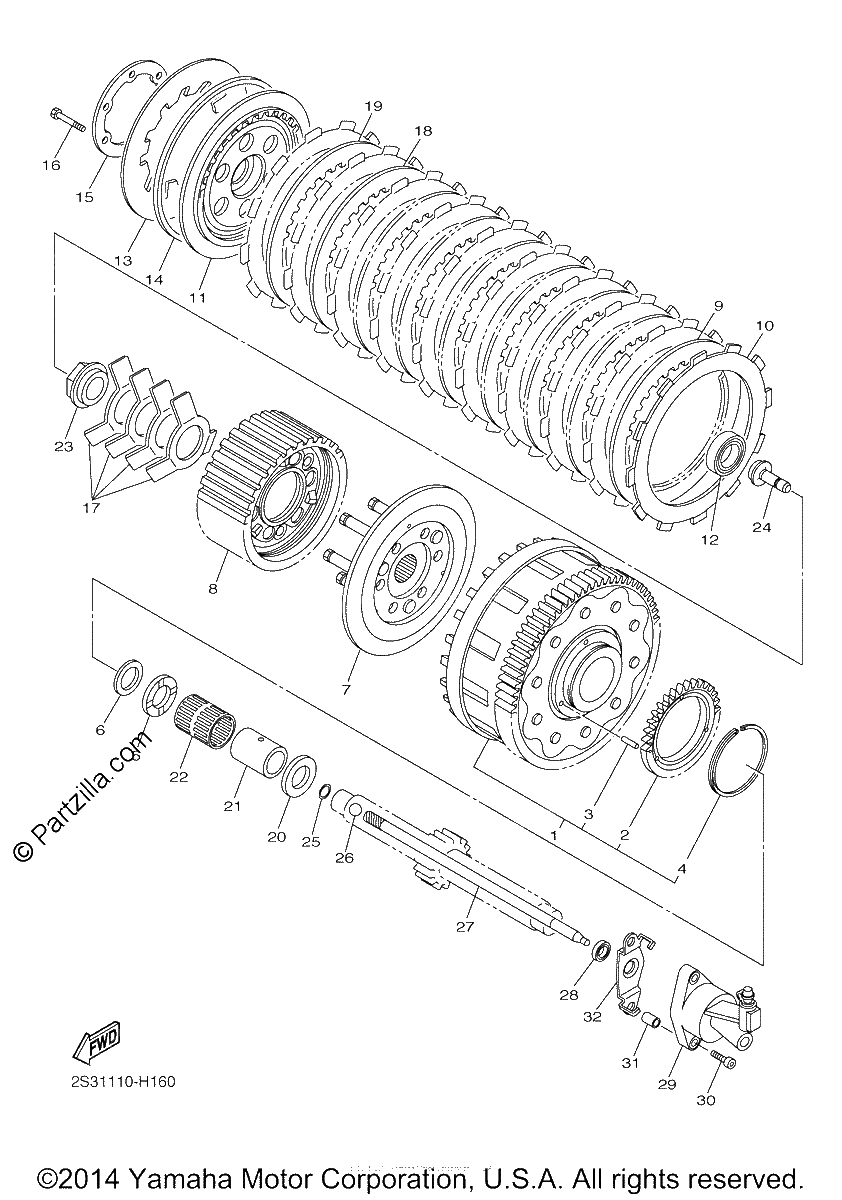

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PRIMARY DRIVEN GEAR
$832.49¢416 244
#2
Gear, Pump Drive
$122.73¢61 363
#3
PIN, DOWEL
$2.38¢1 188
#4
CIRCLIP,OUTER
$9.47¢4 738
#5
PLATE, THRUST 1
$113.35¢56 675
#6
WASHER, CONICAL SPRI
$12.50¢6 250
#7
PRESSURE PLATE ASSY
$445.44¢222 719
#8
CLUTCH BOSS ASSY
$520.60¢260 300
#9
PLATE, CLUTCH 2
$13.54¢6 769
#10
Plate, Friction
$26.69¢13 344
#11
PLATE, PRESSURE 1
$88.94¢44 469
#12
BEARING
$33.26¢16 631
#13
SPRING, CLUTCH 2
$128.05¢64 025
#14
HOUSING, SPRING
$37.81¢18 906
#15
PLATE, PRESSURE 3
$9.53¢4 763
#16
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
#17
SPRING
$18.73¢9 363
#18
PLATE, CLUTCH 2
$13.54¢6 769
#18
PLATE,CLUTCH 1
$24.04¢12 019
#19
PLATE, CLUTCH 1
$28.94¢14 469
#19
PLATE,CLUTCH 1
$24.04¢12 019
#19
PLATE, CLUTCH 2
$13.54¢6 769
#20
PLATE, THRUST 2
$21.65¢10 825
#21
Collar
$30.04¢15 019
#22
BEARING
$37.01¢18 506
#23
Nut, Lock
$89.83¢44 913
#24
ROD,PUSH 1
$31.51¢15 756
#25
O-Ring
$7.94¢3 969
#26
BALL
$7.34¢3 669
#27
ROD, PUSH 2
$51.74¢25 869
#28
Oil Seal
$10.55¢5 275
#29
PUSH LEVER COMP.
$191.57¢95 788
#30
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
#31
PIN, DOWEL
$6.25¢3 125
#32
SHIM, KICK SHAFT
$19.07¢9 538
