FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

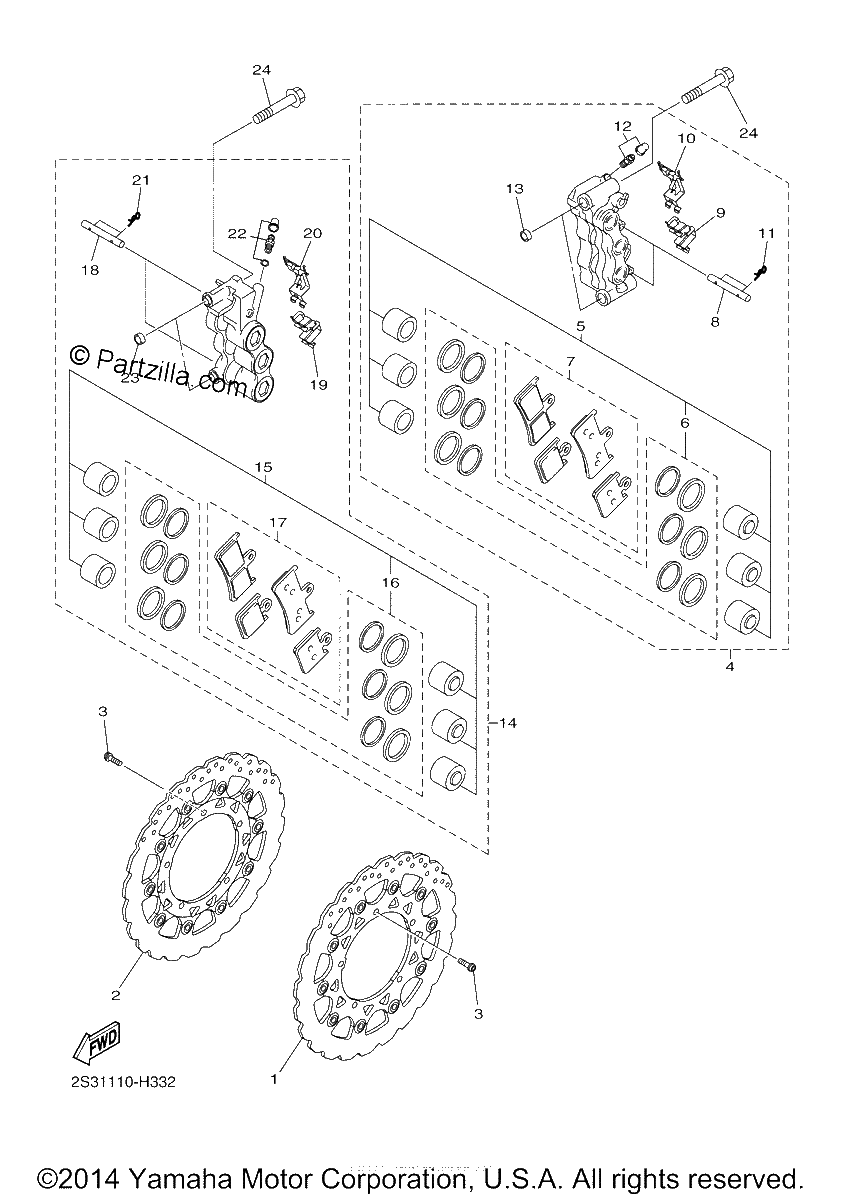

Diagrama de FRONT BRAKE CALIPER

Repuestos

#1
2S3-2581T-00-00
DISK BRAKE ASSY
$433.86¢216 931
1
#2
2S3-2581U-00-00
DISC BRAKE ASSY (RIG
$452.13¢226 063
1
#3
90149-06133-00
SCREW (replaces 90149-06132-00)
$5.84¢2 919
1
#4
4C8-2580T-10-00
CALIPER ASSY (LEFT)
$837.49¢418 744
1
#5
4C8-W0057-00-00
PISTON ASSY, CALIPER
$250.65¢125 325
1
#6
4C8-25803-00-00
CALIPER SEAL KIT (replaces 4C8-W0047-00-00)
$53.03¢26 513
1
#7
4C8-25805-00-00
BRAKE PAD KIT (replaces 4C8-W0045-00-00)
$62.85¢31 425
1
#8
4SV-25924-00-00
PIN, PAD
$44.42¢22 213
1
#9
4C8-25919-00-00
SUPPORT, PAD
$8.86¢4 431
1
#10
2S3-25919-10-00
SUPPORT, PAD
$26.99¢13 494
1
#11
3GM-25925-00-00
CLIP
$11.68¢5 838
1
#12
1J3-W0048-00-00
BLEED SCREW KIT
$31.43¢15 713
1
#13
5VY-2583B-00-00
PIN, KNOCK
$17.79¢8 894
1
#14
2S3-2580U-00-00
CALIPER ASSY (RIGHT)
$657.49¢328 744
1
#15
4C8-W0057-00-00
PISTON ASSY, CALIPER
$250.65¢125 325
1
#16
4C8-25803-00-00
CALIPER SEAL KIT (replaces 4C8-W0047-00-00)
$53.03¢26 513
1
#17
4C8-25805-00-00
BRAKE PAD KIT (replaces 4C8-W0045-00-00)
$62.85¢31 425
1
#18
4SV-25924-00-00
PIN, PAD
$44.42¢22 213
1
#19
4C8-25919-00-00
SUPPORT, PAD
$8.86¢4 431
1
#20
2S3-25919-10-00
SUPPORT, PAD
$26.99¢13 494
1
#21
3GM-25925-00-00
CLIP
$11.68¢5 838
1
#22
5VS-W0048-00-00
BLEED SCREW KIT
$51.50¢25 750
1
#23
5VY-2583B-00-00
PIN, KNOCK
$17.79¢8 894
1
#24
90401-10012-00
BOLT, UNION
$14.14¢7 069
1
