FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

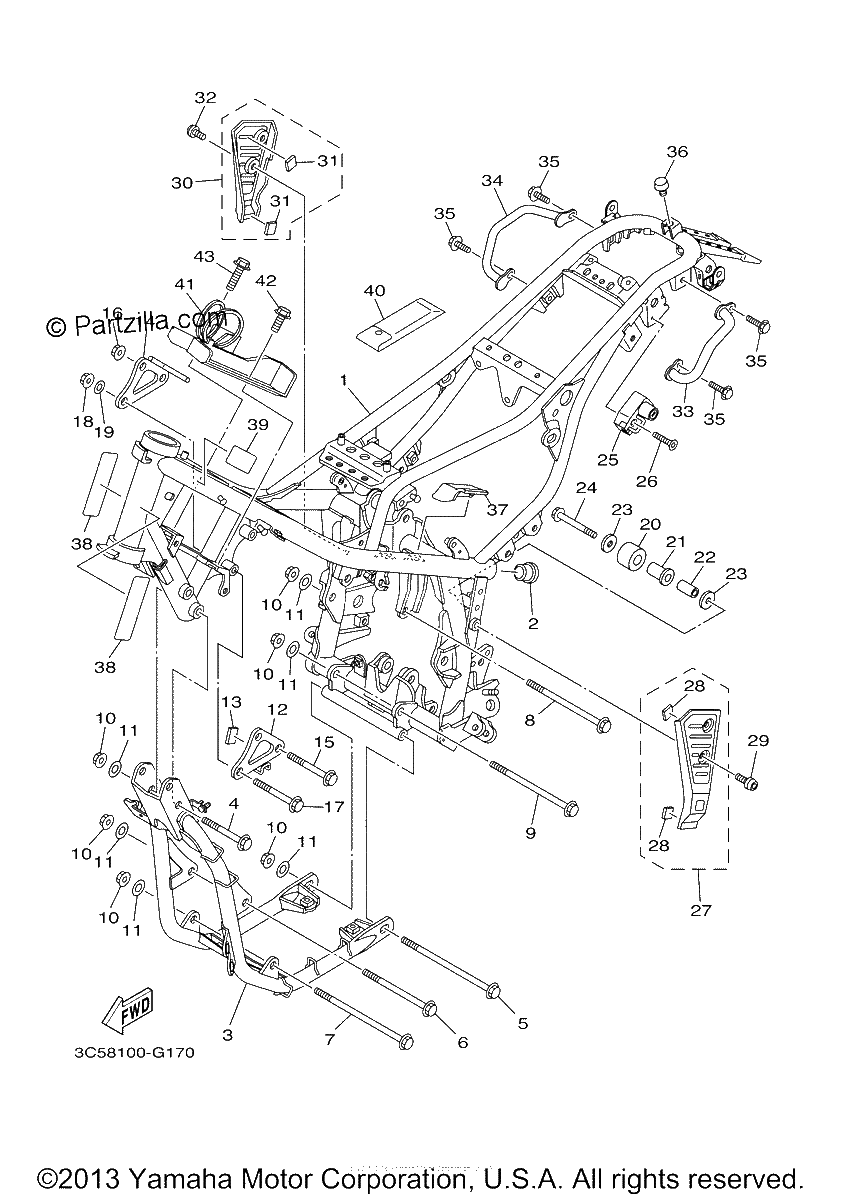

Diagrama de FRAME

Repuestos

#0
3C5-21315-10-00
STAY, ENGINE 2 | FOR CAL
$44.25¢22 126
1
#0
3C5-21110-20-00
FRAME COMP. | FOR CAL
$1773.29¢886 644
1
#0
3C5-21140-10-00
DOWN TUBE COMP.
$369.56¢184 782
1
#1
3C5-21110-30-00
FRAME COMP. | FOR U49
$1773.29¢886 644
1
#2
90338-26004-00
PLUG
$6.96¢3 479
1
#3
3C5-21140-20-00
DOWN TUBE COMP. This item has been discontinued and may not be available. Contact us for more information.
$355.26¢177 629
1
#4
90105-10788-00
BOLT,WASHER BASED
$8.28¢4 140
1
#5
90105-10300-00
BOLT,WASHER BASED
$10.55¢5 273
1
#6
90105-10111-00
BOLT, FLANGE
$10.41¢5 204
1
#7
90105-10118-00
BOLT, FLANGE
$7.50¢3 749
1
#8
90105-10110-00
BOLT, FLANGE
$9.12¢4 560
1
#9
90105-10114-00
BOLT, FLANGE
$11.66¢5 831
1
#10
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#11
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#12
3C5-21315-00-00
STAY, ENGINE 2 | FOR U49
$6.50¢3 249
1
#13
51Y-21639-00-00
DAMPER 2
$5.93¢2 967
1
#14
3C5-21316-00-00
STAY, ENGINE 3
$12.82¢6 411
1
#15
90105-10116-00
BOLT, FLANGE
$3.85¢1 926
1
#16
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#17
90105-08102-00
Bolt, Flange
$5.07¢2 536
1
#18
90179-08674-00
NUT(4KM)
$6.23¢3 117
1
#19
90201-086P8-00
WASHER, plate
$4.77¢2 386
1
#20
10V-22178-00-00
TENSIONER
$7.23¢3 617
1
#21
10V-22184-00-00
Bush
$7.38¢3 691
1
#22
90387-08024-00
Collar
$6.92¢3 461
1
#23
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$6.92¢3 461
1
#24
95027-08045-00
BOLT, FLANGE
$6.88¢3 439
1
#25
4R8-21308-01-00
HELMET HANGER ASSY
$80.04¢40 020
1
#26
90149-06154-00
SCREW,SPEC'L SHAPE (replaces 90151-06018-00)
$7.58¢3 789
1
#27
3C5-2110M-01-00
COVER ASSY 1
$68.40¢34 201
1
#28
5XT-2139X-01-00
Damper
$3.82¢1 909
1
#29
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#30
3C5-2110N-01-00
COVER ASSY 2
$93.12¢46 558
1
#31
5XT-2139X-01-00
Damper
$3.82¢1 909
1
#32
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#33
3C5-21165-00-00
HANDLE, STANDING
$56.04¢28 020
1
#34
3C5-21275-00-00
STAY, REAR
$51.32¢25 662
1
#35
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#36
5RU-24768-00-00
Stopper
$7.54¢3 772
1
#37
3C5-2117N-00-00
COVER 3
$14.95¢7 475
1
#38
5XT-21268-00-00
SEAL
$6.67¢3 335
1
#39
1BF-21686-00-00
PLATE, ROUTING 2 | FOR CAL
No Disponible
1
#40
3C5-28100-00-00
Tool Kit
$56.07¢28 037
1
#41
5XT-21107-00-00
TOOL BOX COMP.
$24.56¢12 282
1
#42
95027-06012-00
BOLT, FLANGE
$3.58¢1 788
1
#43
95027-06035-00
BOLT, SMALL FLANGE
$2.02¢1 012
1
