CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

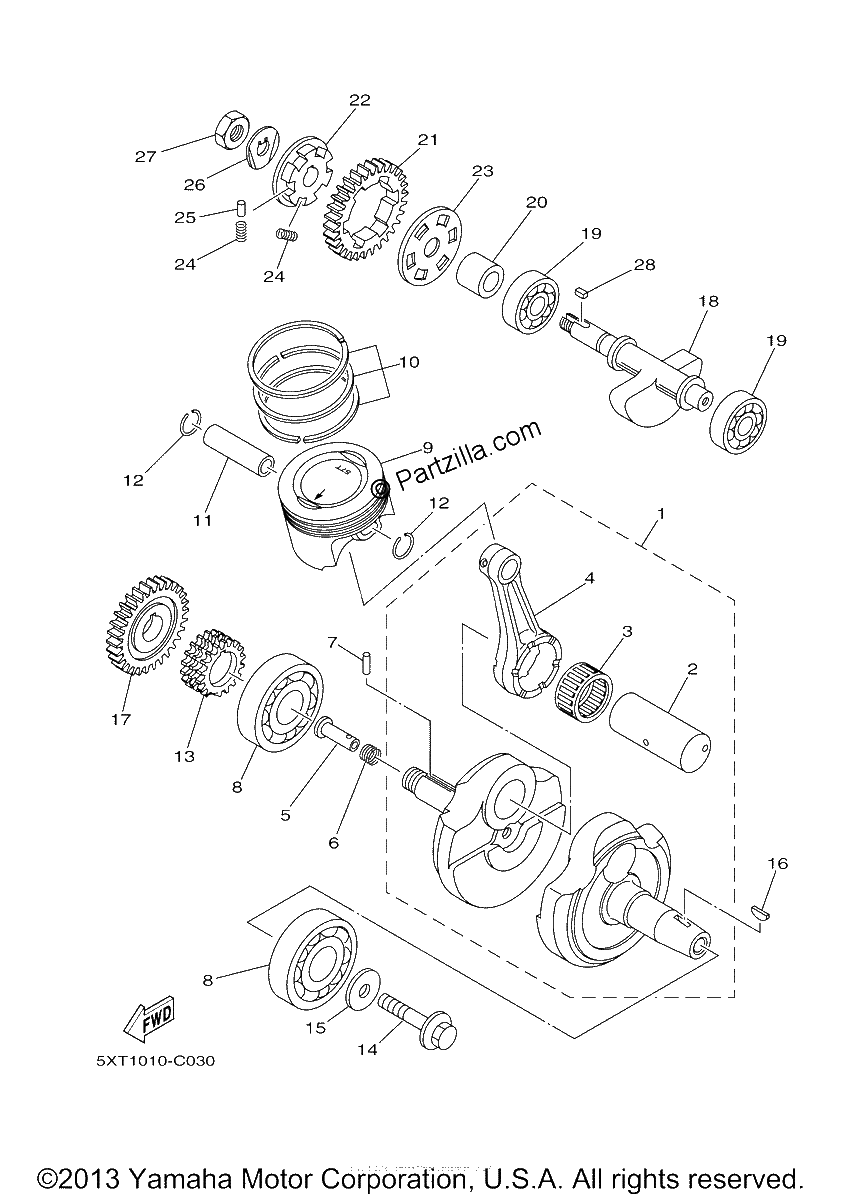

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
5XT-11400-00-00
CRANKSHAFT ASSY
$382.73¢191 363
1
#2
5BP-11681-00-00
PIN, CRANK 1
$27.36¢13 681
1
#3
93310-530J3-00
BEARING,CYL.#10
$70.60¢35 300
1
#4
29U-11651-00-00
ROD,CONNECTING
$137.64¢68 819
1
#5
90240-07105-00
PIN,CLEVIS
$17.00¢8 500
1
#6
90501-07629-00
SPRING,COMPRESSION
$8.45¢4 225
1
#7
93602-13177-00
PIN,DOWEL
$2.61¢1 306
1
#8
93306-37814-00
BEARING
$103.10¢51 550
1
#9
3C5-11631-00-A0
PISTON (STD)
$245.23¢122 613
1
#10
4XV-11603-00-00
PISTON RING SET (S
$44.44¢22 219
1
#11
4H7-11633-00-00
PIN, PISTON
$51.57¢25 787
1
#12
93450-17044-00
CIRCLIP,INNER
$6.25¢3 125
1
#13
5BP-11549-00-00
SPROCKET, CAM CHAIN
$86.05¢43 025
1
#14
90105-10430-00
BOLT,WASHER BASED
$10.41¢5 206
1
#15
90201-105A2-00
WASHER,PLATE (replaces 90201-102R1-00)
$8.22¢4 113
1
#16
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$14.04¢7 019
1
#17
1S4-11536-00-00
GEAR, DRIVE
$114.92¢57 463
1
#18
5XT-11454-00-00
WEIGHT 1
$82.61¢41 306
1
#19
93306-30214-00
BEARING
$49.60¢24 800
1
#20
5XT-11478-00-00
Collar
$12.65¢6 325
1
#21
1S4-11531-00-00
GEAR, BALANCE WEIGHT
$154.26¢77 131
1
#22
5XT-11496-00-00
BOSS, BUFFER
$73.34¢36 669
1
#23
5XT-11533-00-00
PLATE, ABSORBER
$15.40¢7 700
1
#24
90501-22721-00
SPRING,COMPRESSION
$9.55¢4 775
1
#25
93605-10090-00
PIN,DOWEL
$6.63¢3 313
1
#26
90215-12272-00
WASHER,LOCK
$12.38¢6 188
1
#27
90170-12370-00
NUT,HEXAGON
$21.10¢10 550
1
#28
90282-05065-00
KEY,STRAIGHT (replaces 90282-05013-00)
$8.91¢4 456
1
