REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

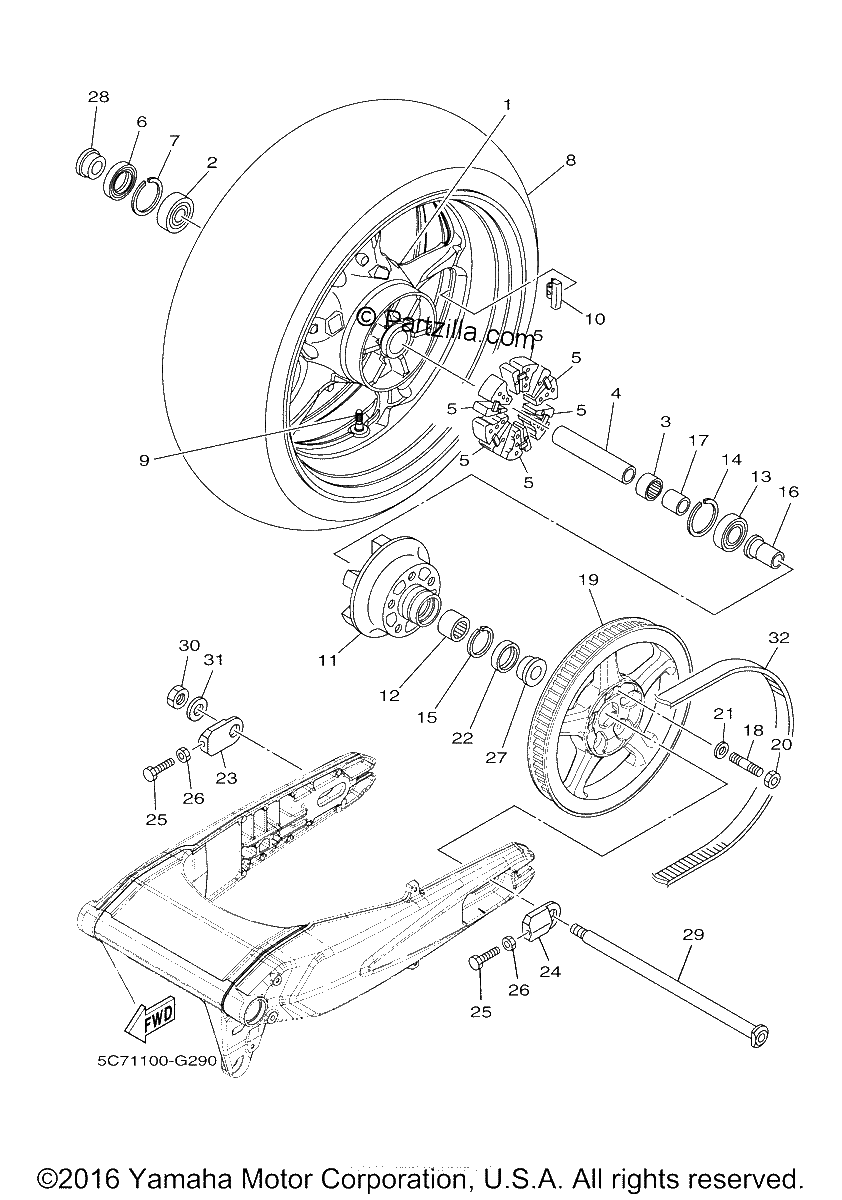

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$18.31¢9 156
1
#0
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$18.51¢9 256
1
#1
5C7-25338-01-33
CAST WHEEL, REAR | YB FOR DYRC4
$1562.46¢781 231
1
#2
93306-30437-00
BEARING
$68.03¢34 013
1
#3
93320-32811-00
BEARING
$47.76¢23 881
1
#4
1D7-25317-00-00
SPACER, BEARING
$26.31¢13 156
1
#5
1D7-25364-00-00
DAMPER
$35.71¢17 856
1
#6
93106-28001-00
OIL SEAL
$12.35¢6 175
1
#7
99009-52500-00
CIRCLIP
$12.79¢6 394
1
#8
94121-18012-00
TIRE | 210/40 R 18/73H
No Disponible
1
#9
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
1
#10
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$47.05¢23 525
1
#11
4WM-25366-00-00
CLUTCH, HUB
$439.76¢219 881
1
#12
93311-32698-00
BEARING
$78.56¢39 281
1
#13
93306-30437-00
BEARING
$68.03¢34 013
1
#14
99009-52500-00
CIRCLIP
$12.79¢6 394
1
#15
93450-35163-00
CIRCLIP
$3.04¢1 519
1
#16
4WM-25376-00-00
COLLAR, WHEEL
$46.63¢23 313
1
#17
1D7-25383-00-00
COLLAR, WHEEL
$62.41¢31 206
1
#18
95617-12630-00
BOLT, STUD
$10.85¢5 425
1
#19
5C7-25466-11-00
SPROCKET, DRIVEN (66T)
$1144.99¢572 494
1
#20
95614-12100-00
NUT, U
$4.86¢2 431
1
#21
90201-126A7-00
WASHER, PLATE
$7.48¢3 738
1
#22
93106-30004-00
OIL SEAL
$13.08¢6 538
1
#23
1D7-25388-00-00
PULLER, CHAIN 1
$100.11¢50 056
1
#24
1D7-25389-00-00
PULLER, CHAIN 2
$116.10¢58 050
1
#25
90101-08012-00
BOLT
$6.57¢3 287
1
#26
95333-08600-00
NUT
$3.81¢1 906
1
#27
90387-202X9-00
COLLAR
$34.89¢17 444
1
#28
90387-20033-00
COLLAR
$37.05¢18 525
1
#29
1D7-25381-00-00
AXLE, WHEEL
$128.79¢64 394
1
#30
90185-18009-00
NUT, SELF-LOCKING
$18.90¢9 450
1
#31
90201-18620-00
WASHER, PLATE
$4.63¢2 313
1
#32
5C7-46241-00-00
V-BELT
$495.56¢247 781
1
