INTAKE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

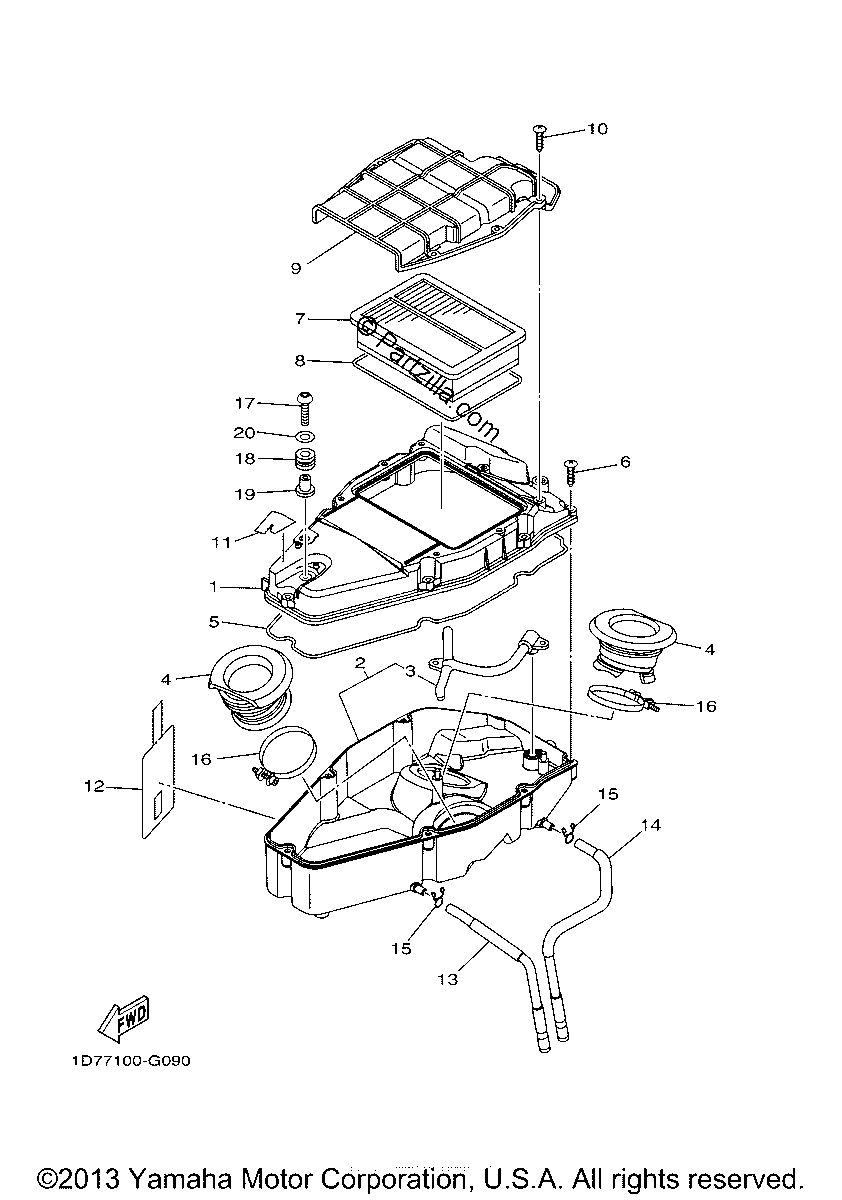

Diagrama de INTAKE 2

Repuestos

#1
1D7-14431-00-00
SILENCER, INTAKE 1
$37.20¢18 600
1
#2
1D7-W1443-00-00
SILENCER, INNER SET
$75.38¢37 688
1
#3
1D7-14419-00-00
PIPE
$33.92¢16 963
1
#4
1D7-14453-00-00
JOINT, AIR CLEANER 1
$31.26¢15 631
1
#5
51Y-14462-00-00
SEAL (replaces 5XT-14452-00-00)
$20.31¢10 156
1
#6
97707-50030-00
SCREW, TAPPING
$7.84¢3 919
1
#7
1D7-14461-00-00
ELEMENT, AIR CLEANER 2
$25.07¢12 538
1
#8
1D7-14452-00-00
SEAL
$8.03¢4 013
1
#9
1D7-14412-00-00
CAP, CLEANER CASE 1
$18.90¢9 450
1
#10
90167-05078-00
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
1
#11
1D7-14425-00-00
DAMPER 1
$5.21¢2 606
1
#12
1D7-14417-00-00
COVER 1
$9.71¢4 856
1
#13
1D7-1443E-00-00
PIPE, DRAIN
$51.14¢25 569
1
#14
1D7-1443G-00-00
PIPE, DRAIN 2
$62.60¢31 300
1
#15
90467-090A2-00
Clip
$2.97¢1 487
1
#16
90450-56001-00
HOSE CLAMP ASSY
$17.59¢8 794
1
#17
92017-06025-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#18
90480-14023-00
GROMMET
$5.81¢2 906
1
#19
90387-07391-00
COLLAR
$9.22¢4 613
1
#20
90201-06066-00
WASHER, PLATE
$8.65¢4 325
1
