FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

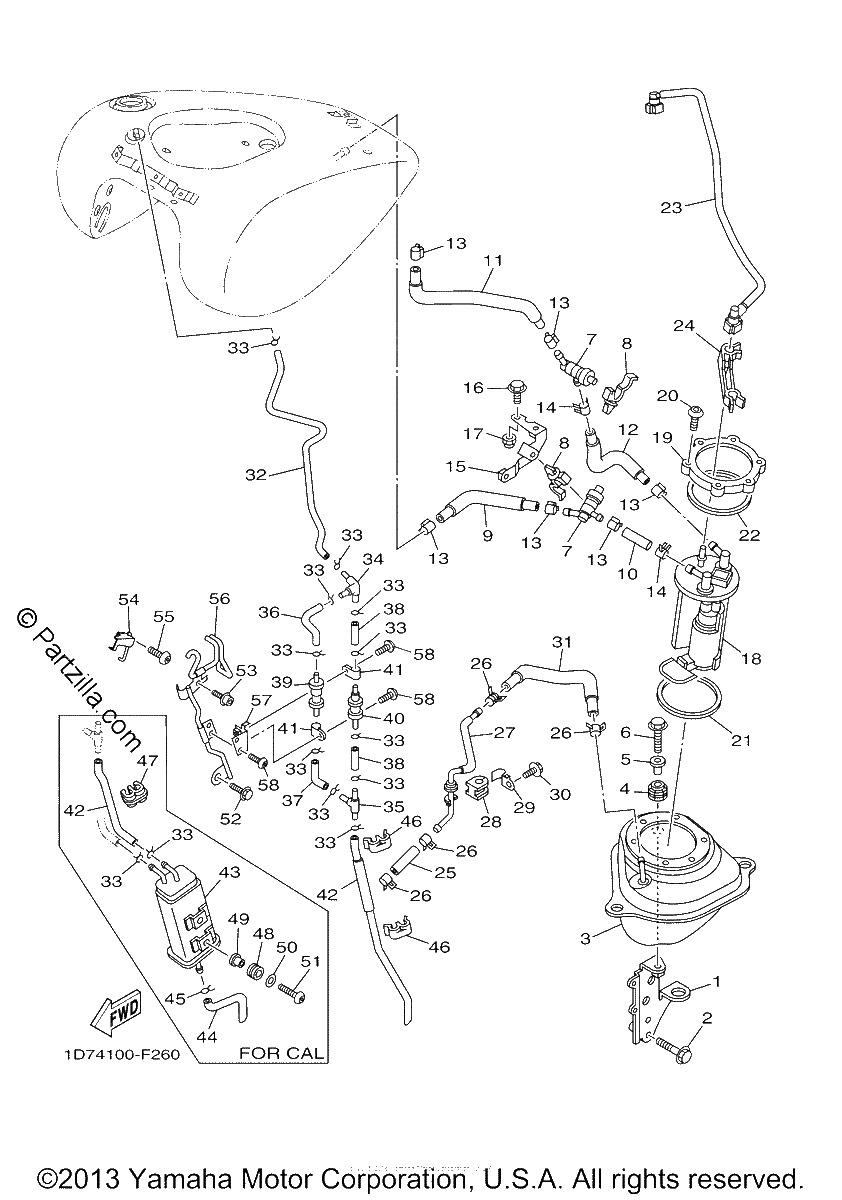

Diagrama de FUEL TANK 2

Repuestos

#0
1D7-24324-10-00
PIPE 13 | FOR CAL
$54.02¢27 008
1
#1
1D7-2172E-00-00
STAY, SIDE COVER 1
$44.65¢22 327
1
#2
95027-08055-00
BOLT, FLANGE
$5.40¢2 702
1
#3
1D7-24280-00-00
SUB FUEL TANK
$481.18¢240 592
1
#4
1D7-24185-00-00
DAMPER, LOCATING 5
$3.93¢1 967
1
#5
90387-0614M-00
COLLAR
$9.04¢4 520
1
#6
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
1
#7
1D7-24305-00-00
FUEL PIPE JOINT COMP. 2
$147.04¢73 520
1
#8
90464-20010-00
CLAMP
$2.37¢1 185
1
#9
5C7-24311-00-00
PIPE, FUEL 1
$65.41¢32 706
1
#10
5C7-24312-00-00
PIPE 2
$12.93¢6 463
1
#11
5C7-24313-00-00
PIPE 3
$65.64¢32 821
1
#12
5C7-24314-00-00
PIPE 4
$79.21¢39 606
1
#13
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#14
90467-16009-00
CLIP
$5.95¢2 973
1
#15
1D7-2419F-00-00
BRACKET, CANISTOR
$32.06¢16 031
1
#16
90119-05004-00
BOLT, WITH WASHER
$5.88¢2 938
1
#17
95307-05800-00
NUT
$6.36¢3 180
1
#18
1D7-13907-00-00
FUEL PUMP COMP.
$713.46¢356 730
1
#19
5PX-24491-00-00
BRACKET, FUEL PUMP
$87.47¢43 735
1
#20
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#21
5PX-24486-00-00
O-RING
$12.60¢6 302
1
#22
5PX-24145-00-00
PLATE, DAMPER
$28.15¢14 076
1
#23
1D7-13971-00-00
PIPE, FUEL 1
$98.29¢49 145
1
#24
90464-15004-00
CLAMP
$7.98¢3 991
1
#25
5C7-13973-00-00
PIPE, FUEL 3
$7.03¢3 513
1
#26
90467-13133-00
CLIP(3YX) (replaces 90467-13083-00)
$5.77¢2 886
1
#27
1D7-14295-00-00
PIPE, FUEL
$62.19¢31 096
1
#28
5PX-14435-00-00
GROMMET
$7.99¢3 996
1
#29
5PX-14261-01-00
HOLDER
$4.83¢2 415
1
#30
95027-06010-00
BOLT,FLANGE(4MY)
$2.71¢1 357
1
#31
5C7-13974-00-00
PIPE, FUEL 4
$67.69¢33 845
1
#32
1D7-24316-20-00
PIPE 6
$70.72¢35 363
1
#33
90467-09002-00
Clip
$2.08¢1 041
1
#34
90413-06002-00
WAY 3
$21.08¢10 540
1
#35
90413-06031-00
WAY 3 | FOR CAL
$9.30¢4 652
1
#36
1D7-24317-20-00
PIPE 7
$19.01¢9 505
1
#37
1D7-24321-10-00
PIPE 10
$16.36¢8 182
1
#38
1D7-24322-10-00
PIPE 11
$4.73¢2 363
1
#39
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
1
#39
91314-06014-00
BOLT, HEXAGON SOCKET HEAD
$3.86¢1 932
1
#40
4WM-24180-00-00
ROLL OVER VALVE ASSY
$25.04¢12 518
1
#41
90464-15014-00
Clamp
$2.16¢1 081
1
#42
1D7-24317-00-00
PIPE 7 | FOR U49
$53.70¢26 853
1
#43
1D7-24170-00-00
CANISTER ASSY | FOR CAL
$331.34¢165 669
1
#44
1D7-24325-00-00
PIPE 14 | FOR CAL
$14.55¢7 274
1
#45
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#46
90464-10M38-00
CLAMP
$8.49¢4 244
1
#47
90464-10M57-00
CLAMP | FOR CALIFORNIA
$5.23¢2 616
1
#48
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#49
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.22¢3 111
1
#50
90201-06023-00
WASHER, PLATE | FOR CALIFORNIA
$4.13¢2 064
1
#51
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$5.96¢2 978
1
#52
90105-06791-00
BOLT, FLANGE
$2.71¢1 357
1
#54
1D7-26328-10-00
GUIDE, CABLE
$52.49¢26 243
1
#55
90111-06146-00
BOLT,HEX. SOCKET BUT
$1.08¢541
1
#56
1D7-26292-00-00
STAY
$134.71¢67 355
1
#57
1D7-26299-00-00
PLATE, MIRROR FITTING 2
$29.29¢14 645
1
#58
92017-05010-00
BOLT, BUTTON HEAD
$6.53¢3 266
1
