FUEL TANK

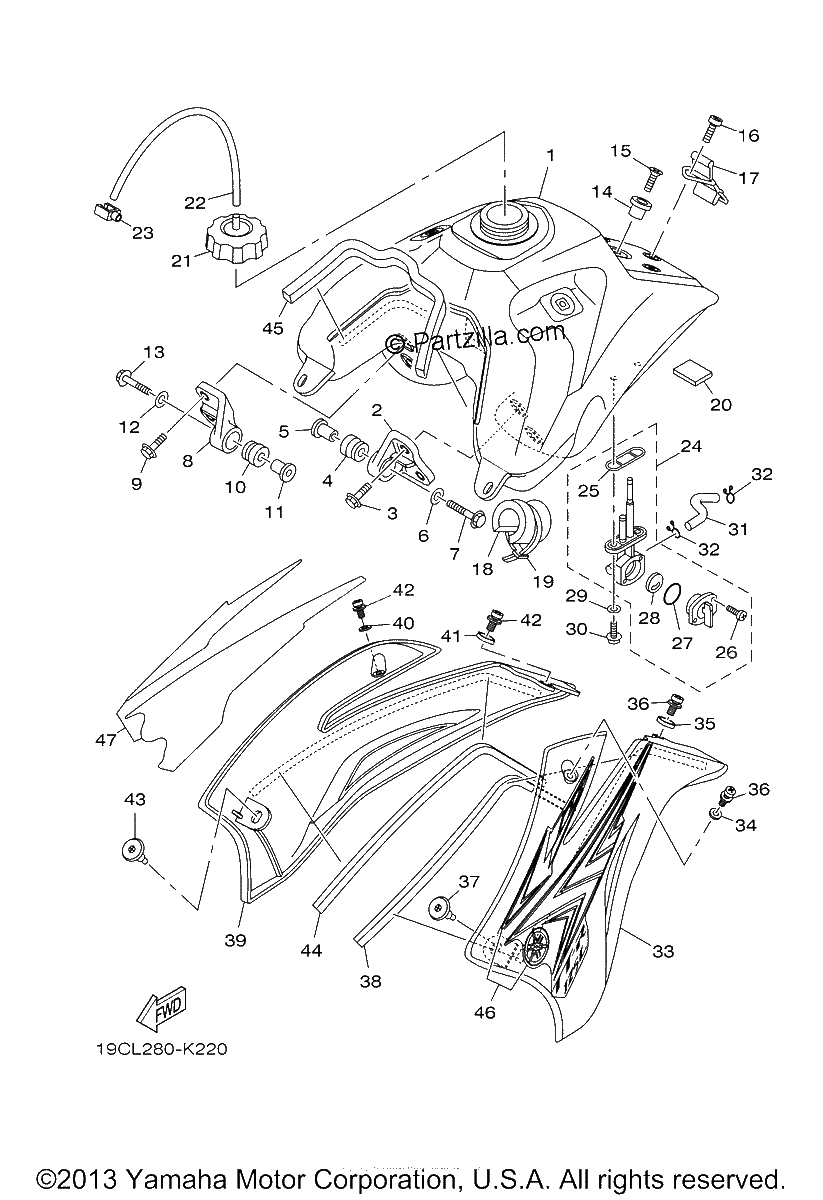

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$412.25¢206 126
#2
TANK BRACKET ASSY
$11.73¢5 865
#3
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#4
Grommet
$9.66¢4 830
#5
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$12.09¢6 043
#6
WASHER, PLATE
$4.88¢2 438
#7
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
#8
TANK BRACKET ASSY
$11.73¢5 865
#9
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#10
Grommet
$9.66¢4 830
#11
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$12.09¢6 043
#12
WASHER, PLATE
$4.88¢2 438
#13
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
#14
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
#15
Screw, Flat Head
$7.31¢3 657
#16
BOLT,SOCKET (replaces 9890M-06016-00)
$7.81¢3 904
#17
BAND,TANK FITTING (replaces 1B2-F4173-00-00)
$20.26¢10 131
#18
DAMPER, side cover
$1.32¢661
#19
CLAMP
$4.77¢2 386
#20
DAMPER 1
$0.31¢155
#21
CAP ASSY
$67.76¢33 879
#22
Pipe, Breather
$10.38¢5 192
#23
Clamp
$7.13¢3 565
#24
FUEL COCK ASSY 1
$37.40¢18 699
#25
GASKET
$12.02¢6 009
#26
SCREW, PAN HEAD
$3.00¢1 501
#27
SEAL, COCK
$7.75¢3 875
#28
VALVE PACKING
$12.71¢6 354
#29
WASHER, PLATE
$1.45¢724
#30
SCREW,SPEC'L SHAPE
$1.79¢897
#31
HOSE
$4.13¢2 064
#32
Clip
$2.74¢1 368
#33
SCOOP, AIR 1
$89.61¢44 804
#34
COLLAR (replaces 90387-10W66-00)
$9.41¢4 703
#35
Collar
$0.56¢282
#36
SCREW, WITH WASHER
$7.01¢3 507
#37
RIVET,SPEC'L SHAPE
$6.55¢3 278
#38
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$10.75¢5 376
#39
SCOOP, AIR 2
$89.61¢44 804
#40
COLLAR (replaces 90387-10W66-00)
$9.41¢4 703
#41
Collar
$0.56¢282
#42
SCREW, WITH WASHER
$7.01¢3 507
#43
RIVET,SPEC'L SHAPE
$6.55¢3 278
#44
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$10.75¢5 376
#45
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$10.75¢5 376
#46
GRAPHIC SET 1
No Disponible
#47
GRAPHIC SET 2
$60.69¢30 343
