CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

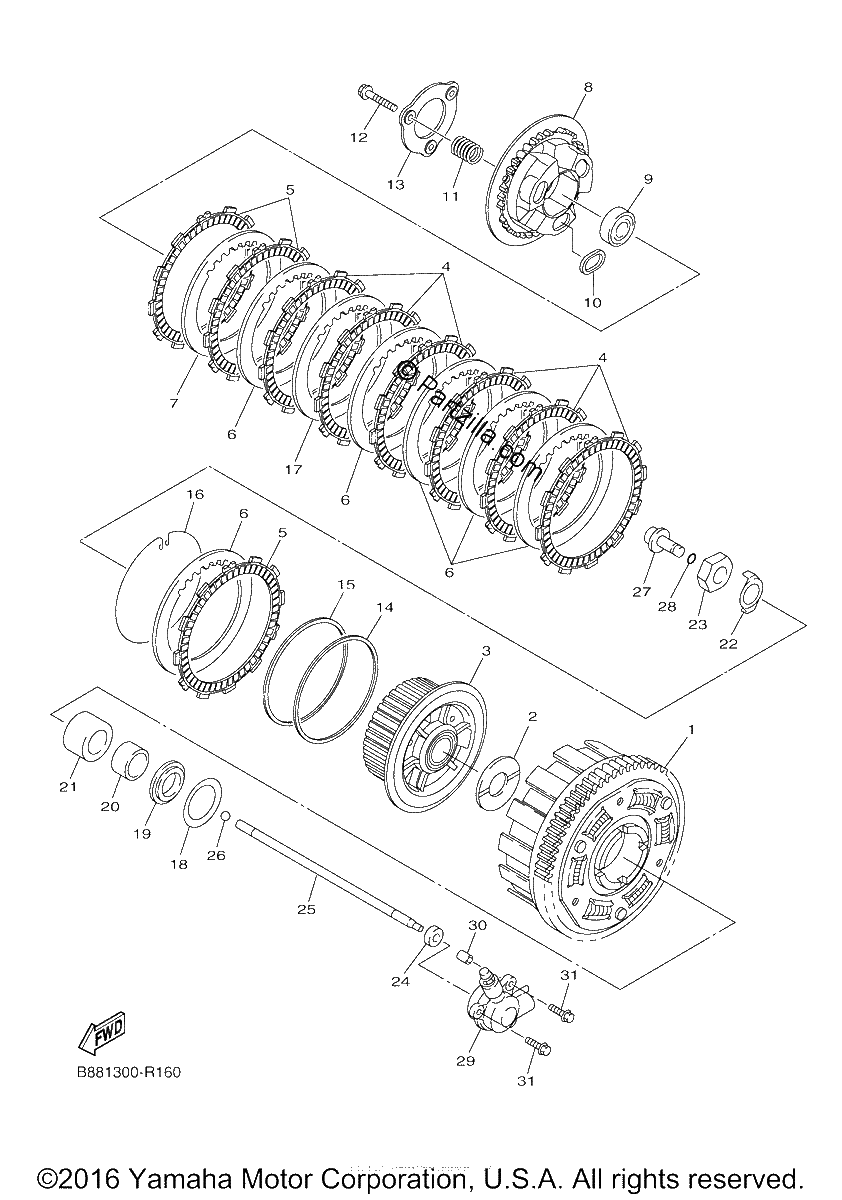

Diagrama de CLUTCH

Repuestos

#0
2H7-16324-00-00
PLATE,CLUTCH 1
$22.11¢11 057
1
#0
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#1
5JW-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$1058.14¢529 069
1
#2
5JW-16154-00-00
PLATE, THRUST 1
$31.46¢15 732
1
#3
B88-16371-00-00
BOSS, CLUTCH
$161.83¢80 914
1
#4
1D7-16321-00-00
PLATE, FRICTION
$22.76¢11 379
1
#5
27D-16331-00-00
PLATE, FRICTION 2
$18.61¢9 304
1
#6
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#7
1D7-16325-00-00
PLATE, CLUTCH 2
$15.80¢7 900
1
#8
B88-16351-00-00
PLATE, PRESSURE 1
$111.64¢55 821
1
#9
93306-00315-00
BEARING
$30.60¢15 301
1
#10
1D7-16384-00-00
PLATE, SEAT
$5.09¢2 547
1
#11
B88-16173-00-00
SPRING, COMPRESSION
$9.12¢4 560
1
#12
2CR-16337-00-00
SCREW, SPRING
$2.74¢1 368
1
#13
1TD-16352-00-00
PLATE, PRESSURE 2
$7.37¢3 686
1
#14
36Y-16384-00-00
PLATE, SEAT
$24.91¢12 455
1
#15
36Y-16383-00-00
SPRING.,CUSHION
$63.84¢31 918
1
#16
2H7-16385-00-00
RING SET
$24.07¢12 035
1
#17
47X-16324-00-00
PLATE, CLUTCH 1
$26.62¢13 311
1
#18
3P6-16587-00-00
SPRING, ABSORBER
$31.62¢15 812
1
#19
3P6-16183-00-00
SPACER 3
$43.98¢21 988
1
#20
90387-28002-00
COLLAR
$28.28¢14 139
1
#21
B88-16181-00-00
SPACER 1
$55.11¢27 554
1
#22
90215-25218-00
WASHER, LOCK
$8.83¢4 416
1
#23
90170-20323-00
NUT
$21.34¢10 672
1
#24
93109-08061-00
OIL SEAL
$6.22¢3 111
1
#25
3P6-16357-00-00
ROD, PUSH 2
$43.68¢21 838
1
#26
93511-32027-00
BALL
$6.75¢3 375
1
#27
4KG-16356-00-00
ROD,PUSH 1
$28.99¢14 496
1
#28
93210-06632-00
O-Ring
$7.30¢3 651
1
#29
5JW-16381-00-00
PUSH LEVER COMP.
$261.76¢130 881
1
#30
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#31
95024-06025-00
Bolt, Flange
$2.82¢1 409
1
