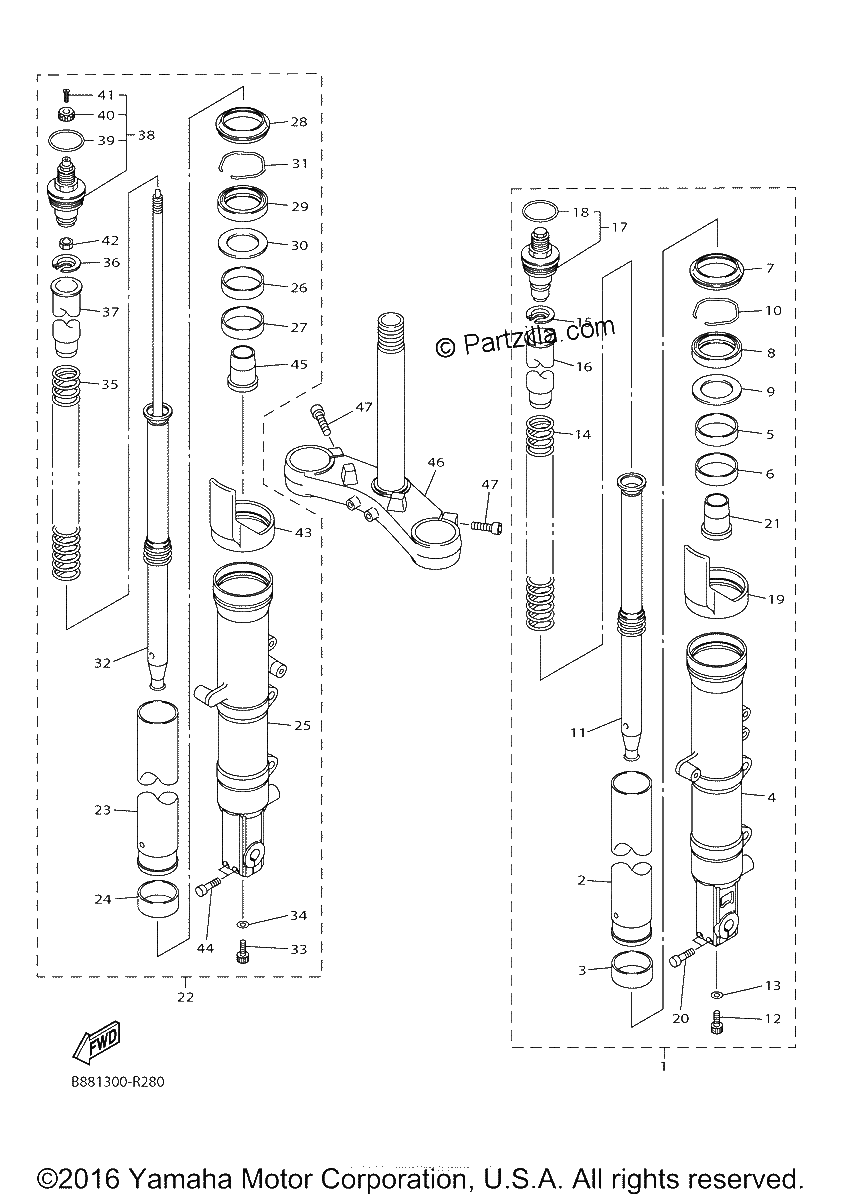

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$839.99¢419 994
#2
INNER TUBE COMP. 1
$196.14¢98 069
#3
PISTON, FRONT FORK
$24.64¢12 319
#4
TUBE, OUTER (L.H)
$408.20¢204 100
#5
METAL, SLIDE 1
$25.02¢12 513
#6
METAL, SLIDE 2
$21.44¢10 719
#7
SEAL, DUST
$17.01¢8 506
#8
OIL SEAL
$19.95¢9 975
#9
SEAT 1
$8.45¢4 225
#10
RING, SNAP
$1.44¢719
#11
CYLINDER COMP., 2
$227.90¢113 950
#12
BOLT, HEXAGON SOCKET HEAD
$24.00¢12 000
#13
GASKET | (KYB)
$17.09¢8 544
#14
SPRING, FRONT FORK
$38.82¢19 412
#15
SEAT, SPRING UPPER
$11.61¢5 806
#16
SPACER
$23.52¢11 763
#17
BOLT, CAP
$67.33¢33 663
#18
O-RING
$4.49¢2 244
#19
COVER
$18.13¢9 063
#20
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
#21
SPINDLE, TAPER
$42.40¢21 200
#22
FRONT FORK ASSY (R.H)
$839.99¢419 994
#23
INNER TUBE COMP. 1
$196.14¢98 069
#24
PISTON, FRONT FORK
$24.64¢12 319
#25
OUTER TUBE COMP. (R.H)
$438.39¢219 194
#26
METAL, SLIDE 1
$25.02¢12 513
#27
METAL, SLIDE 2
$21.44¢10 719
#28
SEAL, DUST
$17.01¢8 506
#29
OIL SEAL
$19.95¢9 975
#30
SEAT 1
$8.45¢4 225
#31
RING, SNAP
$1.44¢719
#32
CYLINDER COMP., 3
$225.73¢112 863
#33
BOLT, HEXAGON SOCKET HEAD
$24.00¢12 000
#34
GASKET | (KYB)
$17.09¢8 544
#35
SPRING, FRONT FORK
$38.82¢19 412
#36
SEAT, SPRING UPPER
$11.61¢5 806
#37
SPACER
$23.52¢11 763
#38
BOLT, CAP 2
$113.30¢56 650
#39
O-RING
$4.49¢2 244
#40
CAP
$11.46¢5 731
#41
SCREW
$1.59¢794
#42
NUT
$4.15¢2 075
#43
COVER
$18.13¢9 063
#44
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
#45
SPINDLE, TAPER
$42.40¢21 200
#46
UNDER BRACKET COMP.
$549.75¢274 875
#47
BOLT
$7.43¢3 713
