SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

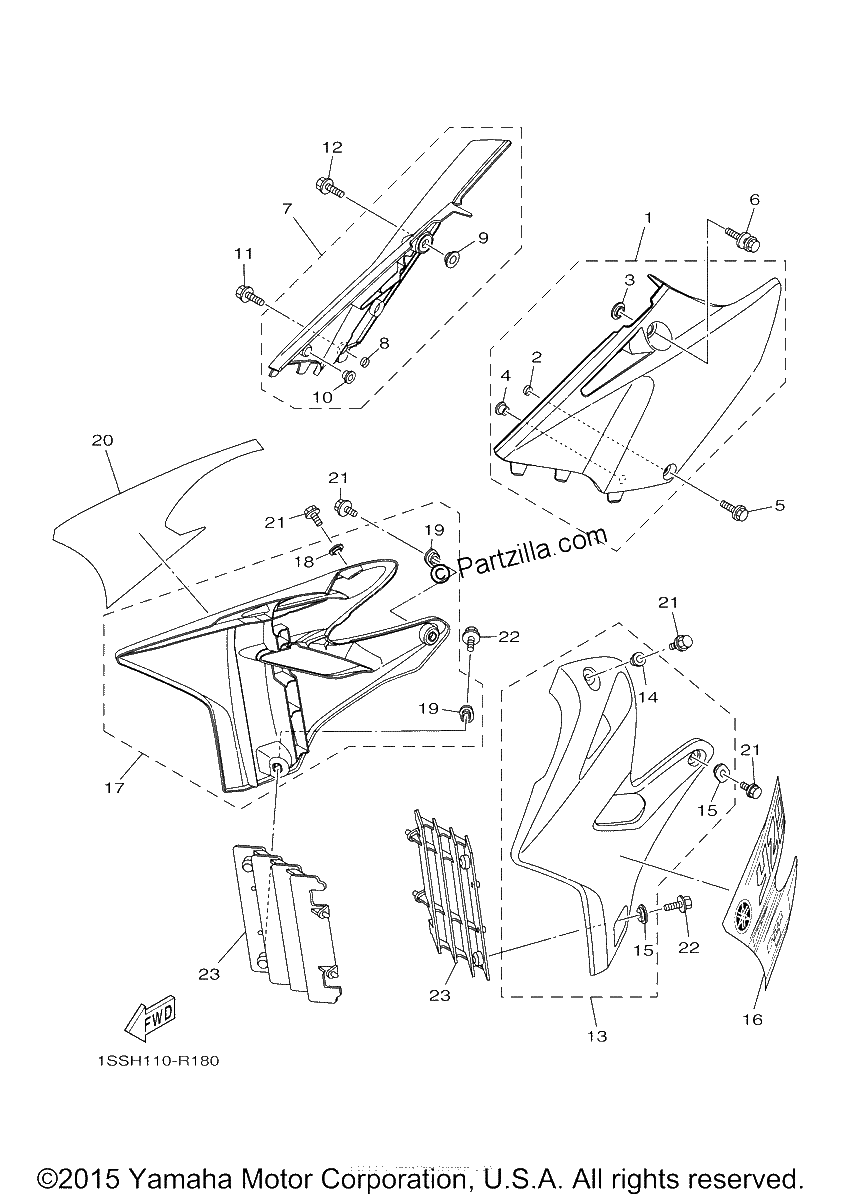

Diagrama de SIDE COVER

Repuestos

#1
1SS-21710-00-00
SIDE COVER ASSY 1
$28.79¢14 394
1
#2
90387-060U2-00
COLLAR
$9.45¢4 725
1
#3
5BE-21749-00-00
Collar
$5.72¢2 863
1
#4
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#5
90109-06304-00
BOLT
$1.07¢538
1
#6
90119-08095-00
BOLT, WITH WASHER
$7.43¢3 713
1
#7
1SS-21720-00-00
SIDE COVER ASSY 2
$27.85¢13 925
1
#8
90387-060U2-00
COLLAR
$9.45¢4 725
1
#9
5BE-21749-00-00
Collar
$5.72¢2 863
1
#10
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#11
90109-06304-00
BOLT
$1.07¢538
1
#12
90119-08095-00
BOLT, WITH WASHER
$7.43¢3 713
1
#13
1SS-21730-00-00
SIDE COVER ASSY 3
$33.09¢16 544
1
#14
90387-06009-00
COLLAR
$9.41¢4 706
1
#15
5TA-21749-00-00
Collar
$11.49¢5 744
1
#16
1SS-2173E-40-00
GRAPHIC 1
$62.65¢31 325
1
#17
1SS-21740-00-00
SIDE COVER ASSY 4
$41.11¢20 556
1
#18
90387-06009-00
COLLAR
$9.41¢4 706
1
#19
5TA-21749-00-00
Collar
$11.49¢5 744
1
#20
1SS-2173F-40-00
GRAPHIC 2
$51.17¢25 588
1
#21
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#22
90159-06021-00
SCREW, WITH WASHER
$3.08¢1 538
1
#23
5NL-2172A-20-00
PANEL 1
$21.92¢10 962
1
